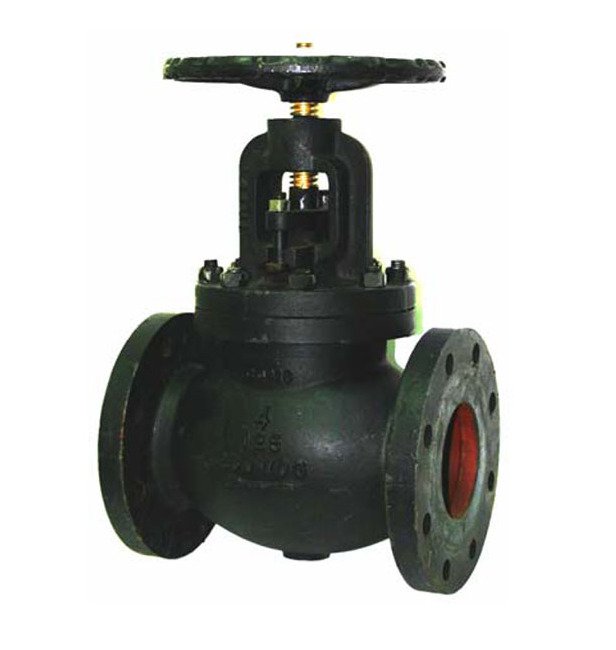

Apollo Model 711F Class 125 Globe Valve - 10 inch, Cast Iron
Apollo Model 711F Class 125 Globe Valve - 10 inch, Cast Iron
SKU:VAL-26e5a7
Premium Apollo Globe Valve for efficient throttling & reliable performance. Compliant with ANSI standards.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Apollo Model 711F Class 125 Globe Valve - 10 inch, Cast Iron
$399.99
Quantity: 1
Claim Your Seller Account
Apollo Model 711F Class 125 Globe Valve - 10 inch, Cast Iron
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Apollo Model 711F Class 125 Globe Valve is a premium choice for plumbing and heating systems, offering superior throttling capabilities with positive shut-off. Crafted with high-quality materials like cast iron, brass, and bronze, this valve ensures durability and reliable performance. Meeting standards such as MSS SP-85 and ASME B16.10, this valve is compatible with ANSI 125# & 150# flanges, making it suitable for a wide range of applications. With a temperature range of -20ºF to 406ºF and a performance rating of 125 psi to 353ºF for saturated steam, this valve is built to withstand demanding conditions.
Product Specifications
Specifications Body Gasket No 10
Graphite
Specifications Body No 1
Cast Iron (ASTM A126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 11
Cast Iron (ASTM A126 CL B)
Specifications Disc No 5
Cast Iron (ASTM A126 CL B)
Specifications Disc Seal Ring No 4
Cast Bronze (ASTM B62)
Specifications Gland Follower Bolts No 9
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 14
Carbon Steel (ASTM A307 B) | Ductile Iron (ASTM A536 65-45-12)
Specifications Gland Follower Nut No 15
Carbon Steel (ASTM A307 B)
Specifications Guide Spindle No 2
Brass (ASTM B16)
Specifications Handwheel No 18
Cast Iron (ASTM A126 CL B)
Specifications Handwheel Nut No 21
Ductile Iron (ASTM A536 65-45-12)
Specifications Identification Plate No 19
Aluminum
Specifications Packing Gland No 13
Cast Brass (ASTM B584)
Specifications Packing No 12
Graphite
Specifications Screw No 17
Carbon Steel (ASTM A307 B)
Specifications Seat Ring No 3
Cast Bronze (ASTM B62)
Specifications Size
10 in
Specifications Stem No 7
Brass (ASTM B16)
Specifications Swivel Nut No 6
Cast Brass (ASTM B584)
Specifications Washer No 20
Carbon Steel (ASTM A307 B)
Specifications Yoke Bushing No 16
Cast Bronze (ASTM B62)
