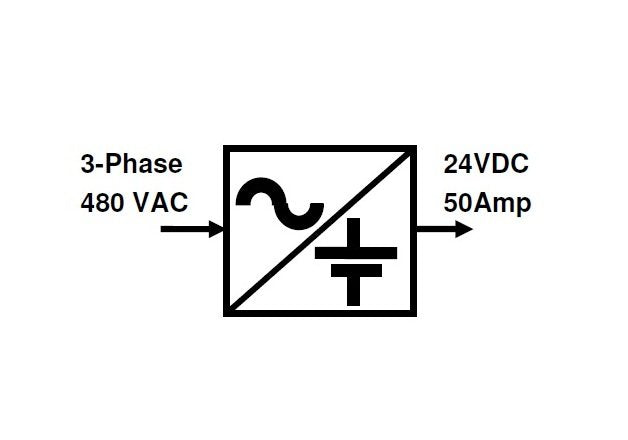

The APS BC-6964 Class I Division II Battery Charger is a precision charging solution designed for hazardous locations, meeting the stringent requirements of Class I Div II equipment. With a 3-phase 60 Hz AC input, it delivers a seamless transition from voltage to current limit operation, ensuring optimum battery charging. This charger features a wide input voltage range, high efficiency, fault detection, and diagnostics, along with protection features like safe shutdown and over-voltage protection. Furthermore, optional communication ports enable remote monitoring, making it an ideal choice for institutional and government buyers in need of reliable and compliant battery charging solutions.
Product Specifications
Additional Information Additional Information
Precision low voltage battery charger designed to operate in hazardous locationsThe BC-6494 AC input voltage is EMI filtered and rectified to a high voltage of approximately 650 VDC, filtered and stored in a DC link capacitor bank. A high frequency IGBT full bridge output inverter is pulse width modulated into the primary of a high frequency step down transformer. The transformer secondary is rectified, filtered and regulated to produce the precision Battery Charger output voltage.Input power is provided by 3-phase AC input connections to an internal fuse block. Output charging power connections consist of two wire 24VDC connection terminals. Two 3/4" NPT conduit openings are provided to accommodate customer wiring.Optional USB and RS485 communication ports are available to provide remote monitoring of the Battery Charger operation.
Environmental Hazard
Class I Division II
Environmental Non Condensing Humidity
0 to 95 %
Environmental Operating Temperature Range
-40 to +55 ºC
Environmental Storage Temperature Range
-40 to +85 ºC
Features Features
Class I Div II enclosureHigh efficiency, high frequency operationSeamless transition from voltage mode to current mode operationComplete Fault Detection and DiagnosticsFull Bridge IGBT Output StageFactory Settable Output Voltage Wide Input Voltage Range - 400 VAC - 550 VAC
Input Alternating Current Nominal Voltage Range
480 V
Input Alternating Current Operating Range
432 to 530 V
Input Frequency
60 Hz
Input Frequency Tolerance
5 %
Note Note
Consult factory for connection options.
Output Tbat At 25 Degree Celsius C Temperature Direct Current Ou
0 to 50 A
Output Tbat At 25 Degree Celsius C Temperature Efficiency
90 %
Output Tbat At 25 Degree Celsius C Temperature Full Scale Output
< 1 %
Output Tbat At 25 Degree Celsius C Temperature Maximum Output Vo
28.2 V
Output Tbat At 25 Degree Celsius C Temperature Nominal Direct Cu
24 V

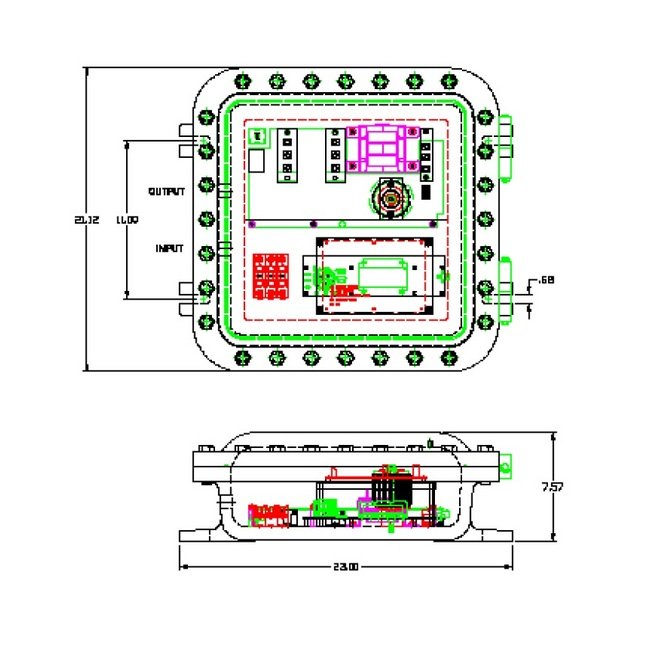

Physical Specifications Case Material
Copper Free Aluminum
Physical Specifications Color
Gray
Physical Specifications Depth
8.25 in
Physical Specifications Finish
Natural
Physical Specifications Height
30 in
Physical Specifications Width
18 in
Protection Features Protection Features
Safe shutdown in the event of input phase loss or under voltage conditionsSafe shutdown for internal over-temperatureOutput current limitingOutput over-voltage, over-current and over-temperature protectionInput and Output Soft-Start CircuitsAn optional internal display and discrete LEDs and are available to provide indication of the battery charger status of the following:NORMAL OPERATING STATUS480 VAC ONCHARGER FAULTCURRENT LIMITAn optional communication port is available to provide remote monitoring of the Battery Charger operation.
Technical Specs Brands
Applied Power Systems, Inc.
