APS BC6837 Series 250kW Smart Battery Charger
APS BC6837 Series 250kW Smart Battery Charger
SKU:BC6-a12f2a
High-performance 250kW Smart Battery Charger for EV, marine, transit, and energy storage applications.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
APS BC6837 Series 250kW Smart Battery Charger
$5,999.99
Quantity: 1
Claim Your Seller Account
APS BC6837 Series 250kW Smart Battery Charger
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The APS BC6837 Series 250kW Smart Battery Charger is specifically designed for EV, transit, marine, and stationary energy storage applications. This high-frequency charger supports multiple battery chemistries with selectable charge profiles, including Lead-Acid, NiCad, NiMH, and Li-Ion. With innovative software-defined profiles, this charger optimizes the charge cycle for different battery types, ensuring higher efficiency, superior performance, and reduced power consumption. Its compact design and protection features such as Output Over-Voltage Protection, Over-Current Protection, and Over-Temperature Protection make it the ideal choice for demanding industrial environments.
Product Specifications
Additional Information Additional Information
SmartCharger SeriesIntelligent multi-chemistry battery chargers designed for energy storage applications with models available for a wide range of battery voltages and power levels.Designed and built in the USA. The APS SmartCharger Series sets the standard for rugged, reliable, high performance battery charger operation.APS SmartChargers are micro-processor controlled for fast, accurate charging of vehicle, marine, transit or backup batteries in deep cycle and maintenance applications. They are compact, light weight and easy to install. These chargers feature high efficiency operation so they require less input power than traditional chargers while operating at peak efficiency. This allows more AC power to remain available for connected AC loads on vessel or vehicle. SmartChargers are available for batteries from 12V to 480V, up to 500 Amps. The modular IGBT power stage design provides scalability across a wide power range from 1 to 250kW. Standard features for the series include >90% efficiency, reverse battery protection, seamless transition from constant-current to constant-voltage mode operation and >95% Power Factor.SmartChargers monitor battery temperature and automatically compensate charger output based upon temperature feedback. The SmartCharger series provide built in diagnostics and fault protection along with an OLED display for improved usability. Charger output voltage and current are displayed, along with operating status and fault indications. Standard models are available to accept three phase AC input or DC input power. Options include USB or RS485 communication ports to allow remote monitoring of charger operation and an internal data logger with nonvolatile memory to store operating history for customer download.The OLED Display and discrete LEDs provide battery charger status indication for the following:Charger Output VoltageCharger Output CurrentOperating StatusCharger Faults
Features Features
High efficiency, high frequency chargers.For EV, Marine, Transit, Backup or Energy Storage ApplicationsWide Power Range Available, 1 - 250 kWRugged, Reliable, Field Proven ConstructionFactory Settable for 12 V, 24 V, 48 V, 72 V & up to 480 V DC Battery OutputModels available for AC or DC input.Seamless CC to CV mode transition.Output Current LimitingBattery Temperature Sense CompensationBuilt-in Diagnostics and Fault ProtectionOLED display of status & parameters.Optional communication ports with PC-based Remote Monitoring software.Optional data logger.
Model Bc6837 Configuration Ordering Guide Battery Type Tt
L1=LA | L1=Li-Ion | L2=AGM | L2=LiFePO | N1=NiMH | N2=NiCd
Model Bc6837 Configuration Ordering Guide Input

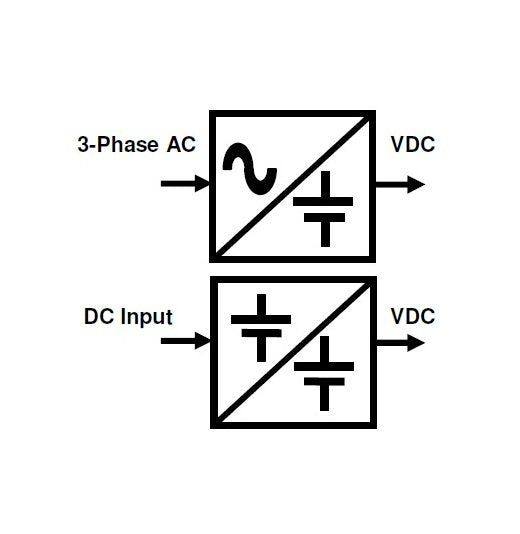

Alternating Current (AC) Input
Model Bc6837 Configuration Ordering Guide Optional Communication
Blank=None | C1=RS485 | C2=USB
Model Bc6837 Configuration Ordering Guide Optional Datalogger In
Blank=None | D=Datalogger Installed
Protection Features Protection Features
Output Over-Voltage ProtectionOutput Over-Current ProtectionOver-Temperature ProtectionOutput Current LimitingInput and Output Soft-start
Technical Specs Alternating Current Input Voltage
208 to 480 V
Technical Specs Brands
Applied Power Systems, Inc.
Technical Specs Direct Current Battery Stack Voltage
12 to 480 V
Technical Specs Maximum Power
250 kW
