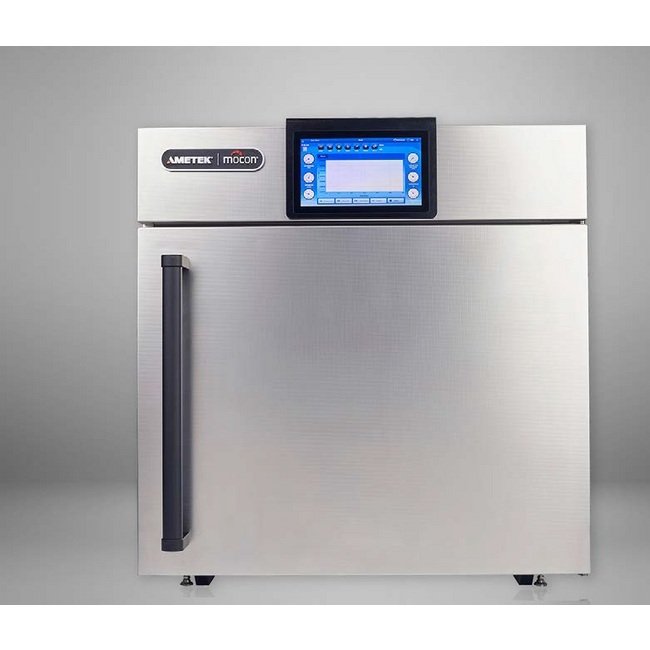

The Aquatran 3/40 Water Vapor Permeation Analyzer is an innovative instrument designed for accurate and reliable whole package permeation testing. With a large environmental chamber and advanced Test Cartridges, it ensures precise test conditions and accommodates a wide range of packages. This all-in-one system simplifies testing setup and monitoring, delivers absolute precision with modulated infrared sensor technology, and optimizes productivity by allowing multiple simultaneous tests. Compliant with ASTM, ISO, JIS, TAPPI standards, it offers user-friendly operation, application solutions for various package types, and essential data for selecting the right packaging, making it a valuable asset for packaging professionals.
Product Specifications
Absolute Precision Absolute Precision
Temperature and humidity-controlled chamber allows testing in real-world conditions for precise results.Infrared sensor provides repeatable results without drift or degradation.Conforms to ASTM Test Standards.
Additional Information Additional Information
Improve your bottom line and get peace of mind.The Aquatran® 3/40 was designed to help maintain the integrity of your package by giving you the capability to test it in real world conditions.This arms you with precise data to select the most appropriate packaging for your product-no over or under packaging, saving costs and reducing package waste.
Application Solutions Application Solutions

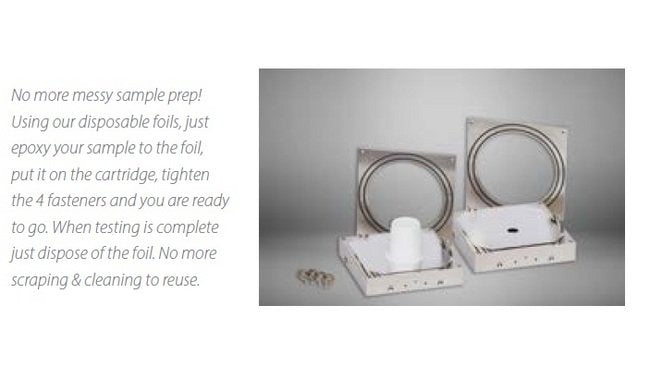

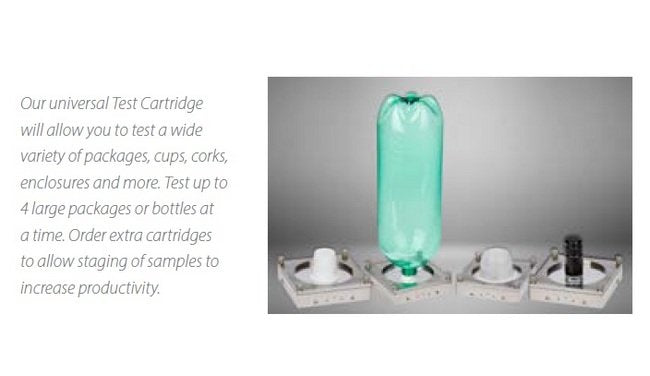

The Aquatran® 3/40 is capable of testing a wide range of package types through the use of our innovative Test Cartridges.A variety of package Test Cartridges are available to easily and accurately testTraysBottlesFlexible containers or pouchesCups, Packs or PodsCaps or CorksFilmsComplete packages or tubing via Package Adapter CartridgePackage Test Cartridges use pneumatic clamp mounting in the chamber for quick and tool-less installation and removal.. Low cost, single-use Package Test Foils eliminate the need to heat and scrape the epoxy from reusable plates, while also providing high-confidence mounting with the integrated TruSeal® design that utilizes gas flushing between two (2) seals to prevent ingress into the test area. This eliminates the need to run absolute zero tests on samples, thus saving time.Custom test cartridges and fixtures are available to greater improve test accuracy and reduce setup time. Contact one of our application experts to ask about your custom package application needs.
Dimensions And Weight Exterior Depth
29.75 in | 75.6 cm
Dimensions And Weight Exterior Height
35 in | 88.9 cm
Dimensions And Weight Exterior Weight
225 lb | 102 kg
Dimensions And Weight Exterior Width
33 in | 83.8 cm
Dimensions And Weight Interior Depth
12 in | 30.5 cm
Dimensions And Weight Interior Height
17 in | 43.2 cm
Dimensions And Weight Interior Volume
3 ft³ | 85 L
Dimensions And Weight Interior Width
25.5 in | 64.8 cm
Modulated Infrared Ir Sensor Technology Modulated Infrared Ir Se
MOCON®'s patented modulated infrared sensor provides precision measurement of water vapor transmission rate. It is one of the industries most trusted systems and is the only modulated sensor system on market meeting ASTM F1249.
Optimized Productivity Optimized Productivity
Save on labor hours with easy set-up and less in-test monitoring.Removable test cartridges, prepare additional samples while testing.Perform simultaneous tests with up to 4 large packages.
Simplified Test Set Up And Monitoring Simplified Test Set Up And
The simple user interface with automated controls makes testing easy with little training. In certain applications, starting a new test may be as simple as a single press of a button. Your operators can now pre-program a variety of tests at different conditions and run them sequentially without operator intervention, resulting in less instrument idle time.
Specifications Conformance Standards
Canadian Standards Association (CSA) Safety Compliance | European Conformity (CE) | Underwriters Laboratories (UL)
Specifications Connectivity
2 Universal Serial Bus (USB) Ports | Ethernet Port | Optional PERM-NET Lite⢠for Remote Monitoring
Specifications Industry Standards
American Society for Testing and Materials (ASTM) F-1249 | International Organization for Standardization (ISO) 15106-2 | Japanese Industrial Standards (JIS) K7129-2 | Technical Association of the Pulp and Paper Industry (TAPPI) 557
Technical Specifications Minimum Exam Time
30 min
Technical Specifications Repeatability
0.005 g/(m²·day) | 2 %
Technical Specifications Resolution
0.000001 g/(pkg·day)
Technical Specifications Test Range
0.005 to 100 g/(m²·day) | 0.000025 to 0.5 g/(pkg·day)
Test Conditions Chamber Relative Humidity Rh Testing Range
30 to 90 %
Test Conditions Chamber Relative Humidity Rh Testing Range Toler
5 %
Test Conditions Test Temperature Range
10 to 50 ºC
Test Conditions Test Temperature Range Tolerance
0.5 ºC
User Friendly User Friendly
Various test cell cartridges available to accommodate a variety of package types and barrier films.Simplified sample preparation.Touch screen interface, with accelerated test options.
Whole Package Testing Made Easy Whole Package Testing Made Easy

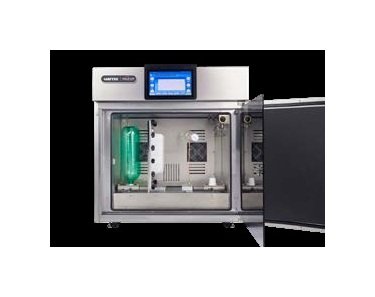

The precisely controlled environmental chamber eliminates the need for cumbersome set-up of independent test gas environments and ensures accurate test results for real-world conditions. The new controlled chamber instrument has four independent test cells allowing multiple analyses to be run at the same time, while the easy to use Package Test Cartridges make mounting and testing of packages simple and repeatable.
