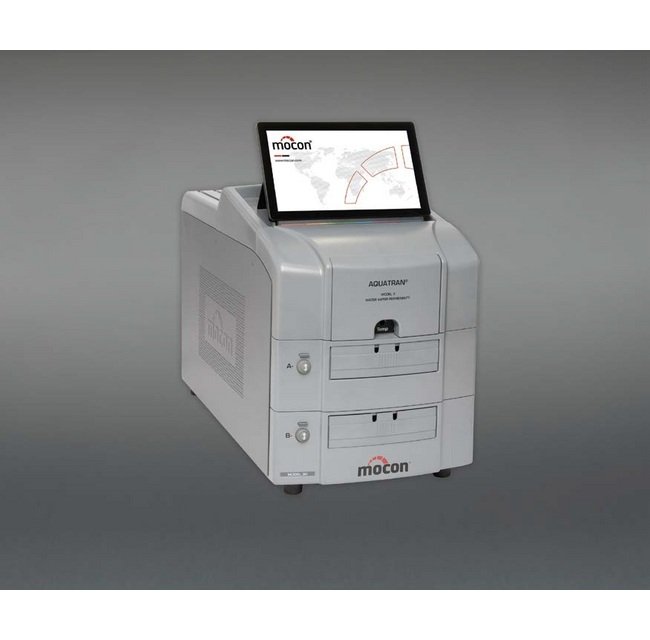

The Aquatran WVTR Analyzer Model 3 is a high-performance instrument designed for precise Water Vapor Transmission Rate (WVTR) testing of high to ultra-high barrier films and packages. With two independent cells and interchangeable horizontal test cartridges, this analyzer offers unparalleled accuracy, with test results sensitive down to 0.00005 g/(m²·day). It conforms to industry standards including ASTM, ISO, JIS, and GB/T, ensuring reliability for research, development, and production support of barrier films, coated films, high barrier specialty materials, and various package types.
Product Specifications
Accessories Accessories
Reduced area cartridge Edge effect cartridge Blister testing cartridge Package testing adapter Custom engineered test cartridges PermWare⢠software for data collection and remote monitoring
Accuracy In Water Vapor Permeation Analyzerwvtr Permeation Testi

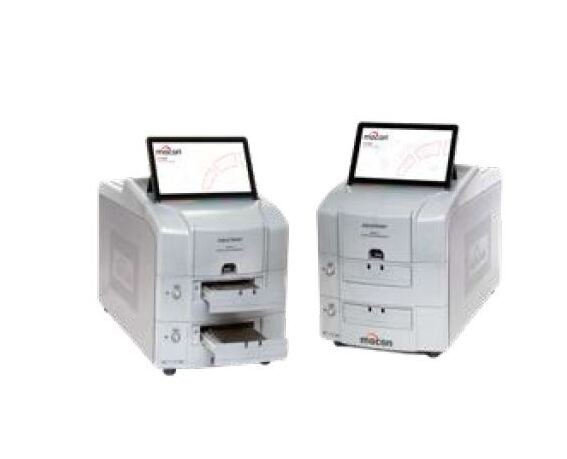

The Aquatran®3 features AMETEK® MOCON®'s exclusive test cell drawer design with two horizontal removable easy-to-load cartridges improve test repeatability. A single button opens and closes the drawers, and the cartridge is automatically clamped in place with consistent and even force on any sample thickness. This approach provides greater test repeatability than manual or cam clamping methods. All test cartridges incorporate our exclusive TruSeal® design that utilizes two seals and flushes gas between them to prevent ambient ingress into the test area. This reduces background levels, improves repeatability, and reduces the need to run individual zero.
Advanced Control System Advanced Control System
AMETEK® MOCON®'s user friendly WinPerm 2 control system features fully automated testing including temperature, gas flow and RH control. Final test reports are automatically saved and can be set to automatically print and export to permanent storage directories. The analyzer is compatible with PermWareâ¢, your complete permeation laboratory data management system.
Aquatrace Sensor Aquatrace Sensor
The Aquatran®3 uses the AMETEK® MOCON®'s patented absolute coulometric pentoxide sensor that does not require calibration and conforms with ASTM F3299. It is the longest lasting sensor of its kind on the market. The sensor has a linear output which guarantees the highest accuracy and repeatability throughout its entire detection range.
Aquatrace Sensor Trusted Result Aquatrace Sensor Trusted Result
Lowest level of detection on the market down to 5 x 10-5 g/(m2 · day) Longer sensor life than others on the market Accurate and repeatable results Most trusted P2O5 sensor complies with ASTM F3299 and ISO 15106-3
Control Features Control Features

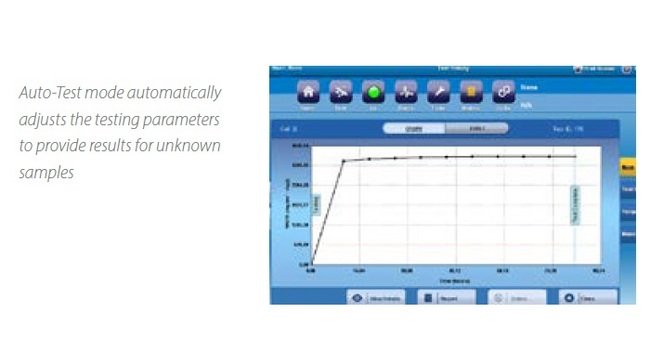

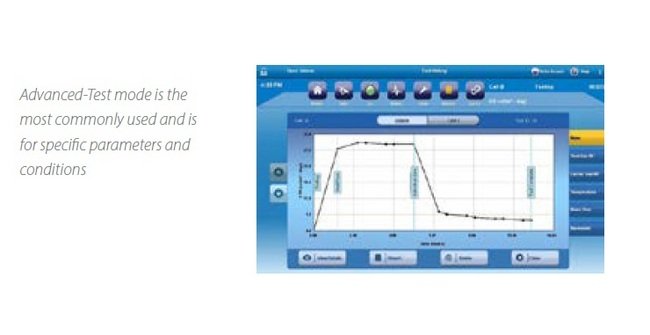

Fully automated flow, temp, & RH control throughout tests Automatic test method development and recommendations Programmable multi-test sequencing Built-in sensor protection
Dimensions And Weight Depth
23 in | 58.5 cm
Dimensions And Weight Height
15.5 in | 39.4 cm
Dimensions And Weight Weight
95 lb | 43.1 kg
Dimensions And Weight Width
23 in | 58.0 cm
Extensive Testing Extensive Testing
The accuracy and low detection capability of the Aquatran®3 make it an ideal WVTR instrument for research and development and can be used for production support for high to ultra-high barriers. It has the capability to test mono-layer to multi-layer films, coated films, and specialty high barrier films such as solar back sheets. With an optional adapter cartridge it can be used to test packages, flexible or rigid containers, bottles/closers, encapsulation materials, solar panels, Windows®, OLED, blister packs, and seals in the form of O-rings or gaskets. More challenging applications such as high moisture barrier OLED flexible displays, electronics, and pharmaceutical packaging are no problem for the Aquatran®3. The interchangeable cartridges also work with other Next Generation analyzers. These purpose-built cartridges increase accuracy, extend the range, or make it possible to test unique or difficult samples.
Industry Pioneer Industry Pioneer
Over 40 years ago, we created the world's first multi cell permeation instruments. For more than 14 years, MOCON®'s Aquatran® analyzers have been the most trusted and longest lasting on the market. Whether you're testing high or ultra-high water vapor permeation rates for barrier films or packages, the Aquatran®3 analyzer is a high-performance solution for you.
Performance Specifications Carrier Gas
Nitrogen (99.9999% N2 or better)
Performance Specifications Controlled Relative Humidity Rh Testi
3 %
Performance Specifications Maximum Film Thickness
0 to 120 mil | 0 to 3 mm
Performance Specifications Test Temperature Range At 100 Percent
5 to 50 ºC
Performance Specifications Test Temperature Range At 5 To 90 Per
10 to 40 ºC
Performance Specifications Test Temperature Range Tolerance
0.2 ºC

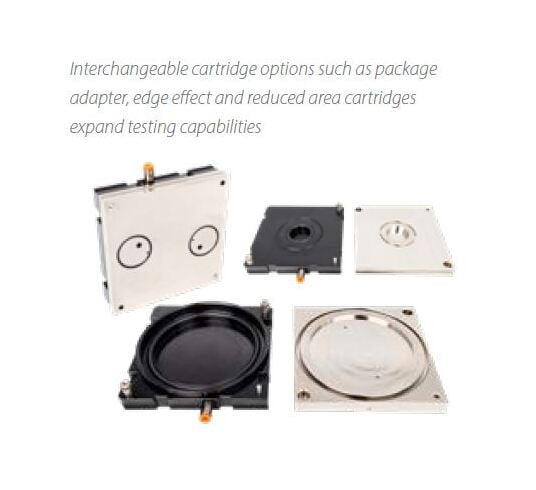

Removable Cartridges Removable Cartridges
Easy sample prep on the benchtopOne button release and loading Pneumatic clamping provides more repeatable resultsInterchangeable cartridge options
Specifications Conformance Standards
Canadian Standards Association (CSA) Safety Compliance | European Conformity (CE) | Underwriters Laboratories (UL)
Specifications Connectivity
2 Universal Serial Bus (USB) Ports | Ethernet Port | Optional PERM-NET Lite⢠for Remote Monitoring
Specifications Industry Standards
American Society for Testing and Materials (ASTM) F-3299-18 | International Organization for Standardization (ISO) 15106-3 | Japanese Industrial Standards (JIS) K7129-3 | National Standard (Recommended) (GB/T) 21529-2008
Technical Specifications Repeatability
0.05 mg/(m²·day) | 1 %
Technical Specifications Resolution
0.01 mg/(m²·day)
Technical Specifications Test Range For Normal Model 50 Cm
0.05 to 5000 mg/(m²·day) | 0.0032 to 322.6 mg/(100 in²·day) | 0.00025 to 25 mg/(pkg·day)
Technical Specifications Test Range For Reduced Area Cartridge 5
0.44 to 44.000 mg/(m²·day) | 0.028 to 2860 mg/(100 in²·day)
Touchscreen Interface Touchscreen Interface
Intuitive automated operation requires less trainingBuilt in multi-level user management and data security Event log & trouble shooting guide Save on valuable lab space by eliminating need for PC
Truseal Truseal
Gas flushing of sample mounting seal protects chamber integrity Lowers background levels improving accuracy at ultra-low detection levelsShortened testing time increases throughput More repeatable results
Warranty Warranty
Full 100% parts and workmanship warranty for 12 months
