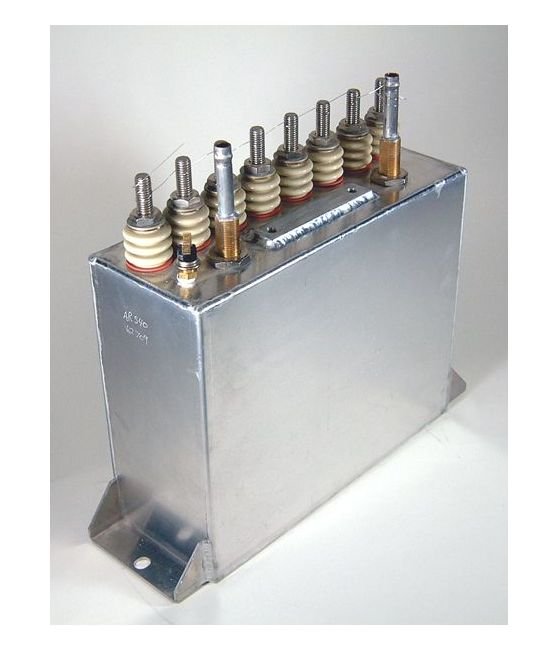

AR Series Water-Cooled Oil-Filled High Voltage Capacitors
AR Series Water-Cooled Oil-Filled High Voltage Capacitors
SKU:OIL-6f3698
Enhance power systems with AR Series Water-Cooled Oil-Filled Caps for reliable high voltage performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Upgrade your power system with the AR Series Water-Cooled Oil-Filled High Voltage Capacitors. Offering a total capacitance of 13.26 µF, VMAX (RMS) of 1200 V, and SMAX of 1200 kV·A, these capacitors deliver reliable performance at up to 10 kHz. With a compact design measuring 4.13 inches in width and 7 inches in height, they are ideal for high-power applications. Designed to meet stringent institutional procurement standards, these capacitors ensure efficiency and durability for critical operations.
Product Specifications
Specifications Capacitance By Tap
2 x 1.33 + 4 x 2.65 µF
Specifications Fmax
10 kHz
Specifications Height
7 in
Specifications Imax Rms
1000 A
Specifications Smax
1200 kV·A
Specifications Total Capacitance
13.26 µF
Specifications Vmax Rms
1200 V
Specifications Width
4.13 in
