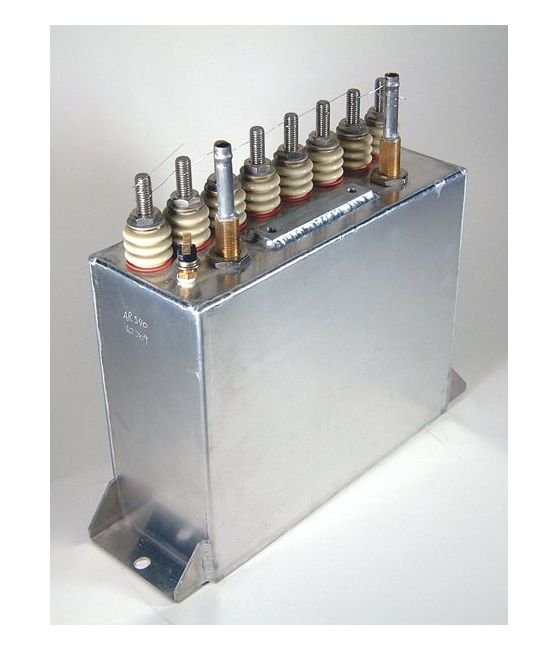

AR Series Water-Cooled Oil-Filled High Voltage Capacitors

Name: AR Series Water-Cooled Oil-Filled High Voltage Capacitors
Brand: High Energy Corp.
SKU: OIL-32fd57
Price: 129.99 USD
Availability: OutOfStock

SKU:OIL-32fd57

High-power AR Series Water-Cooled Oil-Filled Caps - Total 17.48 µF, 800V, 844A, 9.6 kHz. Compact & reliable for demanding environments.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

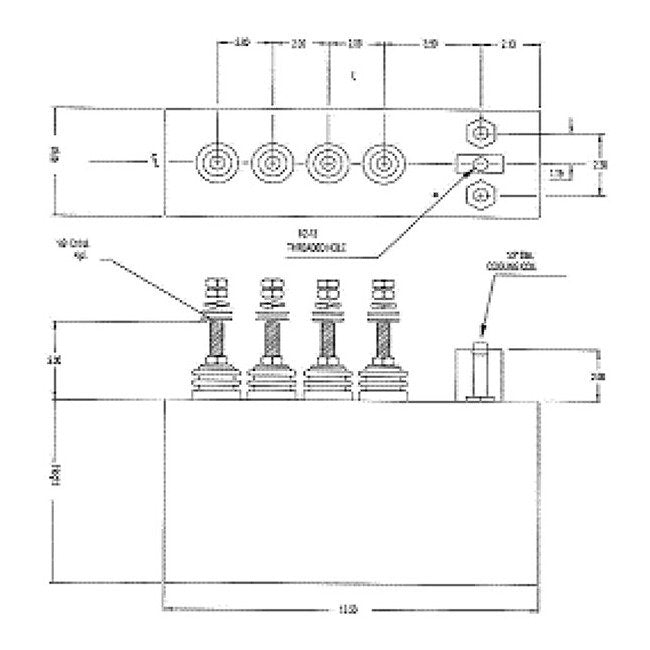

The AR Series Water-Cooled Oil-Filled High Voltage Capacitors are designed for high-power applications, offering a total capacitance of 17.48 µF with individual capacitances of 4 x 4.37 µF per tap. With VMAX (RMS) of 800V and IMAX (RMS) of 844A, these capacitors deliver reliable performance up to 9.6 kHz. Their compact dimensions of 4.13 in width and 7 in height make them suitable for various installations. Meeting stringent industry standards, these capacitors ensure efficiency and durability in demanding environments.

Product Specifications

Specifications Capacitance By Tap

4 x 4.37 µF

Specifications Fmax

9.6 kHz

Specifications Height

7 in

Specifications Imax Rms

844 A

Specifications Smax

675 kV·A

Specifications Total Capacitance

17.48 µF

Specifications Vmax Rms

800 V

Specifications Width

4.13 in

AR Series Water-Cooled Oil-Filled High Voltage Capacitors
