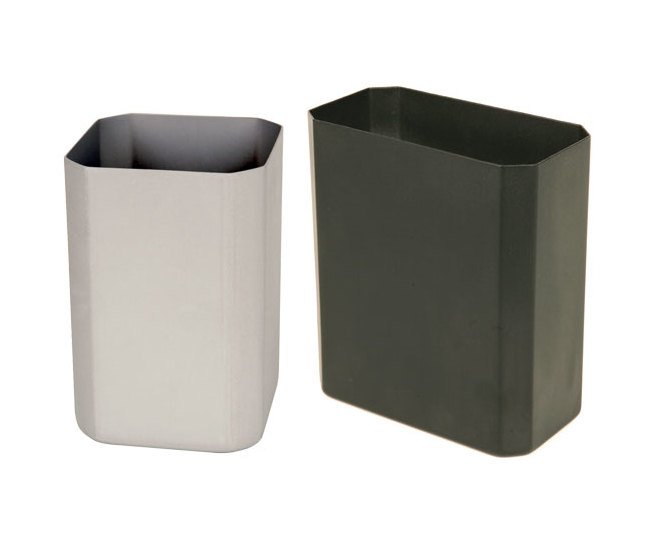

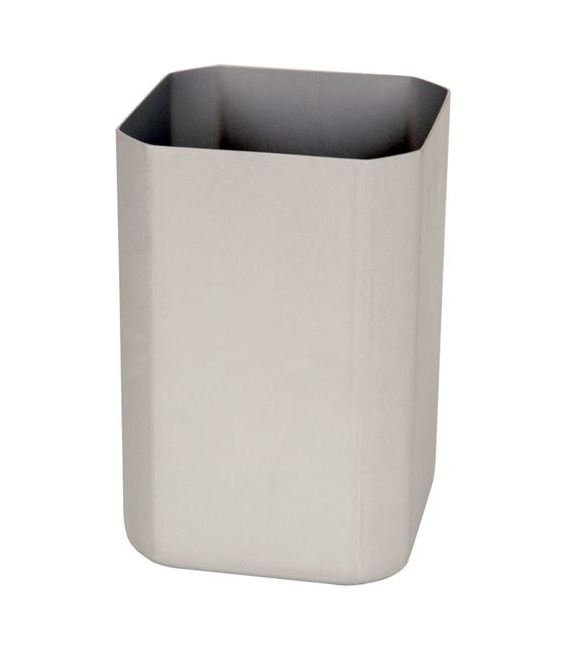

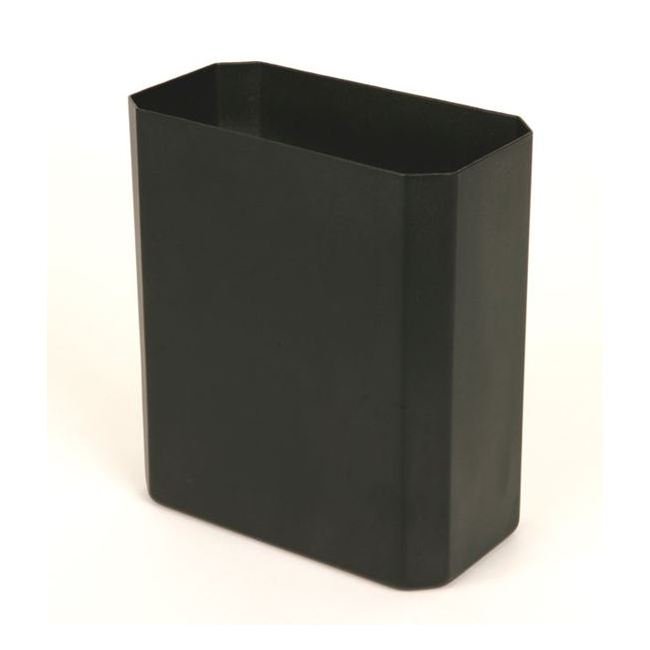

Our ARINC Style Deep Drawn Housings are precision-manufactured to meet Aeronautical Radio, Inc. specifications, ensuring seamless aluminum/stainless steel parts for diverse applications. With custom options like drilling, markings, and various finishes, these housings offer superior quality and functionality. Designed for aeronautics, broadcast, military, and more, these deep drawn cans are crafted in the USA for unmatched durability and reliability.
Product Specifications
Benefits Additional Information
ZERO provides value added services and operations. We understand and provide continuous delivery of products to meet your expectations in Kanban and long term agreements.ZERO has no minimum order quantity required. We can draw exactly what you need! Price breaks are available at 10, 25, 50, 100, and 250+ piece quantities.
Benefits Benefits
The benefits start with a single sheet of metal. ZERO uses only the highest quality aerospace aluminum alloys. Each piece is precision sheared and formed using the ZERO method of deep drawing, then trimmed and tempered to your specification.
Benefits Benefits Of Zeros Deep Drawing
Created from a single sheet of metalCans are 100% seamlessLarge quantities of deep drawn products can be easily manufacturedUniform material thickness can be achievedOver 30,000 ToolsNo tooling or set up cost on stock sizesFree trimming to height specificationLow tooling cost for custom jobsIn-house modification services (to adapt a standard can to special requirements)Quick turn-around, including next-day shipping if required5 axis laser capabilities for precision modifications and prototyping
Custom Options Accessories
Blowers | Brackets | Card Edges | Covers | Fans | Feet | Flanges | Gaskets | Handles | Hinges | Latches | Mounting Box | Nameplates | Panels
Custom Options Alloy Custom
Many materials, other than aluminum, can be deep drawn. ZERO has the ability to draw most materials on special order.
Custom Options Assembly
Assemble Components | Install Rivets, Screws and Washers | Mount Hardware
Custom Options Finish Custom
Black Anodize | Clear Anodize | Custom Anodize | Custom Powder-Coat Paint | Custom Wet Paint | FED-Std-595, Pantone and RAL | Gold Anodize | Gold Chemical Film | Standards Powder-Coat Paint | Standards Wet Paint | Yellow Chemical Film
Custom Options Marking Custom
Bar Code | Emboss | Etch and Fill | Hot Stamp | Label | Silk-Screen | Stencil
Custom Options Modified Or Custom Deep Drawn Parts
ZERO has a completely equipped design and manufacturing facility to perform any secondary operation or modification to standard boxes and covers. We also have an experienced staff of tool and die makers to satisfy your custom or special deep drawn requirements.
Custom Options Operations
Louvering | Piercing | Ramping | Tapping | Welding
Custom Options Surface Custom
Countersink Holes | Custom Shapes | Obround Laser Cut Holes | Round Laser Cut Holes | Square/Rectangular Laser Cut Holes
Custom Options Testing
Die Penetrant | Drop Test | Pull Test | Watertight Integrity
Custom Options Tolerances Custom
Closer tolerances, on trim heights can be provided on special order at additional cost. Standard edge to feature dimensions will be held to ±0.030.Feature to feature will be held ±0.010.
Note Note
When ordering give part number and height desired in inches. Example: HDD5042-3.00 = ARINC style enclosure (3.175" W x 3.175" L x 3.00" H).
Options Alternate Alloy Options
1100-0 | 6061-0 | 6061-T4 | 6061-T6
Options Certifications
First Article Report | Material (Chemical/Physical) | Material Source Inspection
Options Finish
Anodize | Chemical Film | Paint Coat | Powder-Coat
Options Heat Treating
Standard heat treating is Fast and Slow Cycle Hydrogen Annealing. ZERO can Heat Treat Alloy 6061-0 to a T-4 or T-6 condition in conjunction with the drawing process.
Options Marking
Part Number Label | Rubber Stamp
Options Packaging
Bag and Tag | Bag Only | Egg Crate
Options Surface
Bead Pattern (if Available) | Deburr | Sandblast | Sand-o-Flex (Jitterbug) | Sleeve Cut
Specifications Alloy
3003-0
Specifications Blank Gauge Thickness Before Draw
0.032 in
Specifications Deep Drawn Type
Rectangle | Square
Specifications Inside Bottom Radius R2
0.13 in
Specifications Inside Radius R1
0.13 in
Specifications Made In
USA
Specifications Minimum Order
1
Specifications Outside Diagonal Width C H
3.88 in
Specifications Outside Height Maximum
9.38 in
Specifications Outside Height Minimum
0.21 in
Specifications Outside Length
3.17 in
Specifications Outside Width
3.17 in
Tolerances Maximum Bow Tolerances For 6 To 12 Inch Basic Size
0.06 in
Tolerances Maximum Bow Tolerances For Over 12 Inch Basic Size
0.12 in
Tolerances Maximum Bow Tolerances For Up To 6 Inch Basic Size
0.03 in
Tolerances Trim Height
Over 24 in
Tolerances Trim Height Tolerance
0.06 in
Tolerances Width
6 to 24 in
Tolerances Width Tolerance
0.03 in
