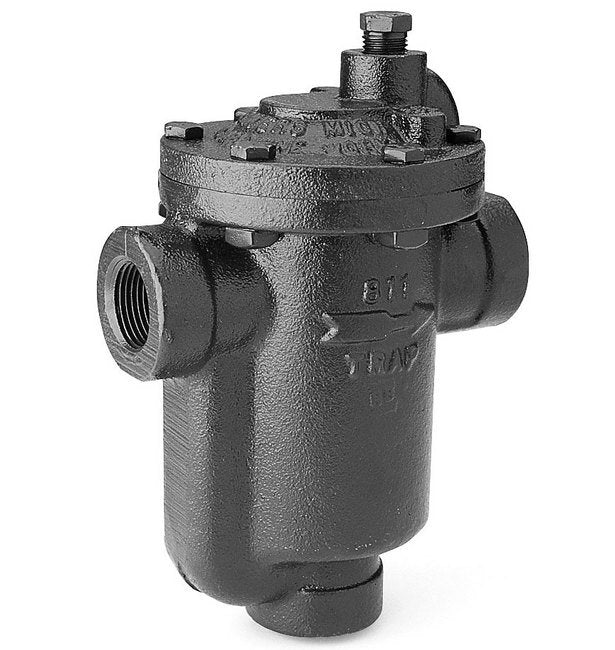

The Armstrong 800-813 Series Inverted Bucket Steam Trap, made from durable cast iron, is designed for horizontal installation and operates efficiently at pressures up to 250 psig. With a capacity of up to 4,400 lb/hr, this reliable steam trap features a free-floating stainless steel mechanism, continuous air venting at steam temperature, and a discharge orifice at the top for optimal performance. Its hardened chrome steel valve and seat ensure longevity and minimal maintenance, making it a cost-effective choice for condensate drainage in various steam applications.
Product Specifications
Specifications Body
ASTM A48 Class 30

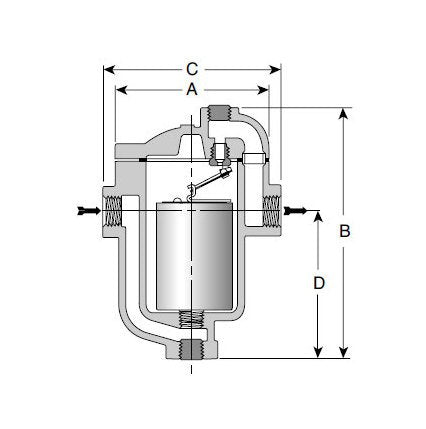

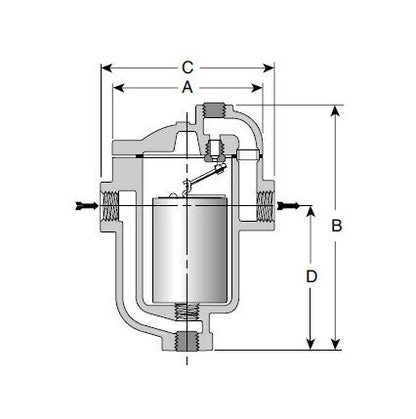

Specifications Bottom To C Inlet D
2 3/4 in | 70 mm

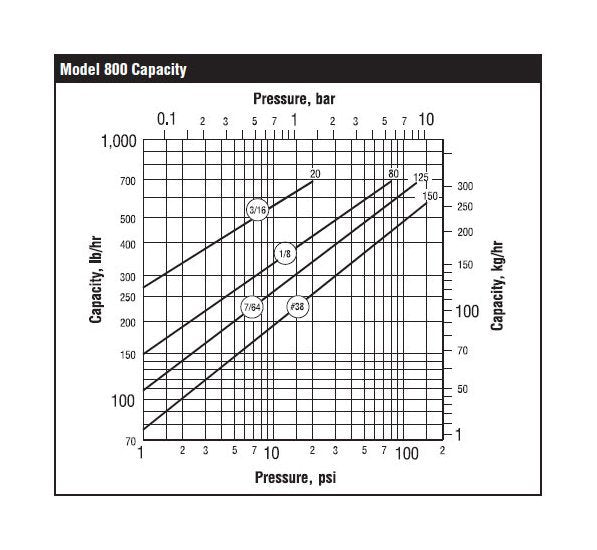

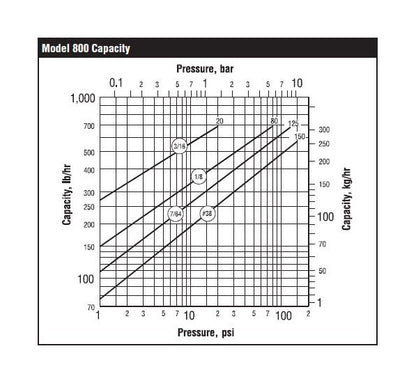

Specifications Capacity
4400 lb/hr | 2000 kg/hr
Specifications Connections
Screwed NPT and BSPT
Specifications Face To Face C
5 in | 127 mm
Specifications Flange Diameter A
3 3/4 in | 95.2 mm
Specifications Height B
5 7/16 in | 138 mm
Specifications Internals
All stainless steel-304
Specifications Maximum Allowable Pressure At 232c Vessel Design
17 bar
Specifications Maximum Allowable Pressure At 450f Vessel Design
250 psig
Specifications Maximum Operating Pressure
150 psig | 10 bar
Specifications Note
Designs, materials, weights and performance ratings are approximate and subject to change without notice.Cannot be furnished with both thermic vent bucket and check valve.
Specifications No Of Bolts
6
Specifications Options
Probe connection | Scrub Wire | Stainless Steel Internal Check Valve | Stainless Steel Pop Drain | Thermic Vent Bucket | Thermo Drain
Specifications Pipe Connections
1/2 in | 3/4 in | 15 mm | 20 mm
Specifications Test Plug
1/4 in | 6 mm
Specifications Test Plug Material
Carbon steel
Specifications Valve And Seat
Hardened chrome steel-17-4PH
Specifications Weight
5 lbs | 2.3 kg
