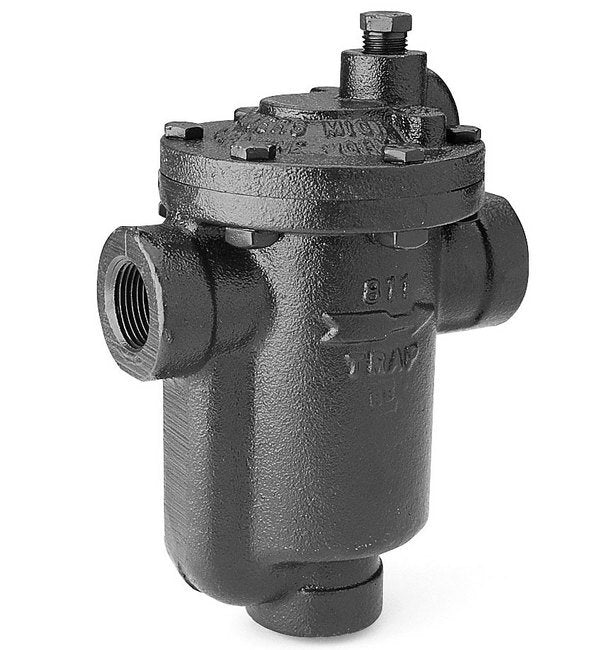

The Armstrong 800-813 Inverted Bucket Steam Trap offers exceptional condensate drainage for various steam-using equipment. Made of durable cast iron and featuring a free-floating stainless steel mechanism, this trap operates efficiently at pressures up to 250 psig. Its continuous air venting, discharge orifice at the top, and resistance to water hammer make it a reliable energy-saving solution. With capacities up to 4,400 lb/hr and repairable components, this trap ensures long-term performance and maintenance cost savings.
Product Specifications
Specifications Body
ASTM A48 Class 30

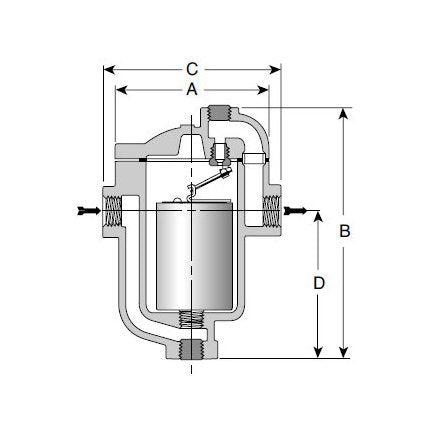

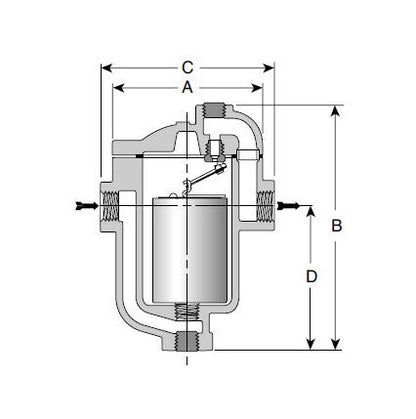

Specifications Bottom To C Inlet D
5 3/8 in | 137 mm

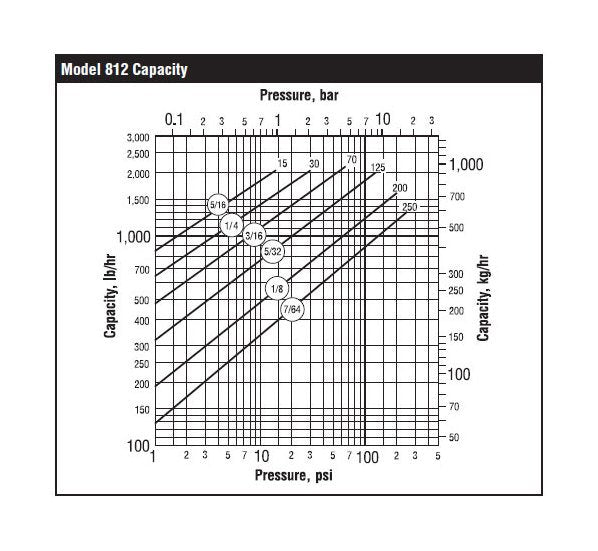

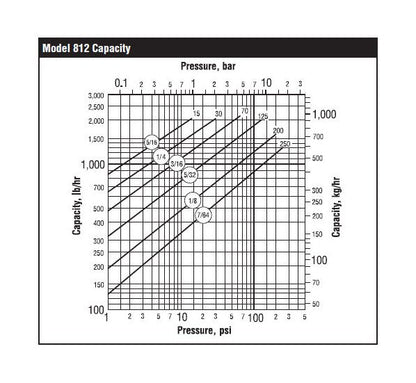

Specifications Capacity
4400 lb/hr | 2000 kg/hr
Specifications Connections
Screwed NPT and BSPT
Specifications Face To Face C
6 1/2 in | 165 mm
Specifications Flange Diameter A
5 5/8 in | 143 mm
Specifications Height B
9 1/16 in | 230 mm
Specifications Internals
All stainless steel-304
Specifications Maximum Allowable Pressure At 232c Vessel Design
17 bar
Specifications Maximum Allowable Pressure At 450f Vessel Design
250 psig
Specifications Maximum Operating Pressure
250 psig | 17 bar
Specifications Note
Designs, materials, weights and performance ratings are approximate and subject to change without notice.
Specifications No Of Bolts
6
Specifications Options
Probe connection | Scrub Wire | Stainless Steel Internal Check Valve | Stainless Steel Pop Drain | Thermic Vent Bucket | Thermo Drain
Specifications Pipe Connections
1/2 in | 3/4 in | 15 mm | 20 mm
Specifications Test Plug
1/2 in | 15 mm
Specifications Test Plug Material
Carbon steel
Specifications Valve And Seat
Hardened chrome steel-17-4PH
Specifications Weight
15 lbs | 6.8 kg
