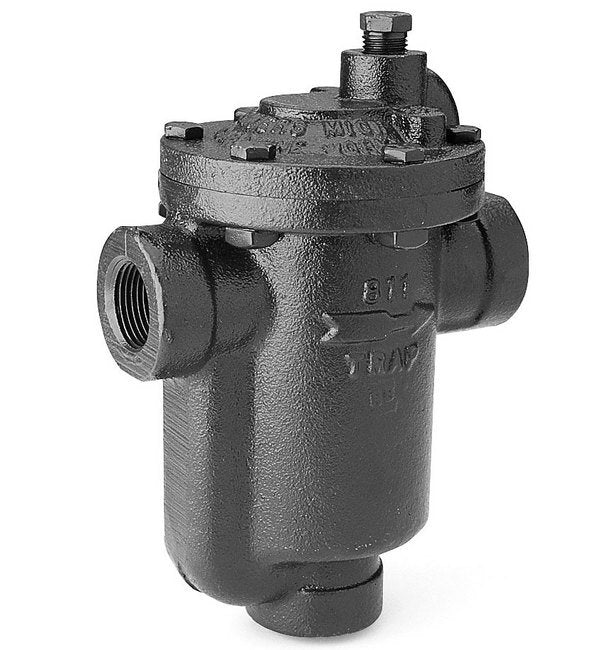

The Armstrong 800-813 Series Inverted Bucket Steam Trap is a robust solution for efficient condensate drainage in high-pressure steam systems. Built with durable ASTM A48 Class 30 cast iron and featuring all stainless steel internals, including a hardened chrome steel valve and seat, this trap ensures longevity and reliability. With a maximum allowable pressure of 250 psig (17 bar) at 450°F (232°C), capacities up to 4400 lb/hr (2000 kg/hr), and a unique free-floating mechanism for continuous air venting, the Armstrong steam trap excels in performance, energy savings, and maintenance efficiency. Incorporating options like a Thermic Vent Bucket and Probe connection, this trap meets the stringent demands of institutional and industrial steam applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Body
ASTM A48 Class 30

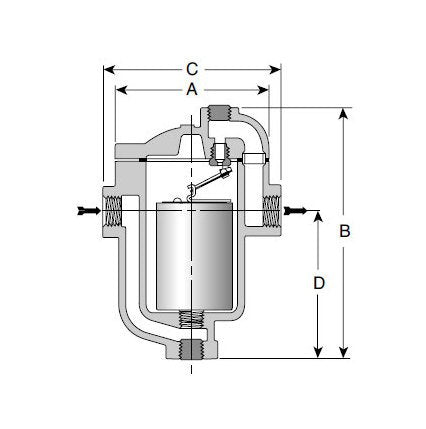

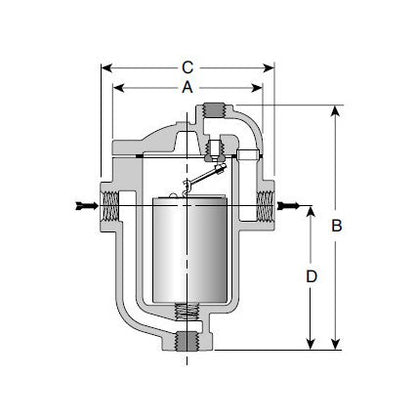

Specifications Bottom To C Inlet D
7 1/32 in | 179 mm

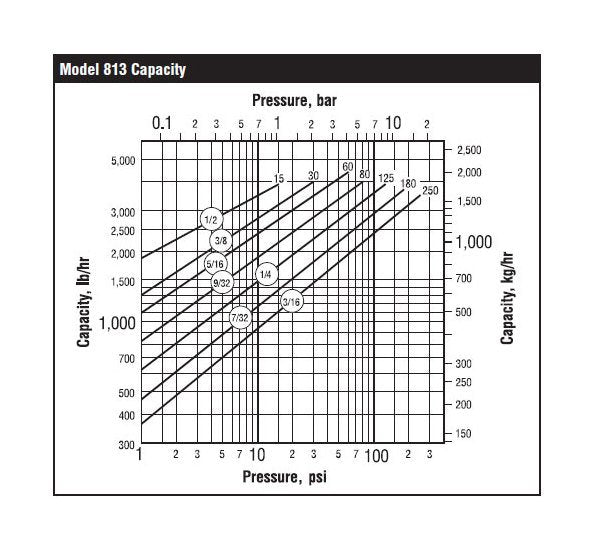

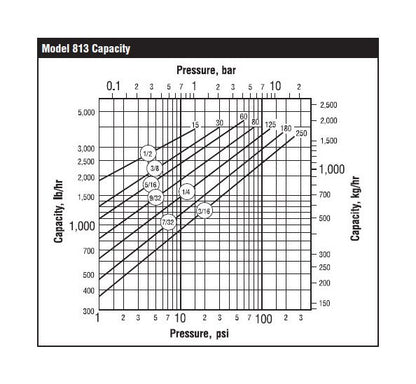

Specifications Capacity
4400 lb/hr | 2000 kg/hr
Specifications Connections
Screwed NPT and BSPT
Specifications Face To Face C
7 3/4 in | 197 mm
Specifications Flange Diameter A
7 in | 178 mm
Specifications Height B
11 3/4 in | 298 mm
Specifications Internals
All stainless steel-304
Specifications Maximum Allowable Pressure At 232c Vessel Design
17 bar
Specifications Maximum Allowable Pressure At 450f Vessel Design
250 psig
Specifications Maximum Operating Pressure
250 psig | 17 bar
Specifications Note
Designs, materials, weights and performance ratings are approximate and subject to change without notice.
Specifications No Of Bolts
6
Specifications Options
Probe connection | Scrub Wire | Stainless Steel Internal Check Valve | Stainless Steel Pop Drain | Thermic Vent Bucket | Thermo Drain
Specifications Pipe Connections
1 in | 3/4 in | 20 mm | 25 mm
Specifications Test Plug
3/4 in | 20 mm
Specifications Test Plug Material
Carbon steel
Specifications Valve And Seat
Hardened chrome steel-17-4PH
Specifications Weight
27 1/2 lbs | 12.5 kg
