Armstrong 800-813 Inverted Bucket Steam Trap
Armstrong 800-813 Inverted Bucket Steam Trap
SKU:REG-670e8a
Reliable Armstrong steam trap for efficient condensate drainage, with cast iron construction and stainless steel internals. Ideal for institutional buyers.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Armstrong 800-813 Inverted Bucket Steam Trap
$249.99
Quantity: 1
Claim Your Seller Account
Armstrong 800-813 Inverted Bucket Steam Trap
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

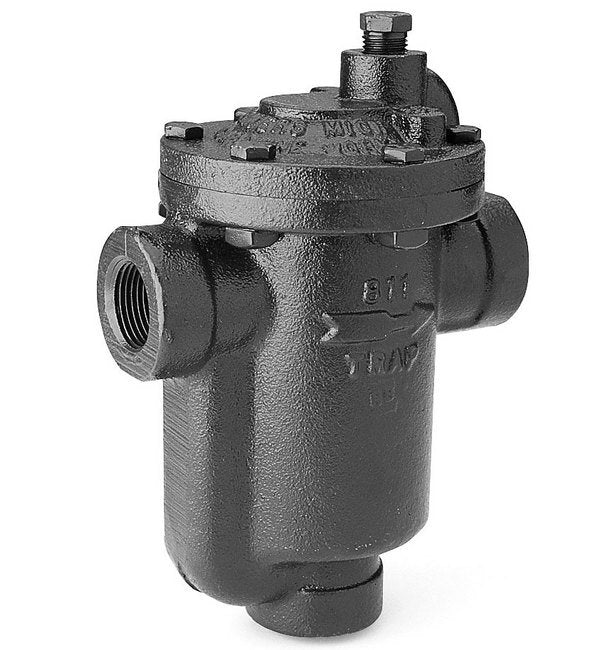

The Armstrong 800-813 Series Inverted Bucket Steam Trap is a reliable solution for efficient condensate drainage in steam-using equipment. Made of durable cast iron with stainless steel internals, this trap offers capacities up to 4,400 lb/hr and can withstand pressures up to 250 psig. The unique leverage system ensures optimal performance with minimal wear, while the continuous air venting and discharge orifice at the top prevent steam loss and dirt buildup. Suitable for horizontal installation, this repairable trap provides energy savings and maintenance benefits, making it an ideal choice for institutional buyers seeking long-term efficiency and cost-effectiveness.
Product Specifications
Specifications Body
ASTM A48 Class 30

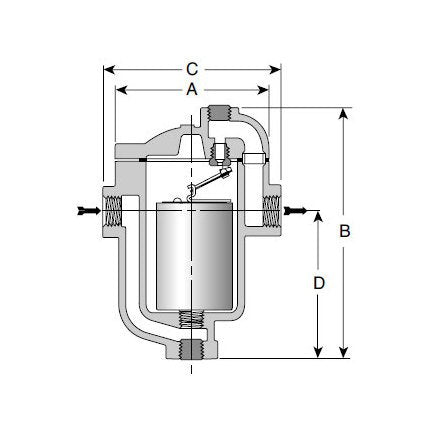

Specifications Bottom To C Inlet D
4 1/4 in | 108 mm

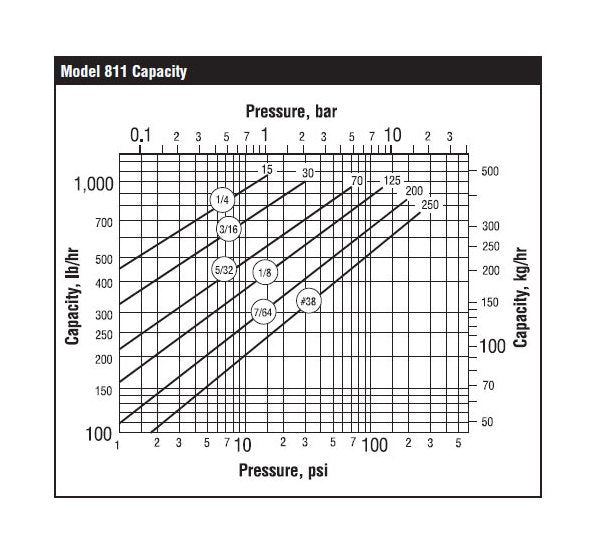

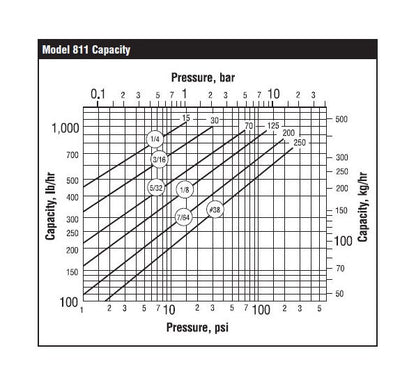

Specifications Capacity
4400 lb/hr | 2000 kg/hr
Specifications Connections
Screwed NPT and BSPT
Specifications Face To Face C
5 in | 127 mm
Specifications Flange Diameter A
3 3/4 in | 95.2 mm
Specifications Height B
6 7/8 in | 175 mm
Specifications Internals
All stainless steel-304
Specifications Maximum Allowable Pressure At 232c Vessel Design
17 bar
Specifications Maximum Allowable Pressure At 450f Vessel Design
250 psig
Specifications Maximum Operating Pressure
250 psig | 17 bar
Specifications Note
Designs, materials, weights and performance ratings are approximate and subject to change without notice.
Specifications No Of Bolts
6
Specifications Options
Probe connection | Scrub Wire | Stainless Steel Internal Check Valve | Stainless Steel Pop Drain | Thermic Vent Bucket | Thermo Drain
Specifications Pipe Connections
1 in | 1/2 in | 3/4 in | 15 mm | 20 mm | 25 mm
Specifications Test Plug
1/4 in | 6 mm
Specifications Test Plug Material
Carbon steel
Specifications Valve And Seat
Hardened chrome steel-17-4PH
Specifications Weight
6 lbs | 2.7 kg
