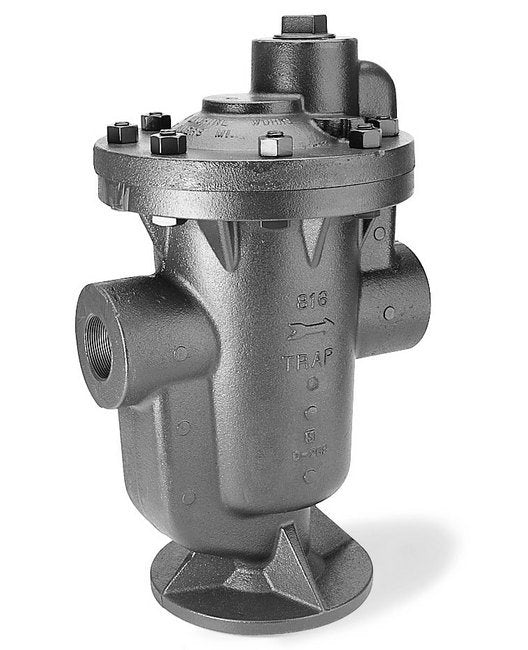

The Armstrong 814-816 Series Inverted Bucket Steam Trap in cast iron is designed for horizontal installation, with capacities up to 20,000 lbs/hr. Featuring a free-floating stainless steel mechanism and continuous air venting, this trap offers efficient condensate drainage and solid energy savings. The hardened chrome steel valve and seat ensure durability, while the water seal around the discharge orifice prevents steam loss. Resistant to water hammer and repairable for maintenance cost savings, this steam trap meets ASTM and stainless steel standards for reliable performance.
Product Specifications
Specifications Body
ASTM A48 Class 30

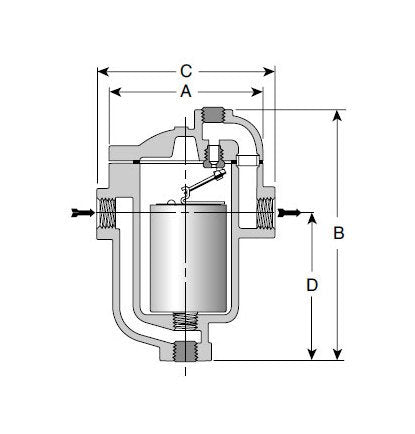

Specifications Bottom To C Inlet D
11 in | 279 mm

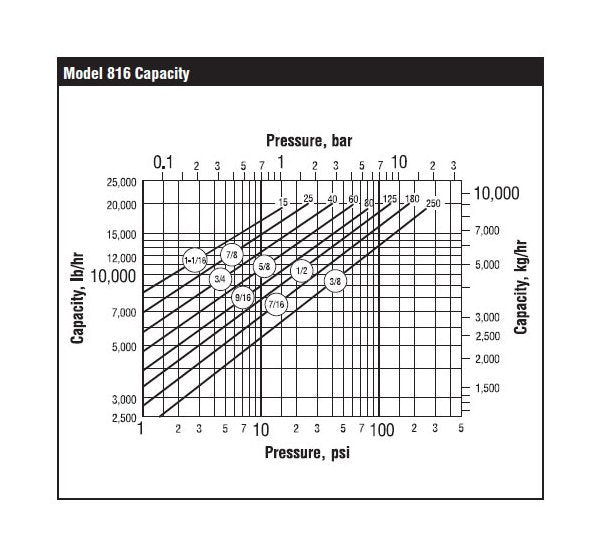

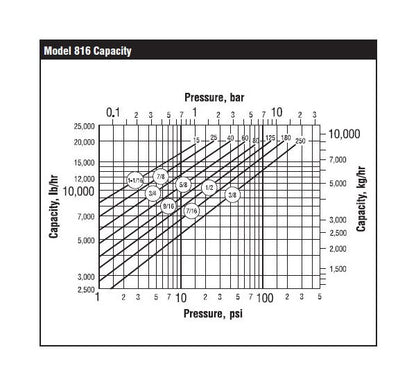

Specifications Capacity
20000 lb/hr | 9072 kg/hr
Specifications Connections
Screwed NPT and BSPT
Specifications Face To Face C
13 in | 330 mm
Specifications Flange Diameter A
11 1/2 in | 292 mm
Specifications Height B
21 5/16 in | 541 mm
Specifications Internals
All stainless steel-304
Specifications Maximum Allowable Pressure At 232c Vessel Design
17 bar
Specifications Maximum Allowable Pressure At 450f Vessel Design
250 psig
Specifications Maximum Operating Pressure
250 psig | 17 bar
Specifications Note
Designs, materials, weights and performance ratings are approximate and subject to change without notice.
Specifications No Of Bolts
8
Specifications Options
Probe connection | Scrub Wire | Stainless Steel Internal Check Valve | Stainless Steel Pop Drain | Thermic Vent Bucket | Thermo Drain
Specifications Pipe Connections
2 in | 2 1/2 in | 50 mm | 65 mm
Specifications Test Plug
2 in | 50 mm
Specifications Test Plug Material
Carbon steel
Specifications Valve And Seat
Hardened chrome steel-17-4PH
Specifications Weight
131 lb | 59.4 kg
