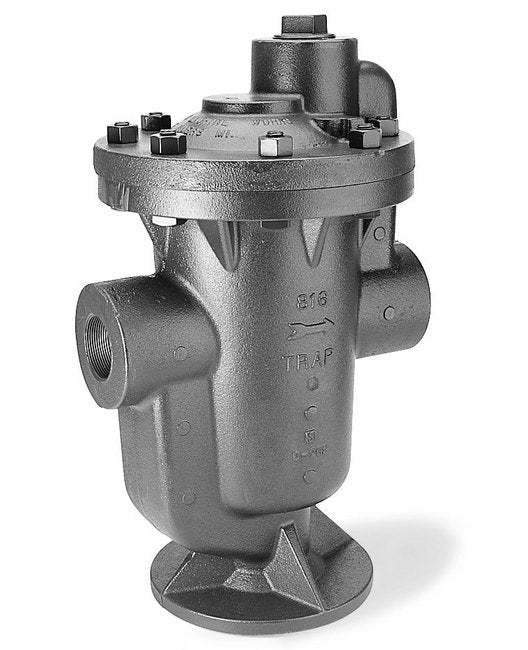

The Armstrong 814-816 Series Inverted Bucket Steam Trap is a rugged cast iron trap designed for horizontal installation, capable of handling pressures up to 250 psig (17 bar) with capacities reaching 20,000 lbs/hr (9,072 kg/hr). Featuring a free-floating stainless steel mechanism and discharge orifice at the top, this trap utilizes a unique leverage system for efficient condensate drainage. The trap's design prevents dirt accumulation, offers continuous air venting, and is resistant to water hammer. With repairable components for maintenance savings, this steam trap is a reliable solution for efficient steam system operation.
Product Specifications
Specifications Body
ASTM A48 Class 30

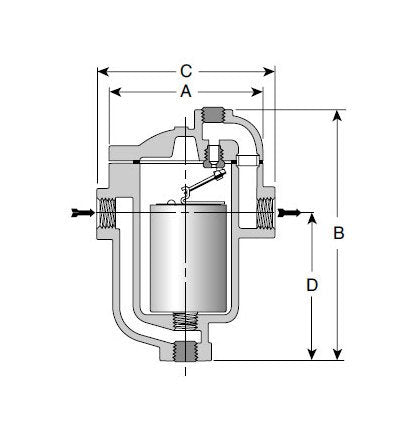

Specifications Bottom To C Inlet D
7 13/16 in | 198 mm

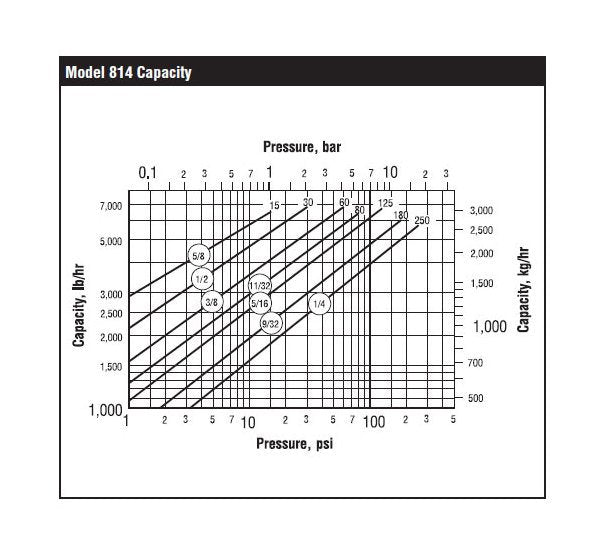

Specifications Capacity
20000 lb/hr | 9072 kg/hr
Specifications Connections
Screwed NPT and BSPT
Specifications Face To Face C
9 in | 229 mm
Specifications Flange Diameter A
8 in | 203 mm
Specifications Height B
13 5/8 in | 346 mm
Specifications Internals
All stainless steel-304
Specifications Maximum Allowable Pressure At 232c Vessel Design
17 bar
Specifications Maximum Allowable Pressure At 450f Vessel Design
250 psig
Specifications Maximum Operating Pressure
250 psig | 17 bar
Specifications Note
Designs, materials, weights and performance ratings are approximate and subject to change without notice.
Specifications No Of Bolts
8
Specifications Options
Probe connection | Scrub Wire | Stainless Steel Internal Check Valve | Stainless Steel Pop Drain | Thermic Vent Bucket | Thermo Drain
Specifications Pipe Connections
1 in | 1 1/4 in | 25 mm | 32 mm
Specifications Test Plug
1 in | 25 mm
Specifications Test Plug Material
Carbon steel
Specifications Valve And Seat
Hardened chrome steel-17-4PH
Specifications Weight
44 lb | 20.0 kg
