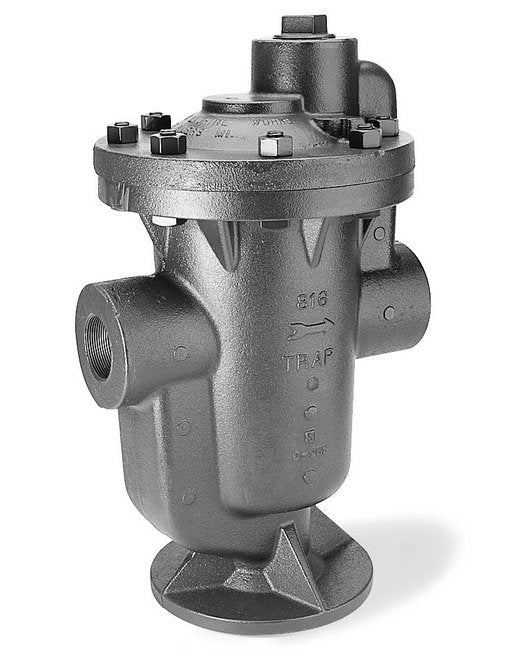

Armstrong 814-816 Series Inverted Bucket Steam Trap
Armstrong 814-816 Series Inverted Bucket Steam Trap
SKU:REG-71ad16
Efficient Armstrong steam trap for reliable condensate drainage in steam equipment. Durable cast iron build, continuous air venting, and water seal for optimal performance.
Regular price
$649.99
Regular price
Sale price
$649.99
Unit price
per
Initiate Order
Armstrong 814-816 Series Inverted Bucket Steam Trap
$649.99
Quantity: 1
Claim Your Seller Account
Armstrong 814-816 Series Inverted Bucket Steam Trap
$649.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Armstrong 814-816 Series Inverted Bucket Steam Trap is engineered for unparalleled condensate drainage efficiency in steam equipment. Constructed with durable cast iron and featuring a free-floating stainless steel mechanism, this steam trap ensures reliable operation under pressures up to 250 psig. With a discharge orifice at the top to prevent dirt accumulation, continuous air venting for optimal performance, and a water seal to prevent steam loss, this trap is designed for longevity and energy savings. The Armstrong 814-816 Series offers capacities up to 20,000 lbs/hr, making it a cost-effective and efficient solution for institutional and government procurement needs.
Product Specifications
Specifications Body
ASTM A48 Class 30

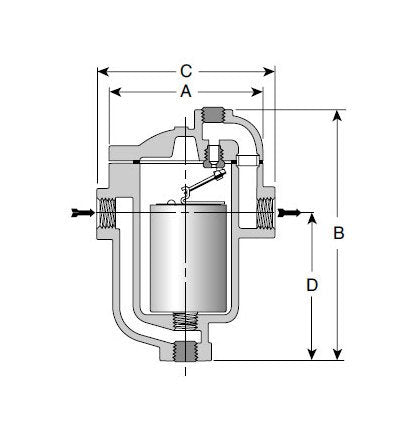

Specifications Bottom To C Inlet D
8 1/16 in | 205 mm

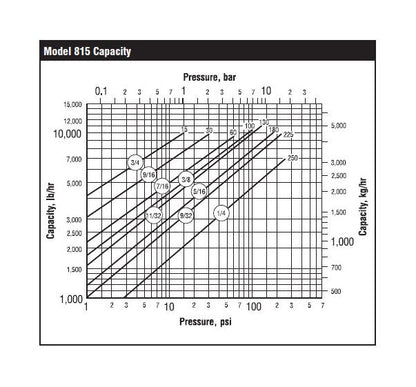

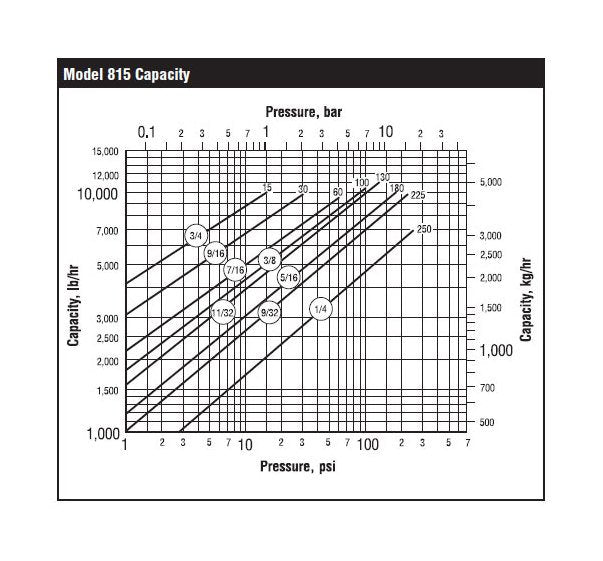

Specifications Capacity
20000 lb/hr | 9072 kg/hr
Specifications Connections
Screwed NPT and BSPT
Specifications Face To Face C
10 1/4 in | 260 mm
Specifications Flange Diameter A
9 in | 229 mm
Specifications Height B
16 1/4 in | 413 mm
Specifications Internals
All stainless steel-304
Specifications Maximum Allowable Pressure At 232c Vessel Design
17 bar
Specifications Maximum Allowable Pressure At 450f Vessel Design
250 psig
Specifications Maximum Operating Pressure
250 psig | 17 bar
Specifications Note
Designs, materials, weights and performance ratings are approximate and subject to change without notice.
Specifications No Of Bolts
8
Specifications Options
Probe connection | Scrub Wire | Stainless Steel Internal Check Valve | Stainless Steel Pop Drain | Thermic Vent Bucket | Thermo Drain
Specifications Pipe Connections
1 in | 1 1/2 in | 1 1/4 in | 2 in | 25 mm | 32 mm | 40 mm | 50 mm
Specifications Test Plug
1 1/2 in | 40 mm
Specifications Test Plug Material
Carbon steel
Specifications Valve And Seat
Hardened chrome steel-17-4PH
Specifications Weight
71 lb | 32.2 kg
