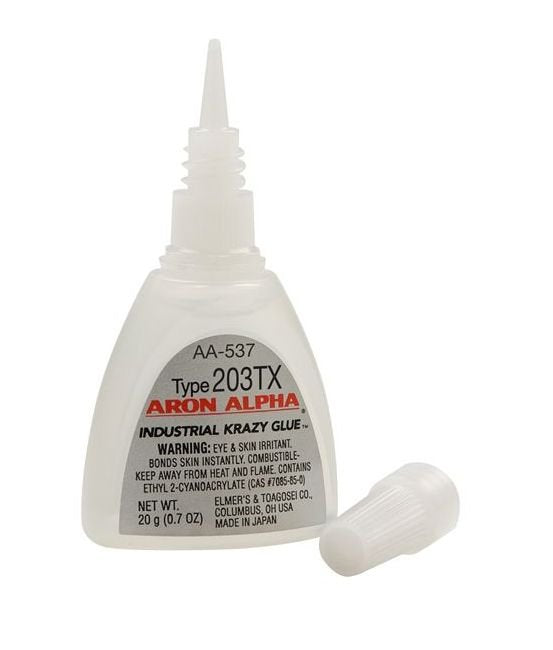

ARON ALPHA Type 203TX Instant Adhesive
ARON ALPHA Type 203TX Instant Adhesive
SKU:INS-d9eab9
Get superior bonding with ARON ALPHA Type 203TX Instant Adhesive. No-run, fast-setting formula for high-speed applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ARON ALPHA Type 203TX Instant Adhesive
$29.99
Quantity: 1
Claim Your Seller Account
ARON ALPHA Type 203TX Instant Adhesive
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the unparalleled performance of ARON ALPHA Type 203TX Instant Adhesive from the thixotropic ARON ALPHA 200TX SERIES. This adhesive offers a no-run, no string formula ideal for high-speed dispensing and automatic assembly applications. With exceptional gap-fill capabilities and a fast set time, it provides reliable bonding strength to a variety of materials including metal, plastic, rubber, and more. Trust ARON ALPHA for efficient manufacturing processes and superior bonding results.
Product Specifications
After Curing Appearance Solid State
Colorless and Transparent
After Curing Hardness Rockwell M Solid State
85
After Curing Softening Point Vicat Solid State
145 ºC | 293 ºF
After Curing Specific Gravity D20 Solid State
1.25
Applications 0
For Wood Work: Suitable for bonding wood. Complete and wide range of adhesive grades available. Suitable for assembling wooden products and repairing. Wooden molds and expensive rare woods. Artificial Marble: For use on artificial marble with various kinds of colors such as transparent, white, black and grey. Color Grades: Able to confirm the coating colors of adhesives. Remover: For use in removing hardened substances and peel off parts of adhesives
Before Curing Appearance Liquid State
Colorless and Transparent
Before Curing Base Monomer Liquid State
Ethyl 2-Cyanoacrylate
Before Curing Flash Point Closed Cup Liquid State
83 ºC | 181 ºF
Before Curing Freezing Point Liquid State
-30 ºC | -22 ºF
Before Curing Specific Gravity D20 Liquid State
1.05
Before Curing Viscosity Liquid State
1000 cps
Bonding Strength Shear 0
(Shear measured in psi for various materials) Material Shear Strengths (psi) (Substrate material bonded to substrate material) 203TX 212TX 214TX 225FTX 252TX 253TX PVC (Rigid)/PVC 1400 1400 1000 1400 1400 PMMA/PMMA 710 710 710 710 710 ABS/ABS 710 710 710 710 710 PC/PC 1000 1000 1000 1000 1000 Natural Rubber/Natural Rubber 57 57 100 70 57 57 Steel/Steel 2800 2800 2800 2840 2800 2800 Copper/Copper 2130 Phenolic Resin/Phenolic Resin 1000 Rigid PVC/Steel 1400 1400 1000 1400 1400 Aluminum/ABS 1000 1000 710 1000 1000 Phenolic Resin/Copper 1000 Neoprene Rubber/Steel 57 57 70 57 57 Neoprene Rubber/ABS 57 57 70 57 57 Balsa Wood/Balsa Wood 70
Bonding Strength Tensile 0
(Tensile measured in psi for various materials) Material Tensile Strengths (psi) (Substrate material bonded to substrate material) 203TX 212TX 214TX 225FTX 252TX 253TX PVC (Rigid)/PVC 5000 5000 3500 3840 5000 5000 PMMA/PMMA 5000 5000 2840 5000 5000 ABS/ABS 3600 3600 2990 3600 3600 PC/PC 5000 5000 3560 5000 5000 Natural Rubber/Natural Rubber 360 360 280 360 360 Steel/Steel 4600 4600 3500 4270 4600 4600 Copper/Copper 4550 Phenolic Resin/Phenolic Resin 4270 Rigid PVC/Steel 2600 2600 2560 2600 2600 Aluminum/ABS 2100 2100 2130 2100 2100 Phenolic Resin/Copper 3560 Neoprene Rubber/Steel 360 360 280 360 360 Neoprene Rubber/ABS 360 360 280 360 360
Characteristics Of Aron Alpha Cyanoacrylate Adhesives Characteri
Instant Bonding :Adhesion is achieved in a few seconds, It is well suited for increasing the efficiency of the manufacturing process. Easy to use: Adhesive is single component and heat treatment are not required. Perfect f
Features 0
No stringiness. Thixotropic property. Fast setting to a variety of materials. Good bonding strength to various materials. Good compatibility to dispensing machines.
Method Of Disposal 0
Expose the adhesives in the containers to moisture and light to let it harden slowly, and to treat it as waste plastics (drastic hardening may result in heating, pay attention to this situation). Please comply with local regulations when dispos
Precaution 0
When in contact with Skin Don't peel it off forcibly, instead use warm water or remover to rub it off. When in contact with Eyes It will damage the eyes to rub the eyes or to use solvents. Must rinse with large amount of water and get medical attention.
Setting Time 0
(in seconds for various materials) Material Setting Time (sec) (Substrate material bonded to substrate material) 203TX 212TX 214TX 225FTX 252TX 253TX PVC (Rigid)/PVC 5 3 5 5 5 10 PMMA (Polymethylmetacrylate)/PMMA 10 3 -- 10 5 15 ABS (Acrylonitrile butadiene styrene)/ABS 15 5 15 15 10 30 PC (Polycarbonate)/PC 15 5 -- 30 15 30 Natural Rubber/Natural Rubber 10 3 5 5 5 10 Steel/Steel 15 5 -- 20 10 30 Copper/Copper -- -- -- 3 -- -- Phenolic Resin/Phenolic Resin -- -- -- 5 -- -- Rigid PVC/Steel 15 5 -- 20 10 30 Aluminum/ABS 15 5 20 30 10 30 Phenolic Resin/Copper -- -- -- 5 -- -- Neoprene Rubber/Steel 15 5 -- 10 10 30 Neoprene Rubber/ABS 15 5 -- 10 10 30 Balsa Wood/Balsa Wood -- -- 10 -- -- 3
Specifications Bonding Atmosphere
22 to 24 ºC | 72 to 75 ºF
Specifications Bonding Strength To Electroplating
Good
Specifications Bonding Strength To Metal
Good
Specifications Bonding Strength To Plastic
Good
Specifications Bonding Strength To Rubber
Good
Specifications Color
Clear
Specifications Form Of Packing 20g
Good
Specifications Form Of Packing 50g
Good
Specifications Gap Fill
0.008"
Specifications Relative Humidity
58-62%
Specifications Series
200TX
Specifications Set Timepvc
10 s
Specifications Set Time Abs
30 s
Specifications Set Time Aluminum
120 s
Specifications Set Time Chroloprene
1 s
Specifications Set Time Epdm
1 s
Specifications Set Time Polycarbonate
45 s
Specifications Set Time Steel
30 s
Specifications Temperature Range
-65 ºF to +180 ºF
Specifications Tensile Shear Strength For Metal
0.064 x 1.0 x 4.0 inch; bonded area 0.5 sq. inch
Specifications Tensile Shear Strength For Plastic And Rubber
0.1 x 1.0 x 4.0 inch; bonded area 0.5 sq.inch
Specifications Unit Size
20 gm bottle
