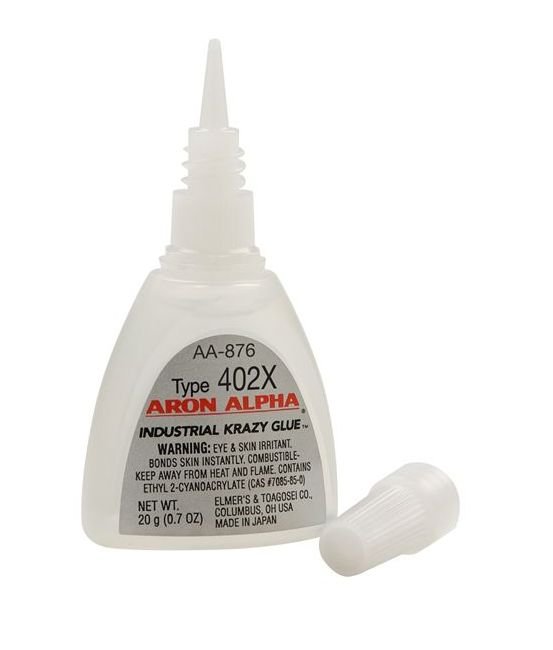

ARON ALPHA Type 402X Instant Adhesive
ARON ALPHA Type 402X Instant Adhesive
SKU:INS-4a39cd
ARON ALPHA Type 402X: A high-strength, impact-resistant instant adhesive with excellent heat resistance up to 250°F. Ideal for metal, electroplating, and plastic bonding applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
ARON ALPHA Type 402X Instant Adhesive
$24.99
Quantity: 1
Claim Your Seller Account
ARON ALPHA Type 402X Instant Adhesive
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the strength and impact-resistance of ARON ALPHA Type 402X Instant Adhesive from the toughened & impact-resistant ARON ALPHA 400 Series. With a tensile shear strength of 5800 psi, this clear adhesive excels in bonding metal, electroplating, and plastic. Its heat resistance up to +250°F and fast setting time make it ideal for a wide range of applications in high-temperature and high-impact environments. Perfect for industrial, institutional, and commercial use.
Product Specifications
Additional Information Additional Information
Aron Alpha 400X Series is suitable for vibrating areas such as motors and bearings. Featured characteristics are heat resistance up to + 250 °F and impact resistance. The slow curing speed affords operator time to adjust and align parts but still cures in a reasonable time for instant adhesive technology.
After Curing Appearance Solid State
Colorless and Transparent
After Curing Dielectric Constant 10mc 50f Solid State
3.5
After Curing Glass Transition Point Solid State
140 ºC | 284 ºF
After Curing Hardness Rockwell M Solid State
85
After Curing Refractive Index N20 Solid State
1.49
After Curing Softening Point Vicat Solid State
145 ºC | 293 ºF
After Curing Specific Gravity D20 Solid State
1.25
Applications 0
For Wood Work: Suitable for bonding wood. Complete and wide range of adhesive grades available. Suitable for assembling wooden products and repairing. Wooden molds and expensive rare woods. Artificial Marble: For use on artificial marble with various kinds of colors such as transparent, white, black and grey. Color Grades: Able to confirm the coating colors of adhesives. Remover: For use in removing hardened substances and peel off parts of adhesives
Before Curing Appearance Liquid State
Colorless and Transparent
Before Curing Base Monomer Liquid State
Ethyl 2-Cyanoacrylate
Before Curing Flash Point Closed Cup Liquid State
83 ºC | 181 ºF
Before Curing Freezing Point Liquid State
-30 ºC | -22 ºF
Before Curing Specific Gravity D20 Liquid State
1.05
Before Curing Viscosity Liquid State
85 cps
Bonding Strength Shear 0
(Shear measured in psi for various materials) Material Shear Strength (psi) 401X 402X 403X Steel 3300 Aluminum 2500 Copper 2800 Stainless Steel 3100 Rigid PVC/Steel 1000 Copper/Phenolic resin 1000 Aluminum/ABS 710 Stainless Steel/Neoprene 70
Bonding Strength Tensile 0
(Tensile measured in psi for various materials) Material Tensile Strength (psi) 401X 402X 403X Steel 5800 Aluminum 5800 Copper 5800 Stainless Steel 6400 Rigid PVC/Steel 2800 Copper/Phenolic resin 4300 Aluminum/ABS 2600 Stainless Steel/Neoprene 360
Characteristics Of Aron Alpha Cyanoacrylate Adhesives Characteri
Instant Bonding :Adhesion is achieved in a few seconds, It is well suited for increasing the efficiency of the manufacturing process. Easy to use: Adhesive is single component and heat treatment are not required. Perfect f
Features 0
Fast setting to various materials Good bonding strength to various materials (especially metal) Good tensile shear strength under heated conditions or after heating High impact strength
Heat Resistance 0
Heat Resistance (psi)a) Measured under heated conditions Temperature (°F) x hours 401X 402X 403X 212 x 6 2800 212 x 12 2800 266 x 6 1400 266 x 12 1400 302 x 6 570 302 x 12 430 b) Measured at room temperature after cooling Temperature (°F) x hours 401X 402X 403X 212 x 6 3300 212 x 12 3300 266 x 6 2700 266 x 12 2600 302 x 6 1800 302 x 12 1600
How To Apply 0
Clean the surfaces to be bonded and then apply Aron Alpha. Be sure to apply Aron Alpha to only one of the surfaces to be bonded, preferably the smaller surface, the surface on which Aron Alpha set time is longer, or the surface looking upward.Common error in applying Aron Alpha is to apply an excessive quantity of Aron Alpha or to apply a too small quantity of Aron Alpha in a wide thin film. In the former case, it is waste of Aron Alpha as well as damage to the appearance of the bonded materials. Also this may briny about chlorosis or solvent cracks. In the latter case, Aron Alpha monomer may harden before the actual bonding starts and this will reduce the bond strength to a great extent. This is particularly the case with rubber materials.Therefore, see that the nozzle of Aron Alpha container is in touch with the surface to be bonded so that you can apply an optimum quantity of Aron Alpha from the container, and immediately after that mate the two surfaces and let Aron Alpha monomer spread between the two surfaces. It is not necessary to have the monomer spread by rubbing motion.Aron Alpha monomer, if kept in the form of a mound on the surface, does not harden for 5 to 10 minutes and retains a practically sufficient bond strength.Optimum quantity of Aron Alpha: With Aron Alpha bonding, the thinner the film of Aron Alpha monomer on the surface to be bonded, the greater is the resultant bond strength.An excessive quantity of Aron Alpha never helps increase the bond strength. On the contrary, it may bring about chlorosis, solvent cracks, or erosion by Aron Alpha monomer of the surface to be bonded.On the other hand, a too scarce quantity of Aron Alpha will also produce an unsatisfactory bond strength, hence defective products.Test results indicate that with Aron Alpha the optimum quantity to be applied at one time is 0.004 - 0.006 g/cm² or 0.03 - 0.05 mm in terms of film thickness.On the basis of the value of 5 mg/cm², you can obtain standard bond strengths as shown in Table 1.Also the optimum quantity applied can be a measure of production control at your plant. That is, from the predetermined bond area of the material to be bonded, you can figure out in advance how many products or parts can' bonded with, for example, an Aron Alpha 20 gram bottle and with the figure thus obtained you can maintain a quantified control of Aron Alpha bonding operation, minimizing the bonding cost and eliminating defective end products.
Impact Strength 0
(kgf cm/cm2) 401X 402X 403X Steel 28 Aluminum 13 Copper 15 Stainless Steel 13 Brass 13
Method Of Disposal 0
Expose the adhesives in the containers to moisture and light to let it harden slowly, and to treat it as waste plastics (drastic hardening may result in heating, pay attention to this situation). Please comply with local regulations when dispos
Precaution 0
When in contact with Skin Don't peel it off forcibly, instead use warm water or remover to rub it off. When in contact with Eyes It will damage the eyes to rub the eyes or to use solvents. Must rinse with large amount of water and get medical attention.
Specifications Anti Shock Resistance
Good
Specifications Boiling Point
60 ºC | 140 ºF
Specifications Bonding Atmosphere
22 to 24 ºC | 72 to 75 ºF
Specifications Bonding Strength To Electroplating
Good
Specifications Bonding Strength To Metal
Excellent
Specifications Bonding Strength To Plastic
Good
Specifications Color
Clear
Specifications Form Of Packing 20g
Good
Specifications Form Of Packing 500g
Good
Specifications Gap Fill
0.006"
Specifications Pressure
5
Specifications Rate Of Line Expansion X 10 4 Solid State
1.1
Specifications Relative Humidity
58-62%
Specifications Unit Size
20 gm bottle
Specifications Volume Dielectric Resistivity Cm 86f
1014
