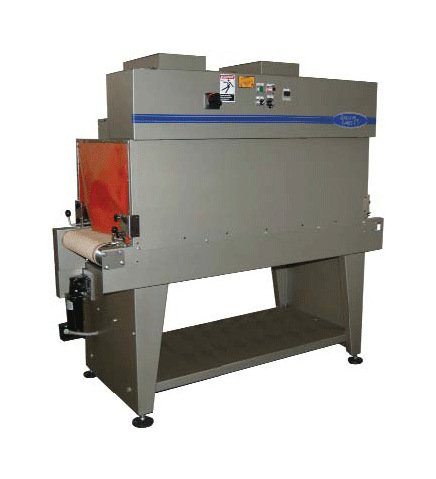

ARPAC MP122245 Mesh Belt Shrink Tunnel
ARPAC MP122245 Mesh Belt Shrink Tunnel
SKU:SHR-a2f1db
Achieve uniform shrink wrapping with precision using the ARPAC MP122245 Mesh Belt Shrink Tunnel. Ideal for various products, it ensures consistent results with minimal maintenance.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
ARPAC MP122245 Mesh Belt Shrink Tunnel
$12,999.99
Quantity: 1
Claim Your Seller Account
ARPAC MP122245 Mesh Belt Shrink Tunnel
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ARPAC MP122245 Mesh Belt Shrink Tunnel is a top-of-the-line solution for achieving uniform shrink wrapping using various shrink films. With a mesh belt conveyor system and precise control features, this tunnel ensures consistent shrinkage on a wide range of products like boxes, CD's/DVD's, cosmetics, food products, games, mailers, and paper products. Equipped with user-friendly controls, energy-efficient heating elements, and heavy-duty components, this tunnel guarantees trouble-free operation with minimal maintenance. The tunnel's compliance with industry standards makes it an ideal choice for businesses seeking high-quality shrink wrapping solutions that meet rigorous procurement requirements.
Product Specifications
Electrical Power Requirements Alternating Current Ac Voltage
240 V
Electrical Power Requirements Current
15 A
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Number Of Phase
3
Features Features
Trouble-free user-friendly controls assure optimum operationCalrod heating elements provide long life, easy maintenance and minimum downtimeHeavy-duty, high quality components and rugged construction provide continuous production with minimal maintenanceAir control baffles allow complete control of air volume from the top, sides and bottomVariable speed conveyor ensures uniform shrink and can be adjusted to meet production requirementsMesh belt allows hot air to reach all surfaces on the package, producing a uniform shrinkThermocouple temperature control provides precise temperature controlCircuit breaker-protected components allow easy troubleshooting and minimal maintenanceRecirculating heating system consumes less electrical energy by minimizing heat loss
Options Options
DC Variable speed blower motors Casters (CRS or S.S.) 208V electrical Stainless steel construction Air motor evacuation system Rigid nylon fiberglass belt Live roller conveyor (available for MPD122260) Recommended spare parts
Specifications Applications
Boxes | CD's/DVD's | Cosmetics | Food products | Games | Mailers | Multipacks | Paper Products
Specifications Belt
PTFE Coated Fiber Glass
Specifications Blower Motor Power
1/2 hp
Specifications Conveyor Belt Width
20 in
Specifications Conveyor Height
36 to 39 in
Specifications Conveyor Length
72 in
Specifications Conveyor Width
31 in
Specifications Motor Conveyor
1/4 hp
Specifications Number Of Blower Motor
1
Specifications Recommended Efficient Temperature Control
200 to 500 ºF
Specifications Speed
0 to 109 ft/min
Specifications Tunnel Opening Height
12 in
Specifications Tunnel Opening Length
45 in
Specifications Tunnel Opening Width
22 in
