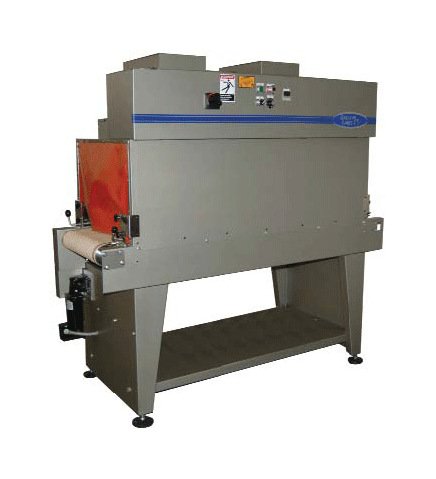

ARPAC MPD122260 Mesh Belt Shrink Tunnel
ARPAC MPD122260 Mesh Belt Shrink Tunnel
SKU:SHR-60e28f
Experience uniform shrinkage with ARPAC's MPD122260 Mesh Belt Shrink Tunnel for efficient heat shrink packaging.
Regular price
$16,899.99
Regular price
Sale price
$16,899.99
Unit price
per
Initiate Order
ARPAC MPD122260 Mesh Belt Shrink Tunnel
$16,899.99
Quantity: 1
Claim Your Seller Account
ARPAC MPD122260 Mesh Belt Shrink Tunnel
$16,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ARPAC MPD122260 Mesh Belt Shrink Tunnel is a powerhouse in heat shrink packaging, offering a uniform shrink using various films like polyethylene, polyolefin, and PVC. Equipped with user-friendly controls, precision temperature regulation, and a recirculating air system, this tunnel ensures optimal product shrinkage on a wide range of sizes. Its heavy-duty construction, Calrod heating elements, and energy-efficient design make it a reliable choice for continuous production with minimal maintenance. Ideal for boxes, CDs/DVDs, cosmetics, food products, games, mailers, and paper products.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrical Power Requirements Alternating Current Ac Voltage
240 V | 480 V
Electrical Power Requirements Current At 240 Volt V Voltage
52 A
Electrical Power Requirements Current At 480 Volt V Voltage
26 A
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Number Of Phase
3
Electrical Power Requirements Power
22 kW
Features Features
Trouble-free user-friendly controls assure optimum operationCalrod heating elements provide long life, easy maintenance and minimum downtimeHeavy-duty, high quality components and rugged construction provide continuous production with minimal maintenanceAir control baffles allow complete control of air volume from the top, sides and bottomVariable speed conveyor ensures uniform shrink and can be adjusted to meet production requirementsMesh belt allows hot air to reach all surfaces on the package, producing a uniform shrinkThermocouple temperature control provides precise temperature controlCircuit breaker-protected components allow easy troubleshooting and minimal maintenanceRecirculating heating system consumes less electrical energy by minimizing heat loss
Options Options
Variable D.C. blower motors Casters (CRS) Casters (S.S.) 208V electrical Stainless steel construction with NEMA 4X (not wash down) Air driven evacuation system Live roller conveyor bed (specify LRPD122260) Falcon conveyor belt Auxiliary E-Stop Model MPD122260 Full Spare Parts Kit Model MPD122260 Minimal Spare Parts Kit Model MPD122260 Standard Spare Parts Kit Spare parts kit purchased within 14 days of machine order UL/CSA approved main electrical cabinet
Specifications Applications
Boxes | CD's/DVD's | Cosmetics | Food products | Games | Mailers | Multipacks | Paper Products
Specifications Belt
PTFE Coated Fiber Glass
Specifications Blower Motor Power
1/2 hp
Specifications Conveyor Belt Width
20 in
Specifications Conveyor Height
36 to 39 in
Specifications Conveyor Length
72 in
Specifications Conveyor Width
31 in
Specifications Motor Conveyor
1/4 hp
Specifications Number Of Blower Motor
2
Specifications Recommended Efficient Temperature Control
200 to 500 ºF
Specifications Speed
0 to 109 ft/min
Specifications Tunnel Opening Height
12 in
Specifications Tunnel Opening Length
60 in
Specifications Tunnel Opening Width
22 in
