ARPAC VT122248 Vision Series Shrink Tunnel with Mesh Belt Conveyor
ARPAC VT122248 Vision Series Shrink Tunnel with Mesh Belt Conveyor
SKU:SHR-123048
ARPAC VT122248 Vision Series Shrink Tunnel: Reliable, energy-efficient shrink packaging solution for retail displays.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
ARPAC VT122248 Vision Series Shrink Tunnel with Mesh Belt Conveyor
$18,999.00
Quantity: 1
Claim Your Seller Account
ARPAC VT122248 Vision Series Shrink Tunnel with Mesh Belt Conveyor
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

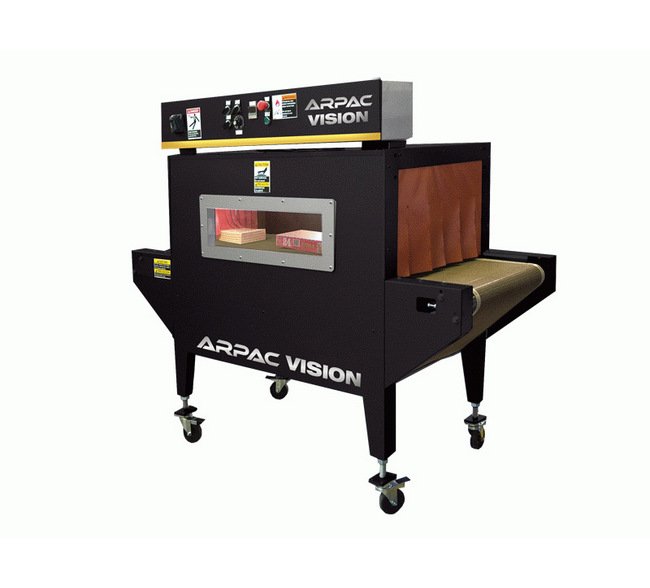

The ARPAC VT122248 Vision Series Shrink Tunnel with Mesh Belt Conveyor is a top-of-the-line industrial packaging solution designed for creating high-quality shrink packages suitable for retail displays. This shrink tunnel features a compact welded steel frame with a scratch-resistant surface, double-insulated shrink chamber, convection style heating system for consistent shrink wrapping, thermocouple temperature control, and circuit breaker protected components for easy troubleshooting. With a variable speed conveyor, precise temperature control, and uniform shrink capabilities, this shrink tunnel ensures reliable and energy-efficient operation for various applications such as cosmetics, hardware, multipacks, paper products, and software.
Product Specifications
Additional Information Additional Information
The Vision Series is a well-insulated shrink tunnel with variable upper and lower air velocity controls, a variable speed conveyor system and a positive, consistently controlled shrink chamber temperature.The shrink chamber utilizes a convection style heating operation instead of a recirculating style heat system. The positive temperature control and the swirling effect of the air velocity from the (vane) fan blades, ensures that a very uniform shrink will occur.
Electrical Power Requirements Alternating Current Ac Voltage
230 V
Electrical Power Requirements Current At 1 Phase
56 A
Electrical Power Requirements Current At 3 Phase
32 A
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Number Of Phase
3
Features Features

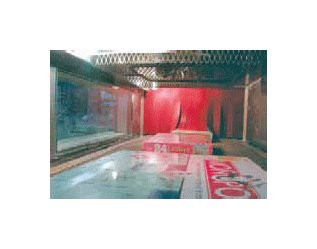

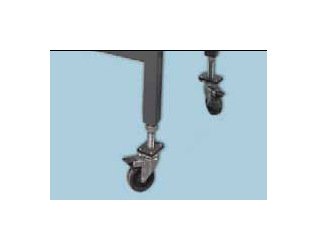

Compact welded steel frame with laser cut components for continuous production with minimal maintenanceSteel-It paint provides a scratch resistant surface and prevents corrosionViewing window on operator side with illuminated shrink chamber for product inspection as it moves through the tunnelDouble insulated shrink chamber for maximum energy efficiency and minimal heat lossConvection style heating system for consistent shrink wrappingVariable upper and lower air velocity controlsTop and bottom calrod heating elements are simple to maintain with minimal downtimeEasy to use operator controlsVariable speed conveyor ensures uniform shrink and can be adjusted to meet production requirementsA mesh belt allows hot air to reach all surfaces on the package, producing a uniform shrinkThermocouple temperature control for precise temperature controlCircuit breaker protected components for easy troubleshooting and minimal maintenanceStandard casters mounted with leveling legs for machine portabilityOptional 480V conversion with step down transformer72" tunnel has 6 heat zones for high speed applicationsOptional stainless steel mesh belt or roller belt
Options Options
Testing of additional products (each) Stainless Steel Construction (Wipe-down)â¦..VT122248 Nema 4X box Stainless Steel Mesh Conveyor Belt - Upgrade from STD PTFE Mesh beltâ¦..VT122248 Live Roller Conveyor Belt - Upgrade from STD PTFE Mesh beltâ¦..VT122248 480V, 3 phase, 60 hertz UL/CSA approved main electrical cabinet Auxiliary E-stop Model VT122248-230V Full Spare Parts Kit Model VT122248-230V Minimal Spare Parts Kit Model VT122248-230V Standard Spare Parts Kit
Specifications Applications
Cosmetics | Hardware | Multipacks | Paper Products | Software
Specifications Conveyor Width
22 in
Specifications Delivery Times
4 to 6 w
Specifications Lower Fan
2
Specifications Shrink Chamber Height
10 in
Specifications Shrink Chamber Length
48 in
Specifications Shrink Chamber Width
24 3/4 in
Specifications Speed
75 ft/min
Specifications Total Length
72 ft
Specifications Upper Fan
1
