Arrow F3 1/2 Inch Particulate Air Filter with 3 Micron Absolute Element
Arrow F3 1/2 Inch Particulate Air Filter with 3 Micron Absolute Element
SKU:ARR-4998a7
Enhance air quality with Arrow F3 1/2' Particulate Air Filter - efficient, durable, and compliant.
Regular price
$119.99
Regular price
Sale price
$119.99
Unit price
per
Initiate Order
Arrow F3 1/2 Inch Particulate Air Filter with 3 Micron Absolute Element
$119.99
Quantity: 1
Claim Your Seller Account
Arrow F3 1/2 Inch Particulate Air Filter with 3 Micron Absolute Element
$119.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

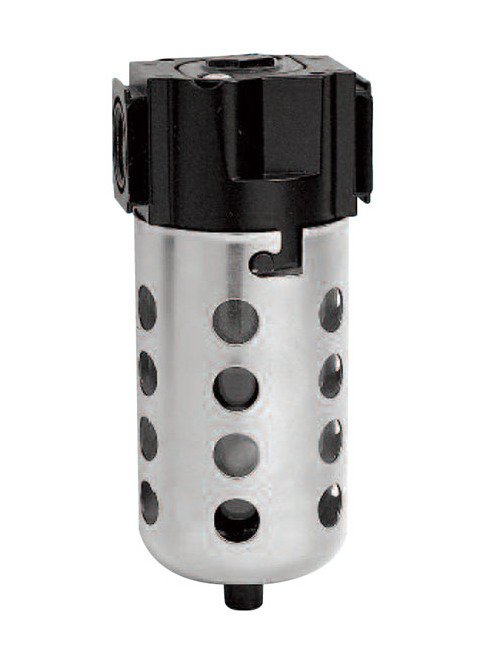

The Arrow Pneumatics F3 Particulate Air Filter with a 3 micron absolute pleated fiber element offers high efficiency in removing harmful oil, water condensate, pipe scale, dirt, and rust from compressed air systems. This filter prevents corrosive damage to equipment and products, ensuring optimal performance. With features like a recleanable 5 oz. polycarbonate bowl, nickel-plated steel bowl guard, and solid rib supports for added strength, this filter meets stringent institutional procurement standards for quality and efficiency in applications such as paint spraying, instrumentation, and pharmaceuticals.
Product Specifications
Features 0
40 micron sintered bronze element offers depth filtration. High strength, recleanable5 oz. polycarbonate bowl with nickel plated steel bowl guardManual push drain on polycarbonate bowlIn-line or modular installationManual 1/8” twist drain on metal bowlsElement media is cellulous and synthetic fibers with a resin binder. The pleated design has 10 times the surface area of sintered nominal rated elements and increases particle collection.End seals consist of 50 durometer Urethane to prevent solid particulate leakage past the element.Solid rib supports add extra strength and prevent element collapse under high differential pressure loads.Flow and pressure drop identical to 40 micron element.The new Arrow 3 micron absolute element is a high efficiency particulate removal element. Unlike nominal rated particulate elements, the 3 micron absolute is qualified to an efficiency rating of 99.5% solid particulate removal at 3 microns, and maintains 95% efficiency ratings to 0.3 microns.
Kits Bowl Kits

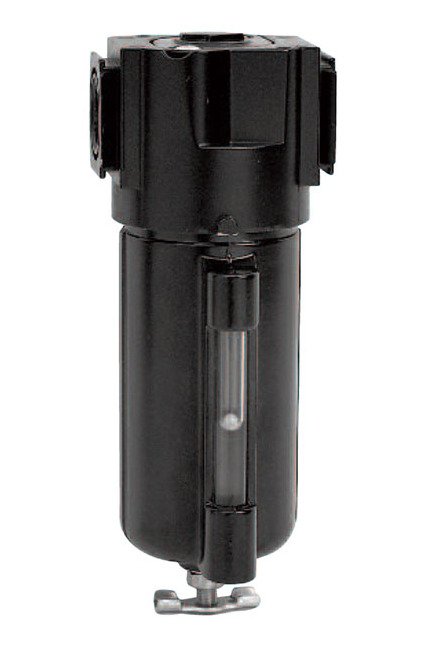

Polycarbonate with guard - BKF35Black coated metal - BKF45MBlack coated metal with sight - BKF45W
Kits Element Kits
40 micron 2-pack - EK355 micron 2-pack - EK35-53 micron absolute 2-pack - EK35-3
Kits Kits
Internal Float Drain Kit - 5200
Kits Mounting Kit
Mounting kit - FBK5
Kits Repair Kit
Repair kit - RKF35Replacement sight kit - WK45
Micron Absolute 5 Micron Nominal Removal Efficiency Rating For 0
28.8 %
Micron Absolute 5 Micron Nominal Removal Efficiency Rating For 1
35.1 %
Micron Absolute 5 Micron Nominal Removal Efficiency Rating For 3
89.7 %
Micron Absolute Arrow 3 Micron Absolute Removal Efficiency Ratin
99.5 %
Micron Absolute Note For Removal Efficiency Rating
Beta Filtration Rating ß3 = 200
Note 0
Important: Particulate filters only remove water in its liquid state. Water vapors will pass through a particulate filter and condense into liquid as the temperature in the air line drops. Liquid condensation may have a harmful effect on certain applications. We recommend installing an ARROW dryer for complete removal of liquid condensation from the system.
Option 0
Add suffix to part number in alpha and numeric order
Option Float Drain
An internal float rises as condensate accumulates in a filter bowl to activate the drain.F - Internal float drain - F352F
Option Overnight Drains
An overnight drain operates when a compressed air system is shut down. It clears accumulated condensate from a filter bowl when pressure falls to 3 psig or less.J - Overnight drain for polycarbonate bowl - F352J Push to manually drain.K - Overnight drain for metal bowl - F352KM Twist to manually drain.M - Black coated metal bowl - F352MW - Black coated metal bowl with sight - F352W-5 - 5 micron element - F352-5-3 - 3 micron absolute element - F352-3Z - Piston drain - F352-Z (Polycarbonate bowl only)
Product Line Information 0

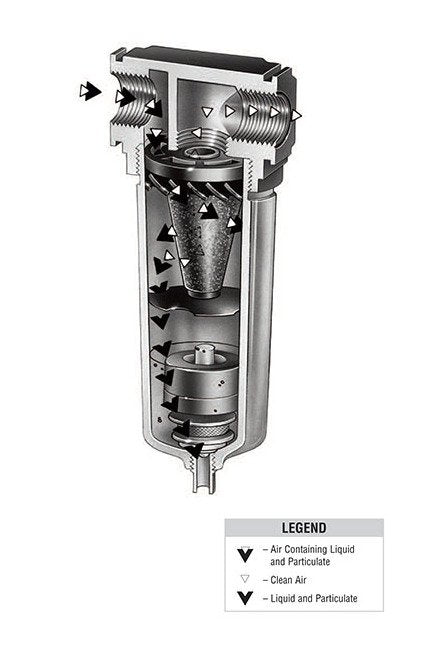

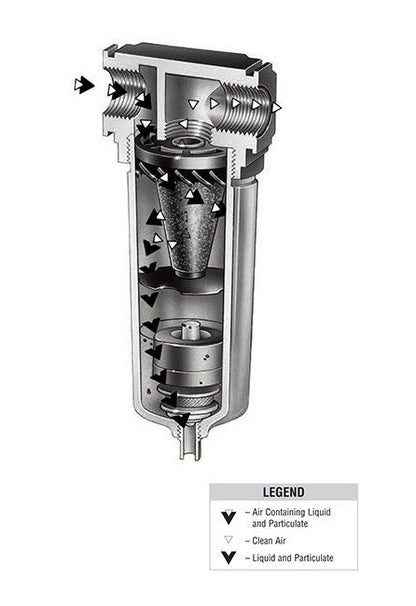

Each filter is equipped with a highly efficient baffling system for maximum bulk liquid and dirt particle removal. The Arrow heavy-duty, cleanable porous bronze element removes fine particles. Particle removal can be tailored to specific needs with either the 40 or 5 micron bronze element. An optional 3 micron absolute pleated fiber element is also offered for extra-fine particle removal.The Arrow 3 micron absolute element is a high efficiency filter element with solid particulate removal in the 90% efficiency range down to 0.28 microns. The Beta efficiency rating is 99.5%. The element is constructed of pleated cloth fibers and rib supports for strength. Both ends have urethane 50 durometer elastomer seals to insure particulate entrapment. The pleated fiber design gives this element 10 times the surface area of similar nominal rated elements. This increased surface area provides a long element life and the same pressure drop characteristics as our current 40 micron element. When used as a pre-filter to a coalescing filter, it will increase the life of the coalescing element by 4 to 6 times.
Specifications Applications
After Filter for Desiccant Dryer | Air Gauging Equipment | Instrument Air
Specifications Baffle Material
Plastic
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
5 oz
Specifications Bowl Guard
Nickel Plated Steel

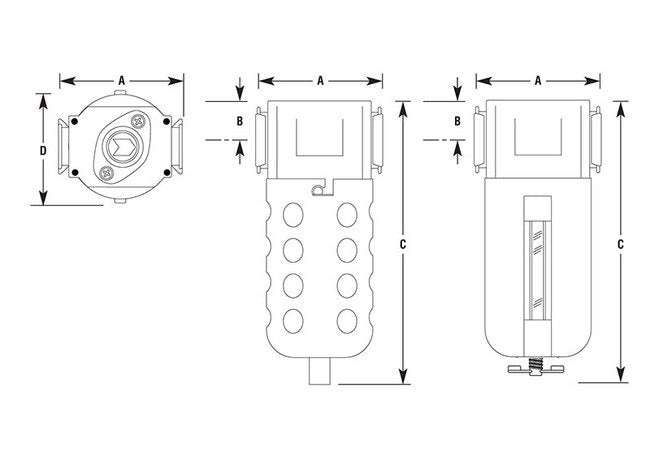

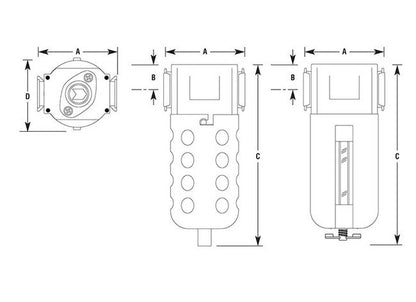

Specifications Dimension A
2-3/4 in
Specifications Dimension B
3/4 in
Specifications Dimension C
6-1/4 in | 2-1/2
Specifications Elements
40 micron sintered bronze standard5 micron sintered bronze3 micron absolute pleated fiber
Specifications Internal Float Drain
Buna N Float
Specifications Maximum Flow
100 scfm
Specifications Maximum Pressure For Piston Drain
150 psig
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Maximum Supply Pressure For Polycarbonate Bowl
250 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Zinc, Black E Coated
Specifications Note For Internal Float Drain
Limits bowl temperature and pressure rating.
Specifications Pipe Size
1/2 in
Specifications Vane Material
Plastic
