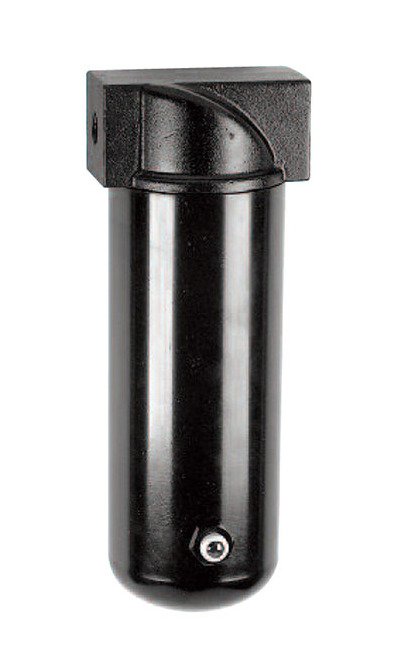

The Arrow Pneumatics F3 High Flow Particulate Air Filter is a critical component for maintaining clean compressed air systems. Designed to remove harmful contaminants like oil, water condensate, dirt, and rust, this filter ensures optimal performance and longevity of compressed air equipment. With a maximum flow rate of 1300 scfm and a durable metal bowl construction, this filter offers superior protection for applications such as paint spraying, instrumentation, and pharmaceuticals. The inclusion of a 3 micron absolute pleated fiber element enhances filtration efficiency, guaranteeing a cleaner air supply for your sensitive operations.
Product Specifications
Features 0
40 micron standard element offers depth filtration for 1-1/2" and 2". High strength, recleanable.Metal bowl is standard1/4” NPT twist drain
Kits Bowl Kits
Metal with sight - BKF510WMetal without sight - BKF510Metal with sight - BKF518WMetal without sight - BKF518
Kits Element Kits
40 micron - EKF3N13 micron - EKF3N1-340 micron - EKF3NHF3 micron-EKF3NHF-3
Kits Kits
Float for External Drain - 5200
Kits Repair Kit
Repair kit - RKF3N1, RKF519Replacement sight kit - BSF510
Note 0
Important: Particulate filters only remove water in its liquid state. Water vapors will pass through a particulate filter and condense into liquid as the temperature in the air line drops. Liquid condensation may have a harmful effect on certain applications. We recommend installing an ARROW dryer for complete removal of liquid condensation from the system.
Option 0
Add suffix to part number in alpha and numeric orderD - Differential pressure gauge - F3N1-12DT - External Float Drain - F3N1-12TW - Metal bowl with sight glass - F3N1-12W-3 - 3 micron absolute element - F3N1-12-3
Product Line Information 0

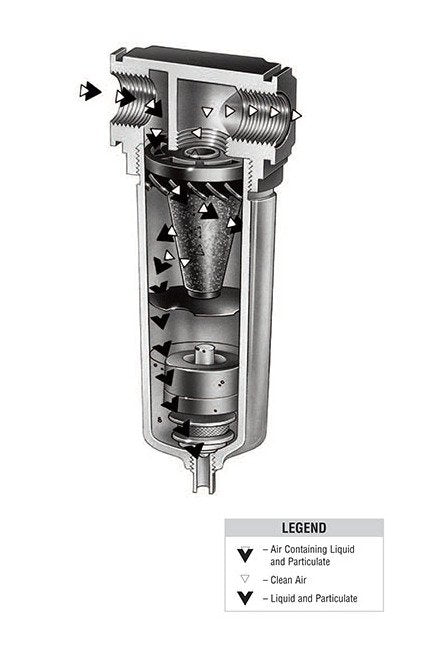

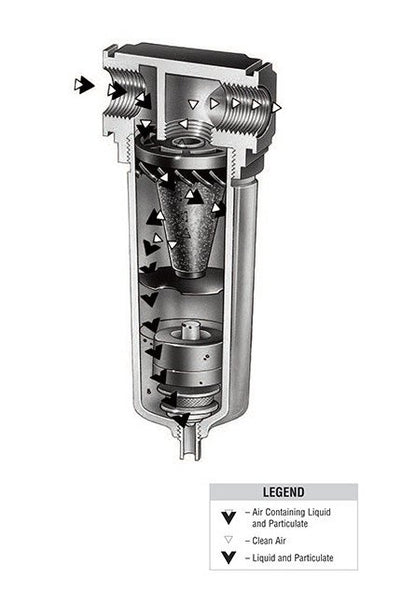

Each filter is equipped with a highly efficient baffling system for maximum bulk liquid and dirt particle removal. The Arrow heavy-duty, cleanable porous bronze element removes fine particles. Particle removal can be tailored to specific needs with either the 40 or 5 micron bronze element. An optional 3 micron absolute pleated fiber element is also offered for extra-fine particle removal.The Arrow 3 micron absolute element is a high efficiency filter element with solid particulate removal in the 90% efficiency range down to 0.28 microns. The Beta efficiency rating is 99.5%. The element is constructed of pleated cloth fibers and rib supports for strength. Both ends have urethane 50 durometer elastomer seals to insure particulate entrapment. The pleated fiber design gives this element 10 times the surface area of similar nominal rated elements. This increased surface area provides a long element life and the same pressure drop characteristics as our current 40 micron element. When used as a pre-filter to a coalescing filter, it will increase the life of the coalescing element by 4 to 6 times.
Specifications Baffle Material
Plastic
Specifications Body
Black Coated Aluminum
Specifications Bowl Capacity
200 oz

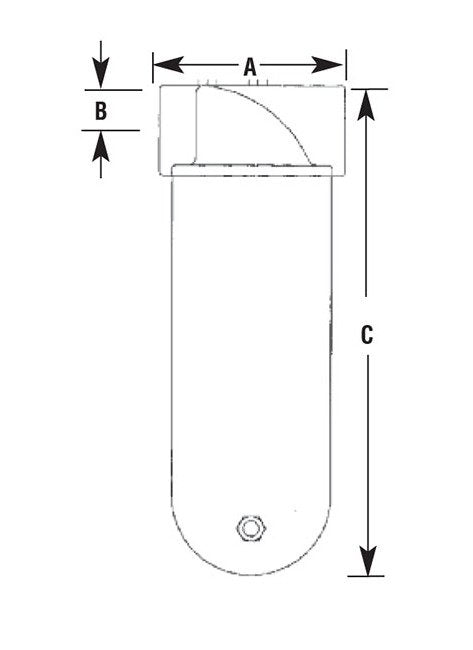

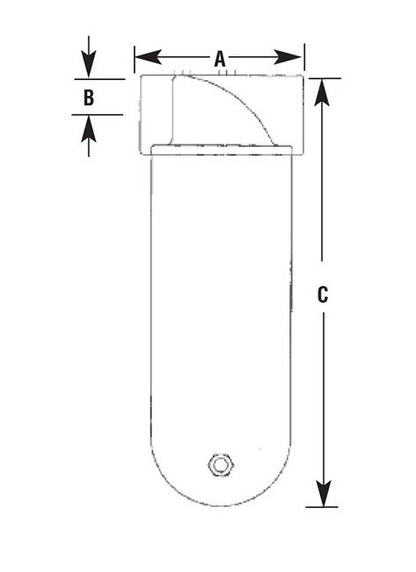

Specifications Dimension A
7-5/8 in
Specifications Dimension B
2-1/4 in
Specifications Dimension C
27-1/2 in
Specifications Elements
40 micron pleated fiber5 micron pleated fiber3 micron absolute pleated fiber
Specifications Maximum Flow
1300 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Black Coated Aluminum
Specifications Metal Bowl Material With Sight
Black Coated Aluminum

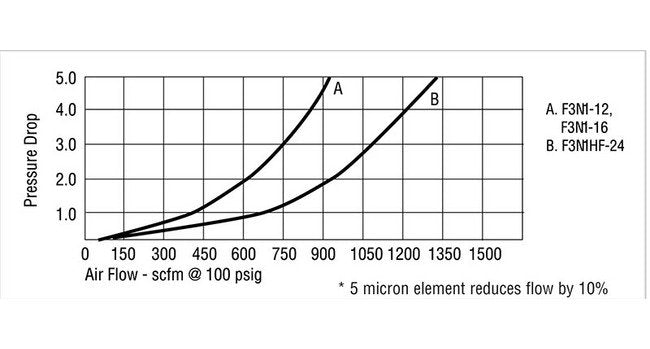

Specifications Note For Maximum Flow
Flow scfm based on 5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
3 in
Specifications Seals
Buna N
Specifications Weight
18 lb
