Arrow F3 Particulate Air Filter, 1/8 in Pipe Size
Arrow F3 Particulate Air Filter, 1/8 in Pipe Size
SKU:ARR-58473b
Enhance air quality and protect equipment with the Arrow F3 Particulate Air Filter. Ideal for paint spraying and pharmaceutical applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Arrow F3 Particulate Air Filter, 1/8 in Pipe Size
$79.99
Quantity: 1
Claim Your Seller Account
Arrow F3 Particulate Air Filter, 1/8 in Pipe Size
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

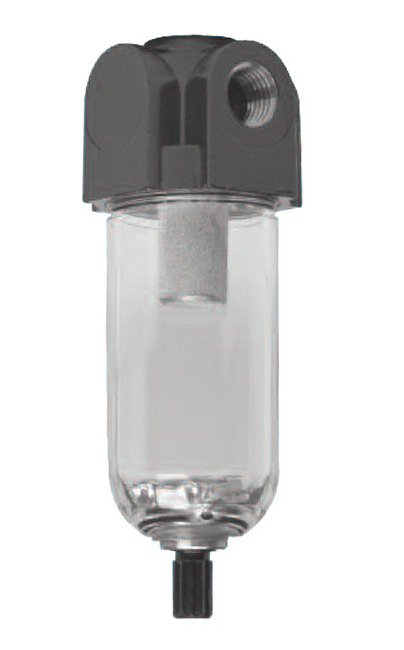

The Arrow F3 Particulate Air Filter is designed to remove harmful oil/water condensate, pipe scale, dirt, and rust from compressed air systems, safeguarding equipment and final products from corrosive damage. With a 20 micron sintered bronze element, this filter offers high efficiency and long element life, making it ideal for applications like paint spraying and pharmaceuticals. Equipped with a manual 1/8" NPT twist drain and a 1 oz polycarbonate bowl, this filter ensures reliable performance and easy maintenance.
Product Specifications
Features 0
20 micron sintered bronze elementHigh strength, recleanable1 oz. polycarbonate bowlManual 1/8" NPT twist drain
Kits Bowl Kits
Polycarbonate - BKF300Polycarbonate with overnight drain- BKF300JMetal - BKF300M
Kits Drain Kit
Piston drain kit - PKF300Mounting Bracket - FBK3
Kits Element Kits
20 micron 2-pack - EKF3005 micron 2-pack - EKF300-5
Note 0
Important: Particulate filters only remove water in its liquid state. Water vapors will pass through a particulate filter and condense into liquid as the temperature in the air line drops. Liquid condensation may have a harmful effect on certain applications. We recommend installing an ARROW dryer for complete removal of liquid condensation from the system.
Option 0
Add suffix to part number in alpha and numeric order
Option Overnight Drains
When a compressed air system is shut down, an overnight drain clears accumulated condensate from a filter bowl when the pressure falls to 3 psig or less.J - Overnight drain for polycarbonate bowl - F300-01J Push to manually drain.K - Overnight drain for metal bowl - F300-01KM Twist to manually drain.M - Metal bowl - F300-01MZ - Piston drain - F300-01Z-5 - 5 micron element - F300-01-5
Product Line Information 0

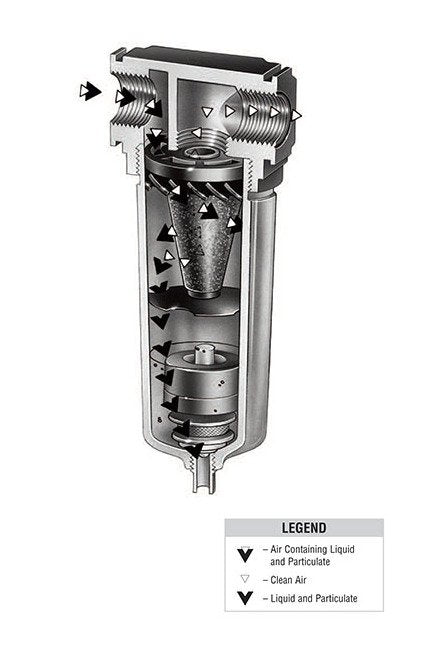

Each filter is equipped with a highly efficient baffling system for maximum bulk liquid and dirt particle removal. The Arrow heavy-duty, cleanable porous bronze element removes fine particles. Particle removal can be tailored to specific needs with either the 40 or 5 micron bronze element. An optional 3 micron absolute pleated fiber element is also offered for extra-fine particle removal.The Arrow 3 micron absolute element is a high efficiency filter element with solid particulate removal in the 90% efficiency range down to 0.28 microns. The Beta efficiency rating is 99.5%. The element is constructed of pleated cloth fibers and rib supports for strength. Both ends have urethane 50 durometer elastomer seals to insure particulate entrapment. The pleated fiber design gives this element 10 times the surface area of similar nominal rated elements. This increased surface area provides a long element life and the same pressure drop characteristics as our current 40 micron element. When used as a pre-filter to a coalescing filter, it will increase the life of the coalescing element by 4 to 6 times.
Specifications Baffle Material
Plastic
Specifications Body
Black E coated zinc
Specifications Bowl Capacity
1 oz

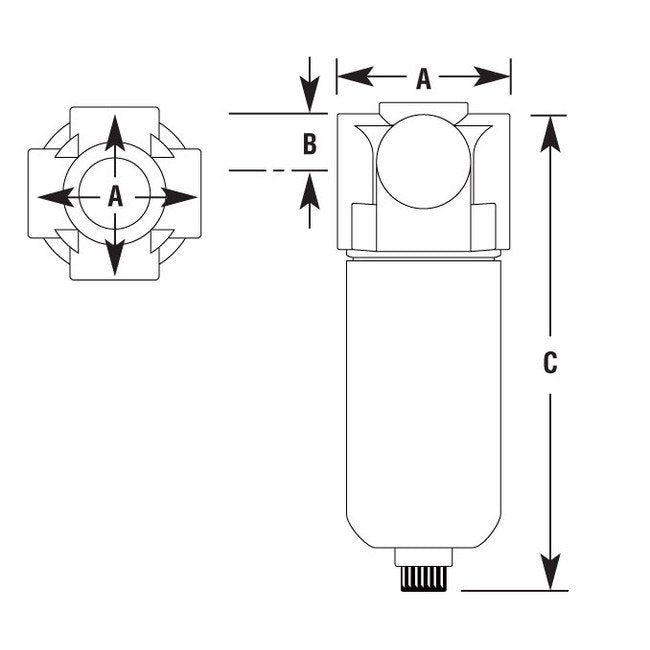

Specifications Dimension A
1-1/2 in
Specifications Dimension B
1/2 in
Specifications Dimension C
4-5/8 in
Specifications Elements
20 micron sintered bronze5 micron sintered bronze
Specifications Maximum Flow
27 scfm
Specifications Maximum Pressure For Metal Bowl
250 psig
Specifications Maximum Pressure For Piston Drain
175 psig
Specifications Maximum Pressure For Polycarbonate Bowl
150 psig
Specifications Metal Bowl Material
Black E Coated Aluminum

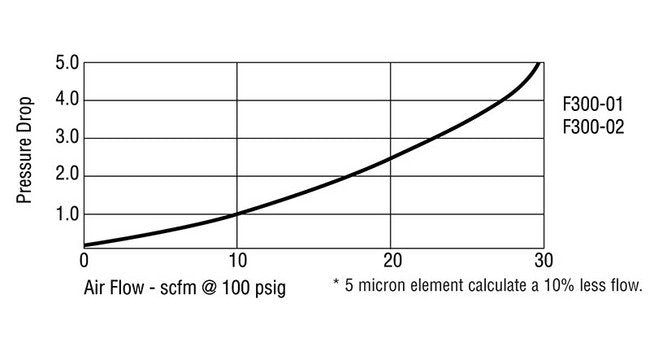

Specifications Note For Maximum Flow
Flow scfm based on 5 psi Δp at 100 psig inlet.
Specifications Note For Piston Drain
Z option is differential drain which opens and ejects water only when a differential pressure is created at the start of air flow. The piston drain lifts up (approx. 1 second) and closes, it will not operate again until the flow stops, then starts back up
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Piston Drain
40 to 160 ºF
Specifications Operating Temperature Range For Polycarbonate Bow
40 to 125 ºF
Specifications Pipe Size
1/8 in
Specifications Seals
Buna N
Specifications Warning
Polycarbonate plastic bowls could rupture if exposed to incompatible chemicals whether inside or outside the bowl. If such chemicals are present, use a metal bowl.
Specifications Weight
0.5 lb
