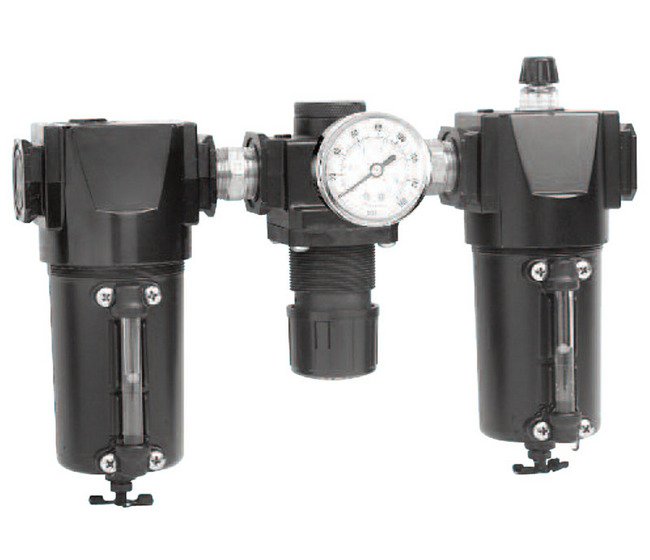

Arrow Pneumatics 1/2 in Pipe Size Lubricator
Arrow Pneumatics 1/2 in Pipe Size Lubricator
SKU:ARR-8fd74a
Optimize equipment longevity with Arrow Pneumatics 1/2 in Pipe Size Lubricator. Trusted brand. Enhanced performance and durability.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Arrow Pneumatics 1/2 in Pipe Size Lubricator
$179.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 1/2 in Pipe Size Lubricator
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Arrow Pneumatics 1/2 in Pipe Size Lubricator is a vital component for maintaining the efficiency and longevity of pneumatically operated equipment. Designed by Arrow Pneumatics, a trusted brand in the industry, this lubricator effectively deposits lubricating oil on moving components to reduce friction and wear. With a 10 oz metal bowl capacity and precise oil particle production, it ensures optimal performance in air tools, valves, and cylinders. Choose from a range of styles including Arrowfog and Ultrafog for varying application needs. Enhance equipment durability and minimize maintenance with this reliable lubrication solution.
Product Specifications
Ordering Information Bowl Type For Combination Numbering System
W-Metal bowl w/sightM-Metal Bowl w/o sight
Ordering Information Filter Style For Combination Numbering Syst
0 - No Filter3 - Particulate4 - 0.09 Micron Oil Removing5 - 0.03 Oilescer6 - Vapor Removal
Ordering Information Lubricator Style For Combination Numbering
0 - No Lubricator3 - Arrowfog4 – Ultrafog
Ordering Information Pipe Size For Combination Numbering System
4-1/2 in | 6-3/4 in
Ordering Information Regulator Style For Combination Numbering S
0 - No Regulator3 - Standard Relieving
Ordering Information Series For Combination Numbering System For
7 - 10 oz. Metal Bowl8 - 20 oz. Metal Bowl
Ordering Information Style
N - Nipple
Product Line Information 0
Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.

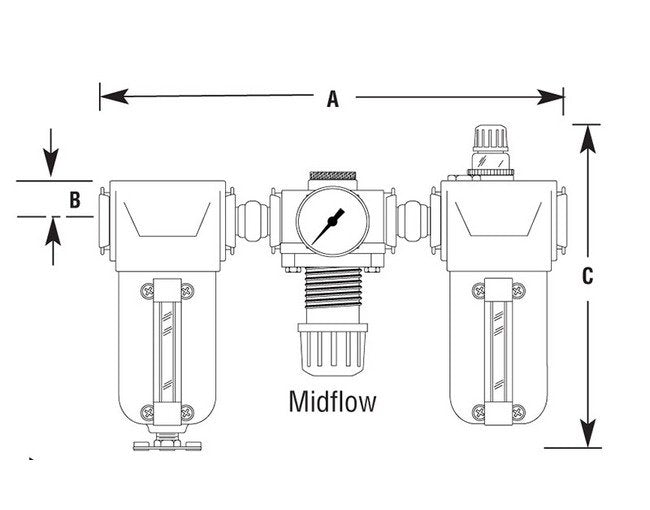

Specifications Approximate Dimension A
12-5/8 in
Specifications Approximate Dimension B
2-1/4 in
Specifications Approximate Dimension C
8-1/2 in
Specifications Approximate Weight
9-1/2 lb
Specifications Bowl Capacity
10 oz
Specifications Brand
Arrow Pneumatics
Specifications Components For Drop Lube
L374W
Specifications Components For Filter
F374W
Specifications Components For Regulator
R374
Specifications Pipe Size
1/2 in
