Arrow Pneumatics 1/2 Inch MidFlow Pressure Regulator
Arrow Pneumatics 1/2 Inch MidFlow Pressure Regulator
SKU:ARR-566321
Maximize equipment performance with the Arrow Pneumatics 1/2 Inch MidFlow Pressure Regulator. Ensure precise pressure control and prolonged device life.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Arrow Pneumatics 1/2 Inch MidFlow Pressure Regulator
$89.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 1/2 Inch MidFlow Pressure Regulator
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

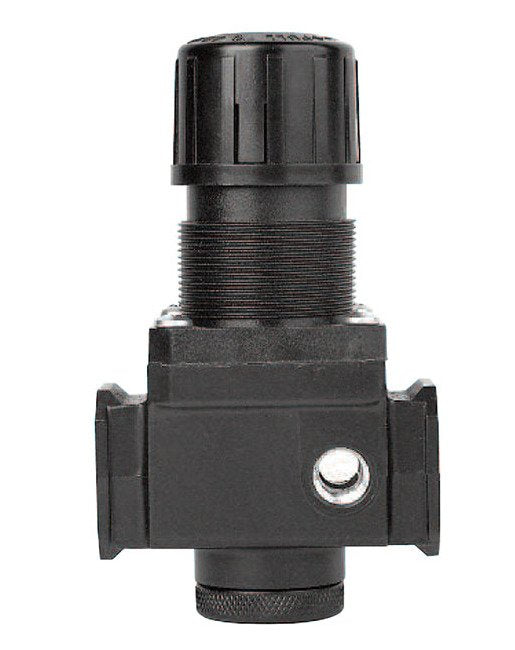

The Arrow Pneumatics 1/2 Inch MidFlow Pressure Regulator is a precise solution for maintaining optimal pressure levels in pneumatic devices. With a maximum flow of 215 ft³/min, this regulator ensures efficient operation and extends the lifespan of equipment. Featuring a black E Coated Aluminum body, glass-filled Nylon bonnet, and Buna N Elastomer seals, it guarantees durability and reliability. The brass seat and efficient aspiration mechanism minimize pressure droop, while the tamper-proof design enhances security. Ideal for industrial settings, this regulator is easily panel-mounted and complies with strict government procurement standards.
Product Specifications

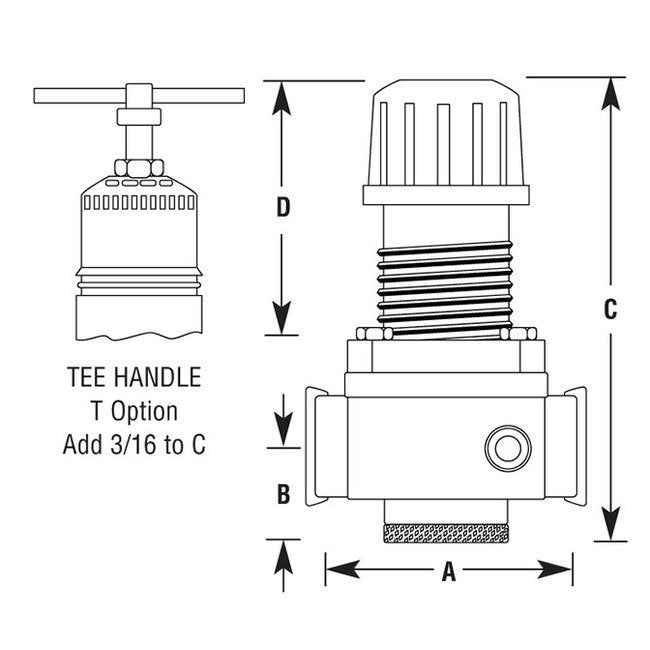

Dimensions Dimension A
3-7/16 in
Dimensions Dimension B
1-13/32 in
Dimensions Dimension C
5-7/8 in
Dimensions Dimension D
2.75 in
Dimensions Dimension E Width
2-1/4 in
Dimensions Weight
1.3 lb
Features 0
Micro finished brass seat to ensure no reduced pressure creepReinforce diaphragm for repeated accuracyMinimal pressure droop due to efficient aspirationThree position non-rising adjustment knob; push to lock, pull to adjust, detach to make tamper resistantRelieving style standardEasily panel mountedTamper-proof cap includedHigh scfm flow due to efficient aspiration
Kits Bracket Kit
Bracket kit - RBK7
Kits Mounting Kit
Panel mounting kit ring only panel hole size 1-3/16" - PKR35Panel mount bracket and ring - PMKR37
Kits Repair Kit
Diaphragm kit relieving - DK35Diaphragm kit Non-relieving - DK35NValve kit - VK37
Product Line Information 0
Arrow's quality Regulators include the Miniature Series which are high performance, low cost regulators for the O.E.M. market and low flow applications up to 25 scfm. Arrow's Tri-Star Series are compact, lightweight regulators engineered for superior performance in a wide range of applications where air flow does not exceed 100 scfm. Arrow's Midflow Series regulators are compact and available in 3/8", 1/2", 3/4" and 1" with air flows exceeding 200 SCFM. Arrow's High Flow Series heavy-duty regulators are for rigorous applications requiring constant pressure for flows up to 700 scfm.The General Purpose Precision Series features state-of-the-art engineering for precision control in critical tolerance applications. The Arrow Precision Regulator lineup can be tailored to fit your specific needs. All Arrow regulators are easily panel mounted. All Arrow regulators are designed with a micro seat finish to ensure no reduced pressure creep.
Specifications Body
Black E Coated Aluminum
Specifications Bonnet
Glass Filled Nylon
Specifications Brand
Arrow Pneumatics
Specifications Full Flow Gauge Port Size
1/4 in

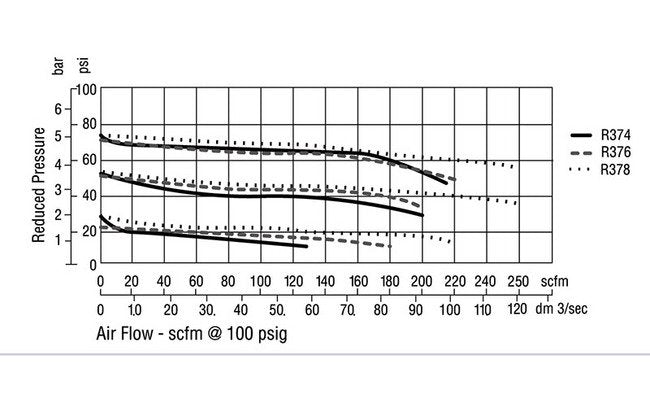

Specifications Maximum Flow
215 ft³/min
Specifications Operating Pressure Range
5 to 125 psig
Specifications Operating Temperature
40 to 120 ºF
Specifications Option
Add suffix to part number in alpha orderB - 2-Position mechanical Lock Knob - R162BG - Gauge (5-160 psi) - R162GI - Instrument pressure - R162I 3 to 20 psi adjustmentL - Low pressure - R162L 3 to 60 psi adjustmentN - Non-relieving - R1P - Panel mount - R162PU - No gauge ports - R162U
Specifications Pipe Size
1/2 in
Specifications Seals
Buna N Elastomer standard
Specifications Seat
Brass
Specifications Supply Pressure
250 psig
