Arrow Pneumatics 1/2 Inch Pipe Size Lubricator
Arrow Pneumatics 1/2 Inch Pipe Size Lubricator
SKU:ARR-933b7c
Enhance equipment performance with the Arrow Pneumatics 1/2 Inch Pipe Size Lubricator. Reduce friction, prolong equipment life, and optimize lubrication for valves, cylinders, and air tools.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Arrow Pneumatics 1/2 Inch Pipe Size Lubricator
$89.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 1/2 Inch Pipe Size Lubricator
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

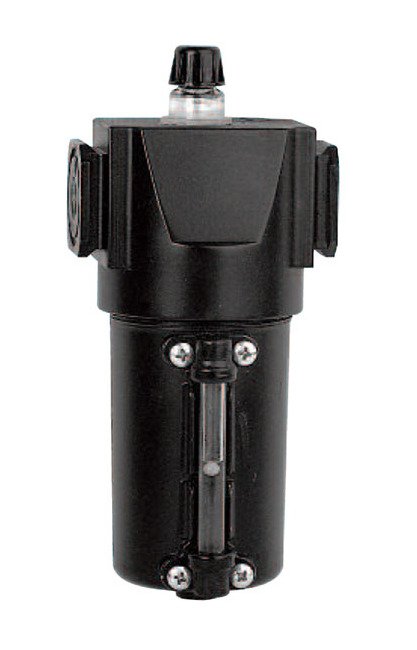

The Arrow Pneumatics 1/2 Inch Pipe Size Lubricator is a crucial component for maintaining and enhancing the performance of pneumatically operated equipment. Designed to reduce friction and wear, this lubricator delivers oil in aerosol form efficiently through compressed air lines. With a maximum flow rate of 142 scfm and a 10 oz bowl capacity, this lubricator ensures optimal lubrication for air tools, cylinders, and valves. Featuring a durable black E coated aluminum body and zinc construction, it can withstand pressures up to 200 psig. The 3-position non-rising adjustment knob allows for easy customization, while the option to convert to an Ultrafog lubricator expands its versatility. Keep your equipment running smoothly and efficiently with the Arrow Pneumatics 1/2 Inch Pipe Size Lubricator.
Product Specifications
Features 0
Oil delivery at low air flow approximately 2 scfmLubricator may be filled without shutting down air line3-position non-rising adjustment knob; push to lock, pull to adjust, detach for tamper resistantCan be converted on-line to Ultrafog lubricator with interchangeable module Part # RKL472 or RKL482
Kits Bowl Kits
Metal bowl with sight - BKL47WMetal bowl without sight - BKL47MMetal bowl with sight - BKL48WMetal bowl without sight - BKL48M
Kits Mounting Kit
Mounting kit - FBK7
Kits Repair Kit
For L370 - RKL372For L380 - RKL382Dome kit - AK35Fill plug kit - FK37Sight kit - WK57
Product Line Information 0
Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
10 oz
Specifications Brand
Arrow Pneumatics

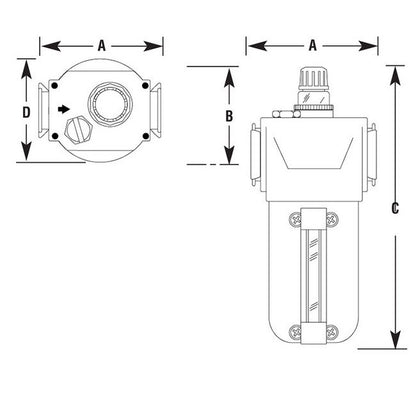

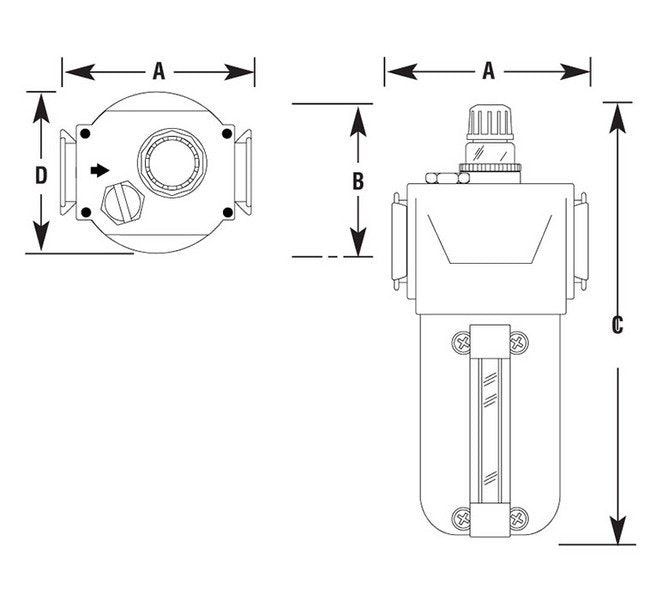

Specifications Dimension A
3-3/4 in
Specifications Dimension B
2-5/16 in
Specifications Dimension C
8-13/32 in
Specifications Dimension D
3 in
Specifications Maximum Flow
142 scfm
Specifications Maximum Pressure For Metal Bowl
200 psig
Specifications Maximum Pressure Range For Metal Bowl With Sight
200 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Zinc, Black E Coated

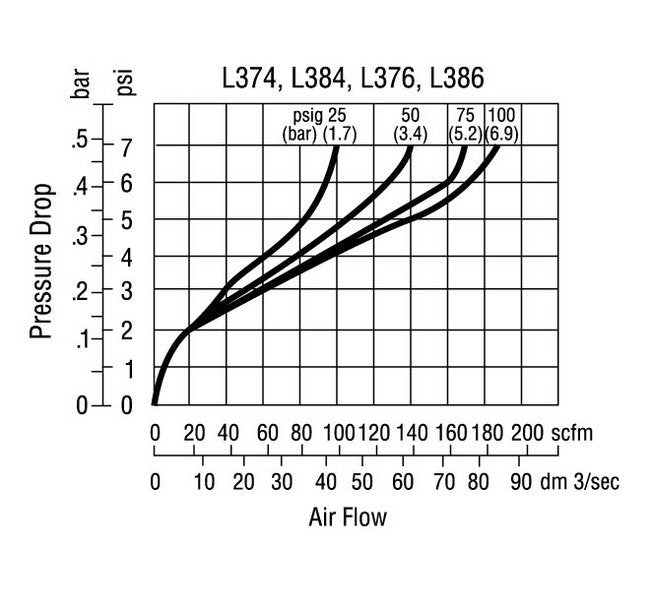

Specifications Note For Maximum Flow
Flow scfm based on 5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Option
Add suffix to part number in alpha orderM - 10 oz. black coated metal bowl - L374M
Specifications Pipe Size
1/2 in
Specifications Recommended Oil
SAE 10 oil or lighter3 scfm to establish drip rateAtomized average 2 micron droplet
Specifications Weight
2.4 lb
