Arrow Pneumatics 1/2in Pipe Size Lubricator
Arrow Pneumatics 1/2in Pipe Size Lubricator
SKU:ARR-6ae3bb
Optimize equipment performance with Arrow Pneumatics 1/2in Pipe Size Lubricator - efficient, versatile, and reliable.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Arrow Pneumatics 1/2in Pipe Size Lubricator
$89.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 1/2in Pipe Size Lubricator
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

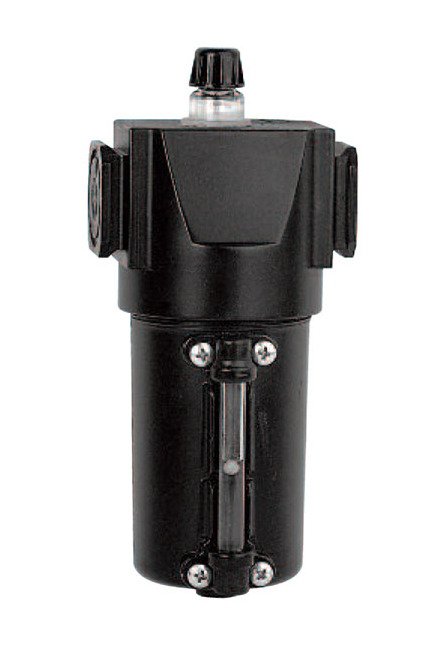

The Arrow Pneumatics Lubricator in 1/2-inch pipe size is designed to optimize performance and extend the lifespan of pneumatically operated equipment. With a maximum flow rate of 142 scfm and a 20 oz bowl capacity, this lubricator ensures efficient lubrication distribution. Featuring an aluminum housing, 3-position non-rising adjustment knob, and the ability to convert to Arrowfog with interchangeable modules, this lubricator offers versatility and ease of maintenance. Arrow offers various lubricator types to suit different applications, making this product a reliable choice that meets institutional procurement standards.
Product Specifications
Features 0
Aluminum housingOil delivery at low air flow approximately 2 scfm3-position non-rising adjustment knob; push to lock, pull to adjust, detach for tamper resistantConvert on-line to Arrowfog with interchangeable module #RKL372 or #RKL382
Kits Bowl Kits
Metal bowl without sight - BKL47MMetal bowl with sight - BKL47W
Kits Mounting Kit
Mounting kit - FBK7
Kits Repair Kit
For L470/L480 - RKL482Dome kit - AK37Fill plug kit - FK47Sight kit - WK57
Product Line Information 0
Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
20 oz
Specifications Brand
Arrow Pneumatics

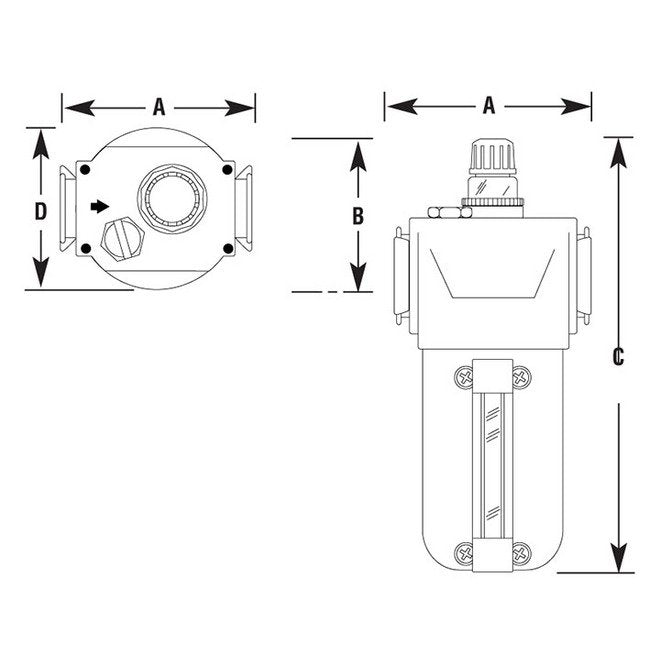

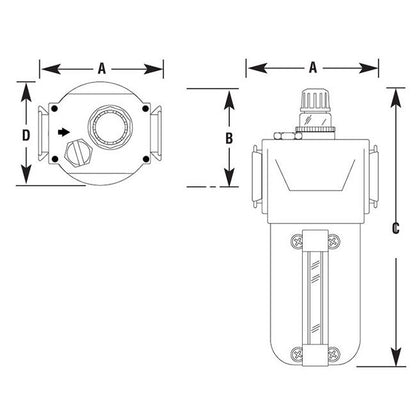

Specifications Dimension A
3-3/4 in
Specifications Dimension B
2-5/16 in
Specifications Dimension C
11-19/32 in
Specifications Dimension D
3 in
Specifications Maximum Flow
142 scfm
Specifications Maximum Pressure For Metal Bowl
250 psig
Specifications Maximum Pressure Range For Metal Bowl With Sight
200 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Zinc, Black E Coated

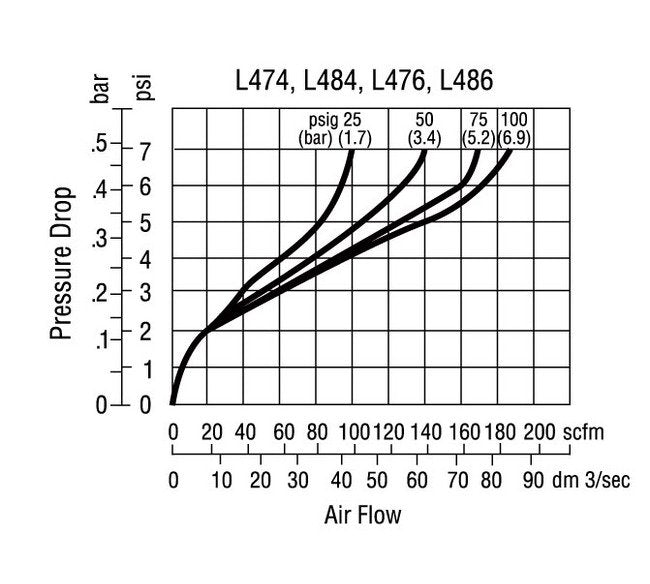

Specifications Note For Maximum Flow
Flow scfm based on 5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 125 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Option
Add suffix to part number in alpha orderM - 10 oz. black coated metal bowl - L474M
Specifications Pipe Size
1/2 in
Specifications Recommended Oil
SAE 10 oil or lighter2 scfm to establish drip rateAtomized average .6 micron1 out of 28 drops travel downstreamCannot be filled under pressure
Specifications Weight
3.3 lb
