Arrow Pneumatics 1/4 in Pipe Size Lubricator

Arrow Pneumatics 1/4 in Pipe Size Lubricator

ARR-2175f8

Enhance equipment performance with Arrow Pneumatics Lubricator - precise oil delivery, reduced friction & wear, maintenance efficiency

$49.99
$49.99
Sale

Initiate Order

Arrow Pneumatics 1/4 in Pipe Size Lubricator

Arrow Pneumatics 1/4 in Pipe Size Lubricator

$49.99

Quantity: 1

Claim Your Seller Account

Arrow Pneumatics 1/4 in Pipe Size Lubricator

Arrow Pneumatics 1/4 in Pipe Size Lubricator

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance the performance and longevity of your pneumatically operated equipment with this Arrow Pneumatics Lubricator. Designed for precise oil delivery, this 1/4 inch lubricator reduces friction, wear, and maintenance needs. Choose from Arrow's Miniature, Arrowfog, Ultrafog, or Arrowick options to suit your specific application requirements. With a compact design and reliable functionality, this lubricator is an essential addition to any air line system.

Product Specifications

Note 0

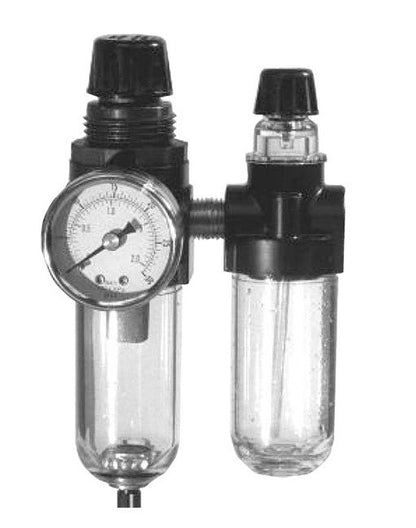

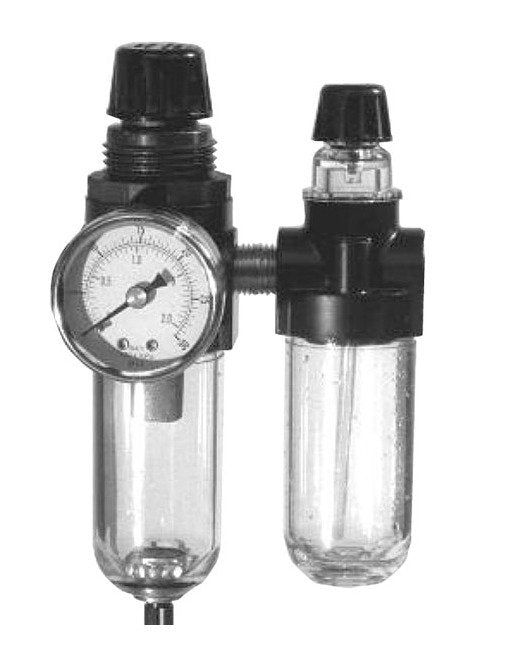

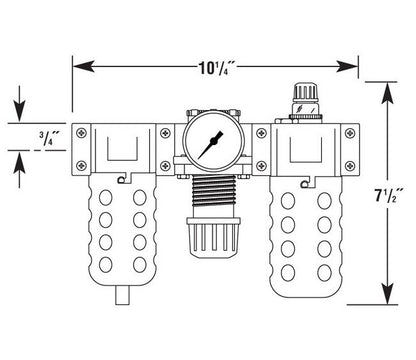

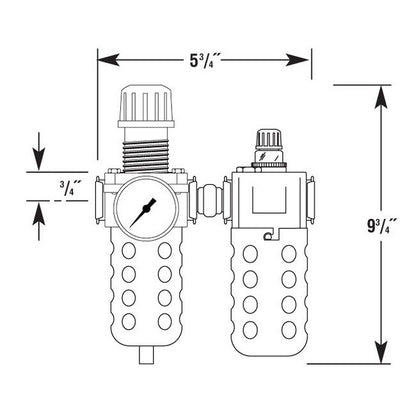

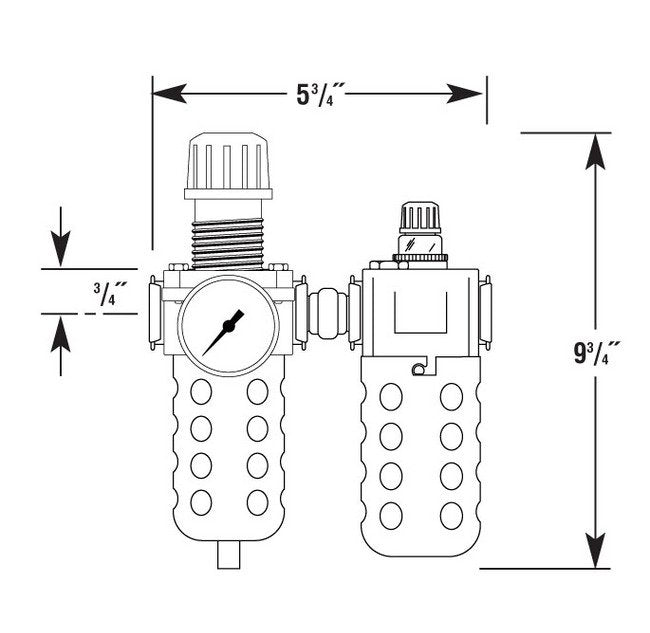

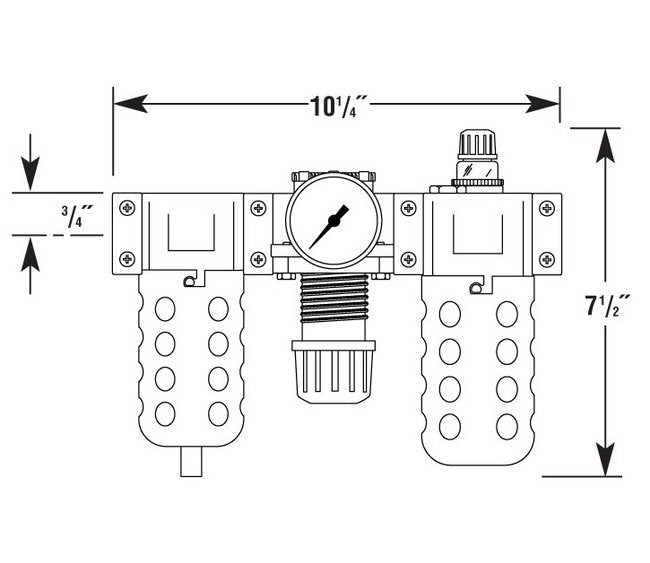

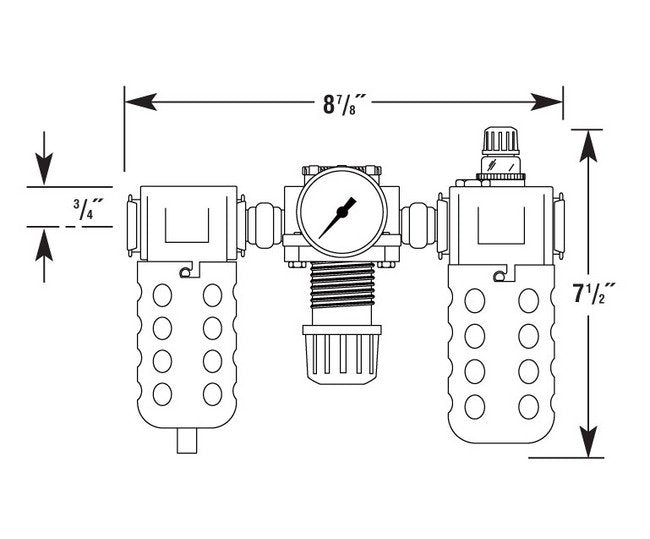

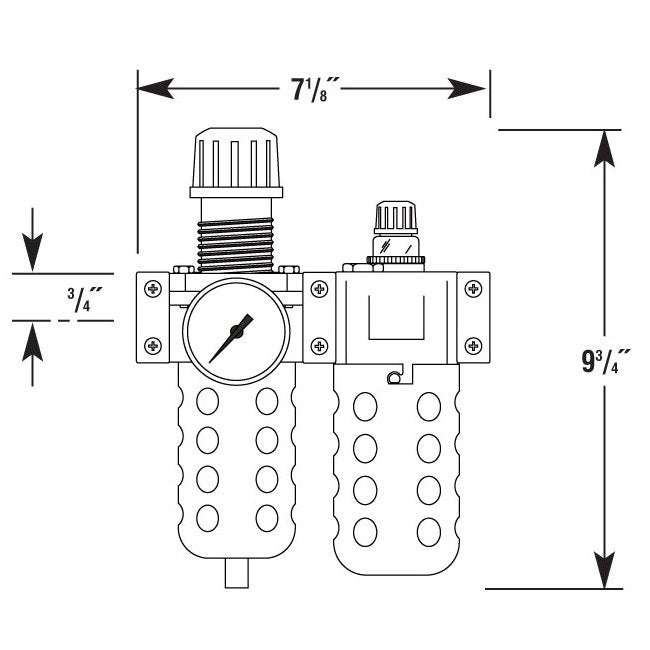

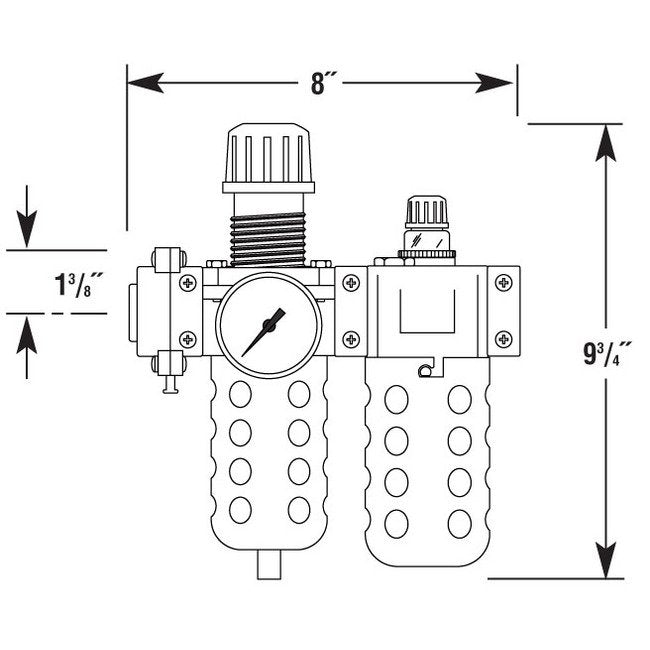

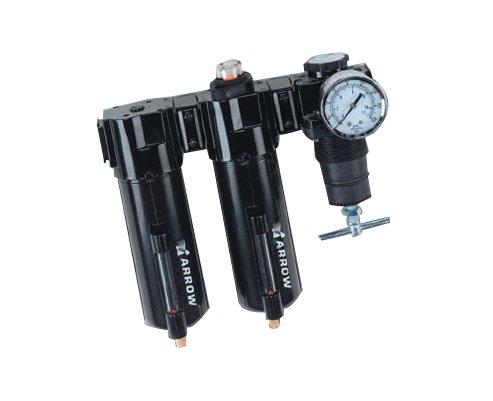

Combinations with Regulators include gauge.Combinations are boxed assembled.
Product Line Information 0

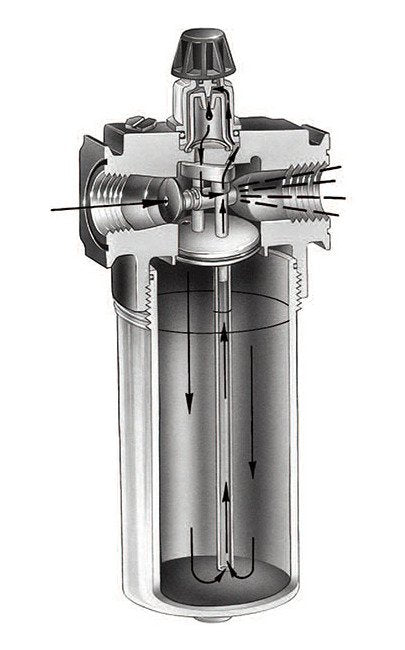

Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.

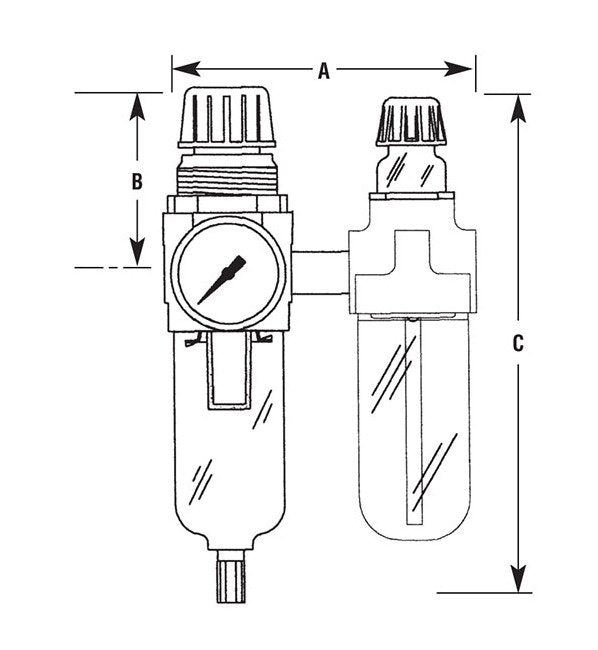

Specifications Approximate Dimension A
3-1/4 in
Specifications Approximate Dimension B
2-3/16 in
Specifications Approximate Dimension C
6-1/4 in
Specifications Approximate Weight
1.1 lb
Specifications Bowl Capacity
1 oz
Specifications Brand
Arrow Pneumatics
Specifications Components For Drop Lube
L182
Specifications Components For Filterregulator
B742G
Specifications Pipe Size
1/4 in
