Arrow Pneumatics 1/4 in Pipe Size Lubricator

Name: Arrow Pneumatics 1/4 in Pipe Size Lubricator
Brand: Marcuse & Son, Inc.
SKU: ARR-159210
Price: 39.99 USD
Availability: OutOfStock

SKU:ARR-159210

Efficiently lubricate air-driven devices with the Arrow Pneumatics 1/4 in Pipe Size Lubricator, prolonging equipment life and reducing maintenance needs.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

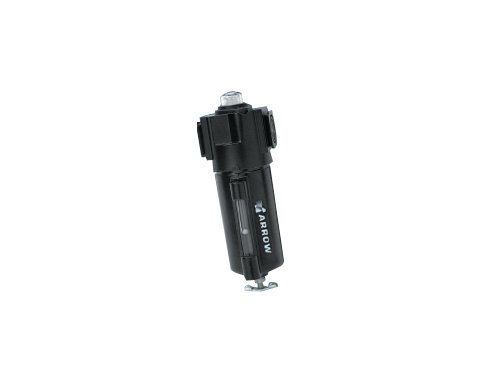

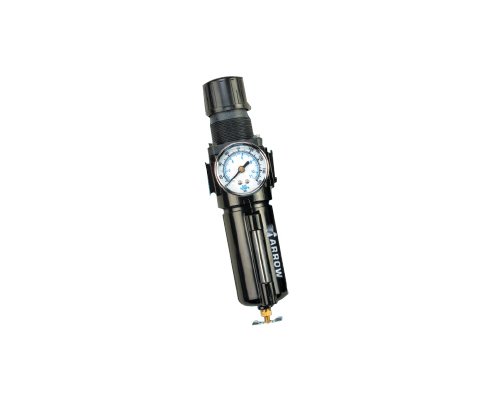

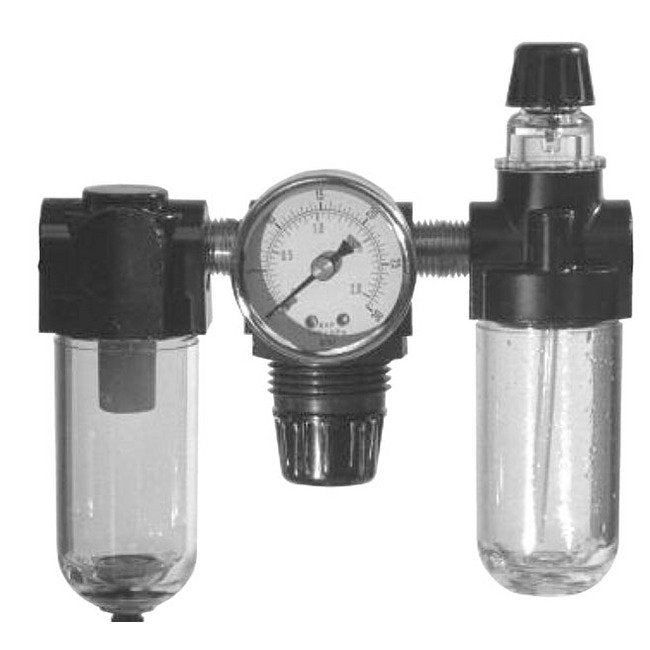

The Arrow Pneumatics 1/4 inch Pipe Size Lubricator is a vital component for maintaining the performance and longevity of pneumatically operated equipment in various applications. Designed by Arrow Pneumatics, a trusted brand in industrial air tools, this lubricator effectively adds lubricating oil into the compressed air line to reduce friction, wear, and equipment maintenance needs. With a durable construction and a capacity of 1 oz, this lubricator ensures efficient lubrication of valves, cylinders, and air tools. Choose from different components like the F300-02 Filter, R162G Regulator, and L182 Drop Lube for a tailored lubrication solution.

Product Specifications

Note 0

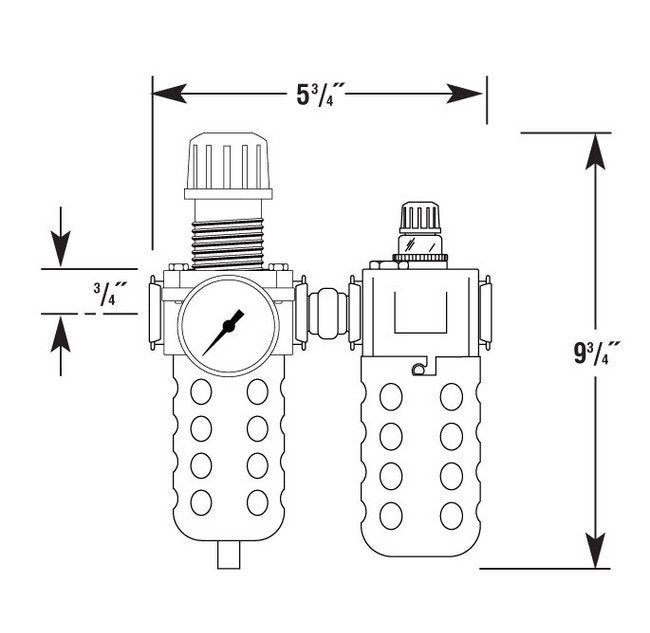

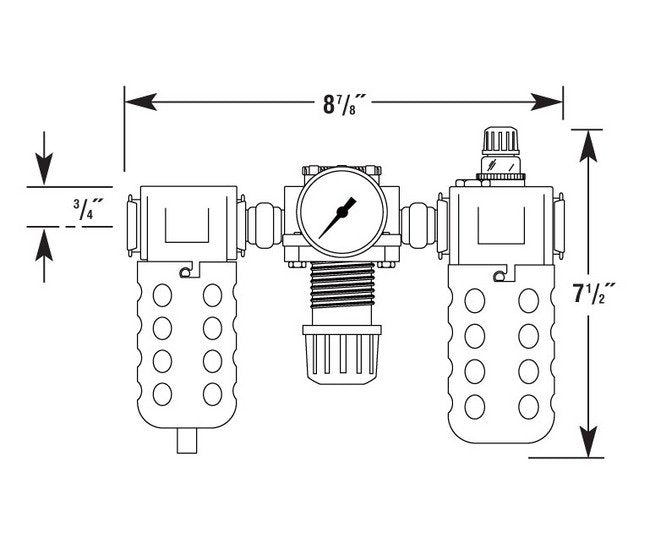

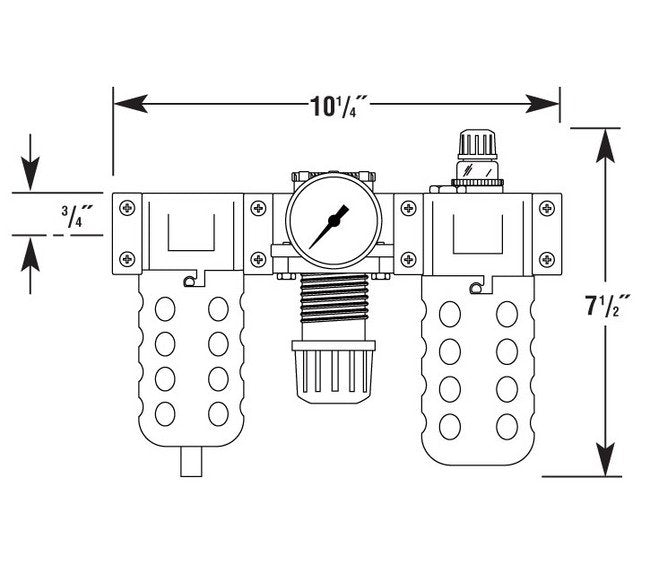

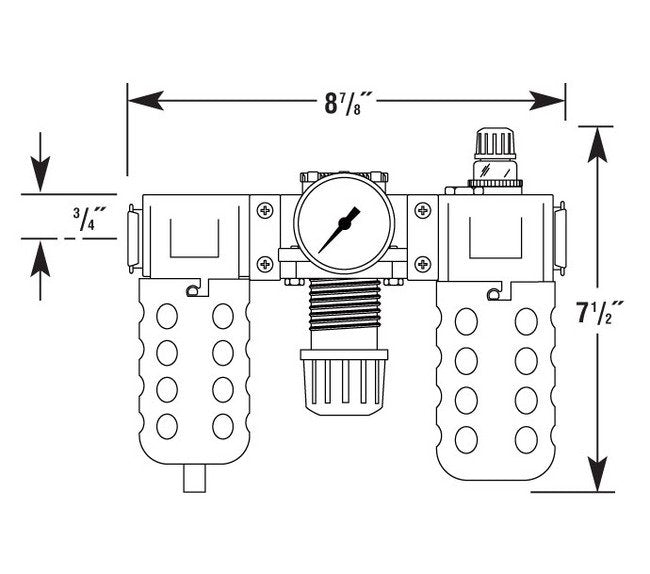

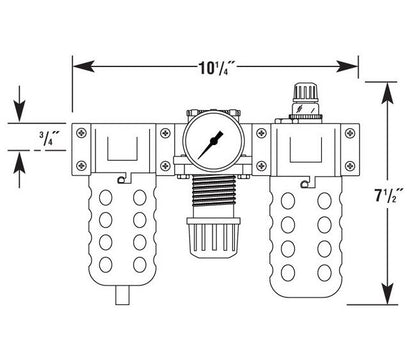

Combinations with Regulators include gauge.Combinations are boxed assembled.

Product Line Information 0

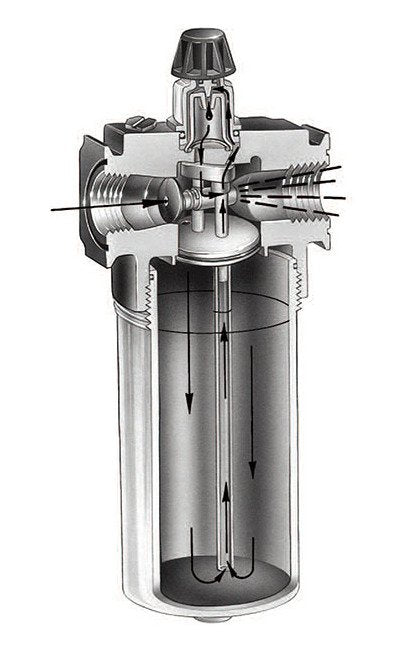

Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.

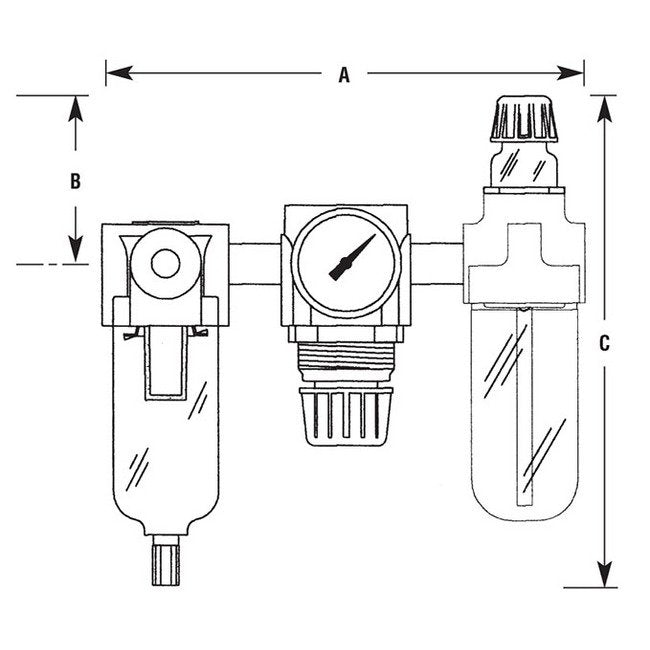

Specifications Approximate Dimension A

5-1/4 in

Specifications Approximate Dimension B

2 in

Specifications Approximate Dimension C

6-1/2 in

Specifications Approximate Weight

1.3 lb

Specifications Bowl Capacity

1 oz

Specifications Brand

Arrow Pneumatics

Specifications Components For Drop Lube

L182

Specifications Components For Filter

F300-02

Specifications Components For Regulator

R162G

Specifications Pipe Size

1/4 in
