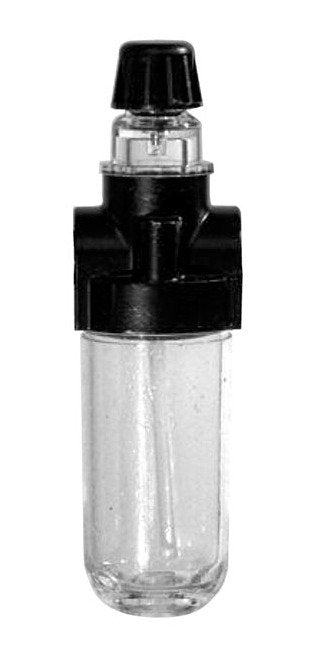

Arrow Pneumatics 1/4 Inch Pipe Size Lubricator
Arrow Pneumatics 1/4 Inch Pipe Size Lubricator
SKU:ARR-1a5048
Enhance equipment performance with Arrow Pneumatics 1/4" Lubricator for valves, cylinders, and air tools. Reliable lubrication, easy maintenance, and durable design.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Arrow Pneumatics 1/4 Inch Pipe Size Lubricator
$59.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 1/4 Inch Pipe Size Lubricator
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Arrow Pneumatics 1/4 Inch Pipe Size Lubricator is specifically designed to provide superior lubrication to valves, cylinders, and air tools in pneumatically operated equipment. With a maximum flow of 16 scfm and a 1 oz bowl capacity, this lubricator ensures efficient distribution of lubricating oil to reduce friction and wear on moving parts. The metal bowl material offers durability and reliability, with easy maintenance and adjustment features. Ideal for institutional and government buyers seeking quality lubrication solutions that meet stringent industry standards.
Product Specifications
Features 0
1 oz. polycarbonate bowlOptional metal bowlVisible drip rateEasy to refillFine adjustment screwRequires only .1 cfm of air flow to operateAutomatically adjusts oil mist delivery with air flow variationsNo tools necessary for lubrication adjustment.
Kits Bowl Kits
Polycarbonate - BK1811Metal - BK1811MRepair kit - RKL1812Dome Kit - AK35
Kits Mounting Kit
Mounting kit - FBK3
Product Line Information 0
Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.
Specifications Body
Zinc, Black E Coated
Specifications Bowl Capacity
1 oz
Specifications Brand
Arrow Pneumatics

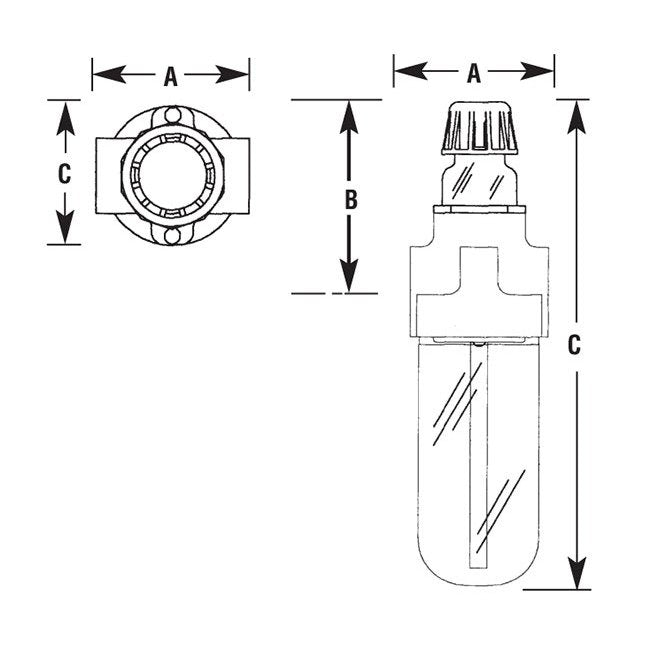

Specifications Dimension A
1-1/2 in
Specifications Dimension B
2 in
Specifications Dimension C
5 in
Specifications Maximum Flow
16 scfm
Specifications Maximum Pressure For Metal Bowl
200 psi
Specifications Maximum Pressure For Polycarbonate Bowl
150 psi
Specifications Maximum Pressure For Polycarbonate Bowl With Bowl
150 psig
Specifications Metal Bowl Material
Black Coated Aluminum

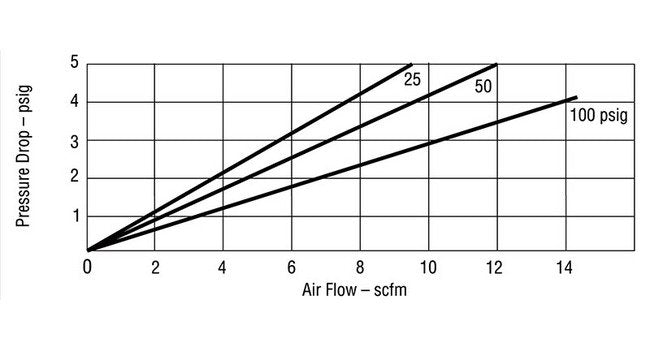

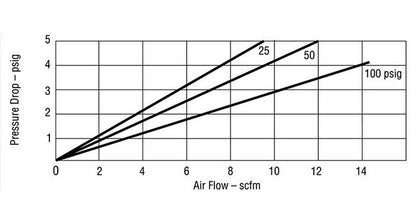

Specifications Note For Maximum Flow
Flow scfm based on 5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Polycarbonate Bow
40 to 125 ºF
Specifications Option
Add suffix to part number in alpha orderM - Metal bowl - L182M
Specifications Pipe Size
1/4 in
Specifications Recommended Oil
SAE 10 oil or lighterAtomized average 2 micron0.1 scfm to establish drip rate
Specifications Warning
Polycarbonate plastic bowls could rupture if exposed to incompatible chemicals whether inside or outside the bowl. If such chemicals are present, use a metal bowl.
Specifications Weight
0.4 lb
