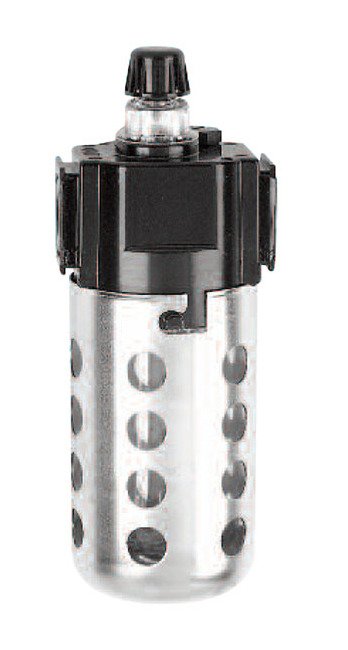

The Arrow Pneumatics 1/4 Inch Pipe Size Lubricator is a vital component for maintaining pneumatically operated equipment. This lubricator, designed by Arrow Pneumatics, effectively reduces friction and wear by delivering lubricating oil into the compressed air line. With a maximum flow of 16 scfm and a durable black E coated aluminum body, this lubricator is built for optimum performance and longevity. Ideal for multiple lubrication points, it ensures smooth operation and extends the lifespan of valves, cylinders, and air tools.
Product Specifications
Features 0
5 oz. polycarbonate bowl w/steel bowl guardAluminum housing, black coatedOil delivery at low air flow approximately 2 scfm3-position non-rising adjustment knob; push to lock, pull to adjust, detach for tamper resistantConvert on-line to Arrowfog with interchangeable module #RKL352In line modular installation
Kits Bowl Kits
Metal - BKL45MMetal with sight - BKL45W

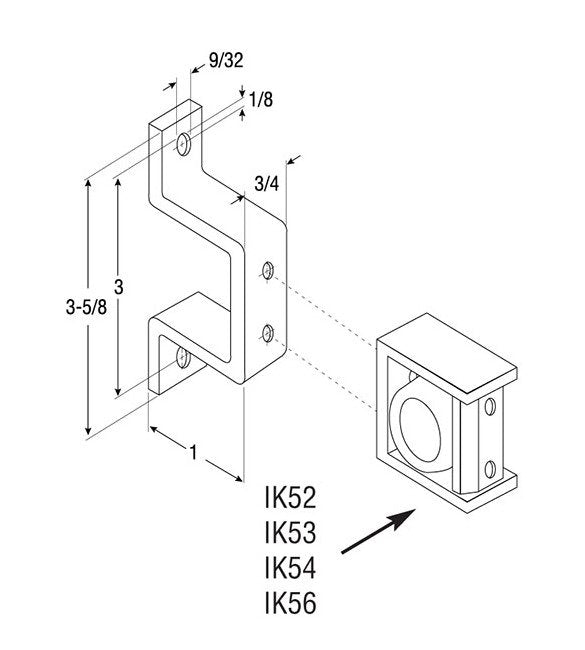

Kits Mounting Kit

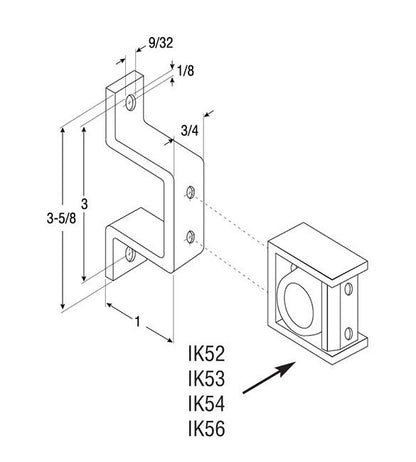

Mounting kit - FBK5
Kits Repair Kit
Adjustment dome kit - AK35Fill plug - FK35For Ultrafog - RKL452Sight kit - WK45
Modular Components Accessories Description Of Dk52 Model Number
1/4 in. NPT Inboard Diverter Kit
Modular Components Accessories Description Of Dk53 Model Number
3/8 in. NPT Inboard Diverter Kit
Modular Components Accessories Description Of Ik05 Model Number
"O" Rings for Modulars
Modular Components Accessories Description Of Ik50 Model Number
Tri-Star Connector Insert
Modular Components Accessories Description Of Ik52 Model Number
1/4 in. NPT Pipe Port Insert
Modular Components Accessories Description Of Ik53 Model Number
3/8 in. NPT Pipe Port Insert
Modular Components Accessories Description Of Ik54 Model Number
1/2 in. NPT Pipe Port Insert
Modular Components Accessories Description Of Ik56 Model Number
3/4 in. NPT Pipe Port Insert
Modular Components Accessories Model Number For Tri Star Connect
IK50
Modular Components Accessories Model Number For Tri Star Diverte
DK52 | DK53
Modular Components Accessories Model Number For Tri Star Pipe Po
IK05 | IK52 | IK53 | IK54 | IK56

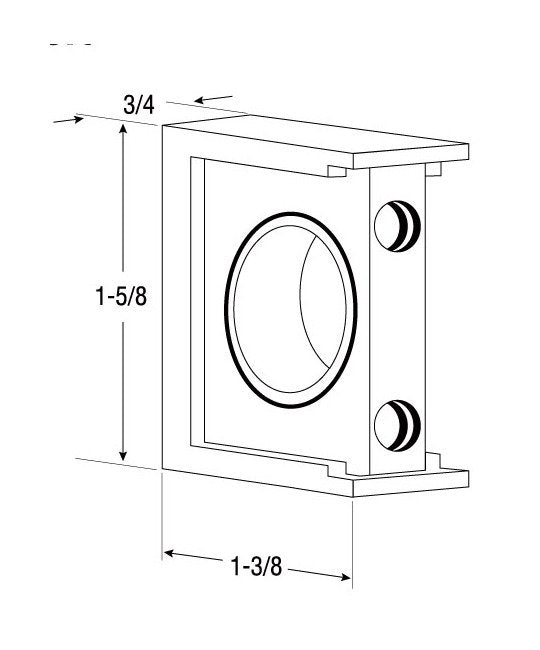

Modular Components Accessories Tri Star Connector Insert
Tri-Star insert slides are designed to guide the insert to an interlocking position on the unit body. The design of the slide also provides a unique safety feature, should the insert plates be removed while the air line is under pressure, the interlocking

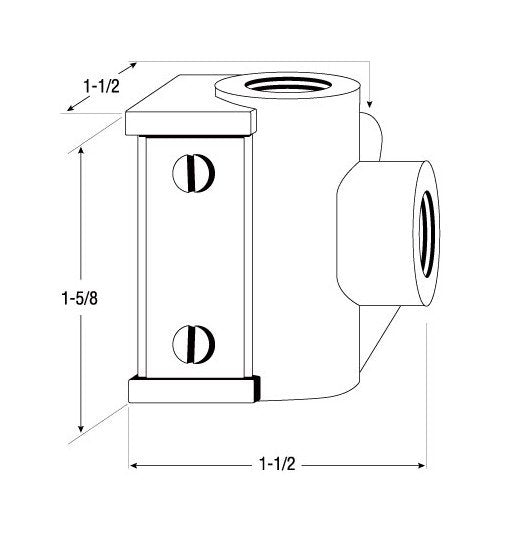

Modular Components Accessories Tri Star Diverter
The unique Tri-Star diverter permits a portion of filtered air to be branched before entering the regulator and sends it to another location; or when installed after the regulator, it will divert a portion of regulated air. The diverter is also used when

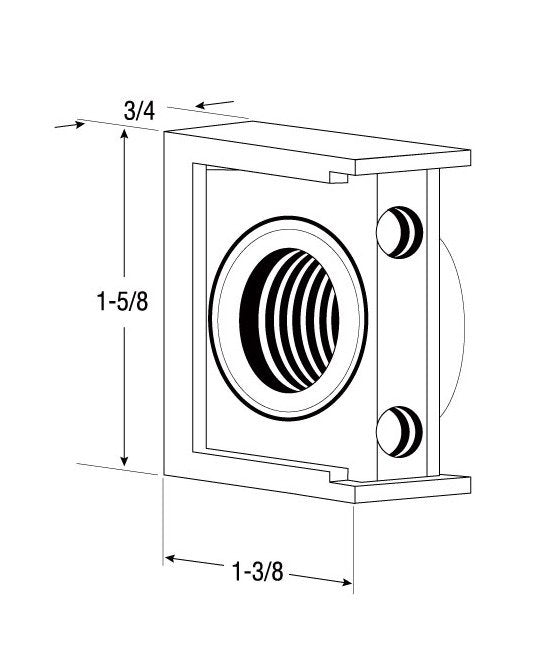

Modular Components Accessories Tri Star Pipe Port Insert
Any of four separate Tri-Star ports permit instant pipe sizing of every Tri-Star filter, regulator and lubricator. Available in 1/4", 3/8", 1/2" , and 3/4" pipe sizes for inlets and outlet ports. Zinc die case metal. A special Tri-Star locking design prev
Product Line Information 0
Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.
Specifications Applications
Multiple Lubrication Points
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
5 oz
Specifications Brand
Arrow Pneumatics
Specifications Description Of Dk54 Model Number For Tri Star Out
1/4 in. NPT Outboard Diverter Kit

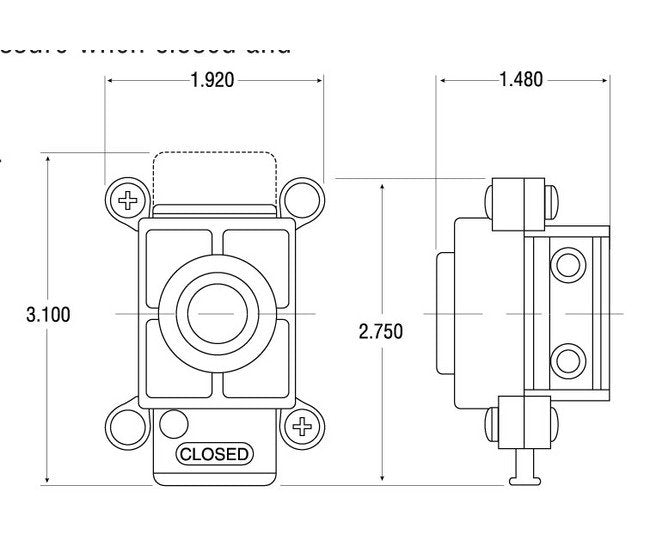

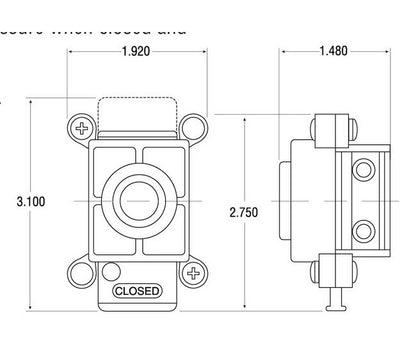

Specifications Description Of V252 Model Number For Osha Lockout
1/4 in. OSHA Lockout Valve
Specifications Description Of V253 Model Number For Osha Lockout
3/8 in. OSHA Lockout Valve
Specifications Description Of V254 Model Number For Osha Lockout
1/2 in. OSHA Lockout Valve

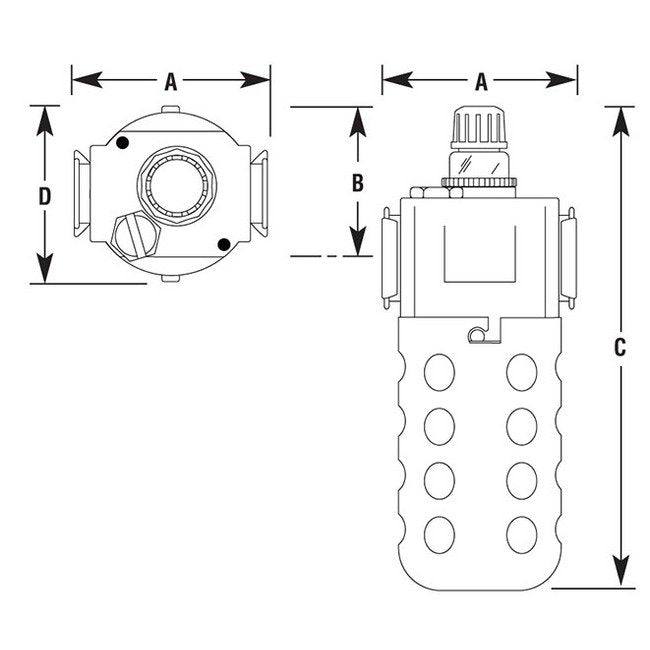

Specifications Dimension A
2-3/4 in
Specifications Dimension B
2-1/8 in
Specifications Dimension C
7 in
Specifications Dimension D
2-1/2 in
Specifications Maximum Flow
16 scfm
Specifications Maximum Pressure For Metal Bowl
200 psig
Specifications Maximum Pressure For Polycarbonate Bowl With Bowl
150 psig
Specifications Maximum Pressure Range For Metal Bowl With Sight
200 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Zinc, Black E Coated
Specifications Model Number For Osha Lockout 3 Way Valve
V252 | V253 | V254
Specifications Model Number For Tri Star Outboard Diverter
DK54
Specifications Pipe Size
1/4 in
