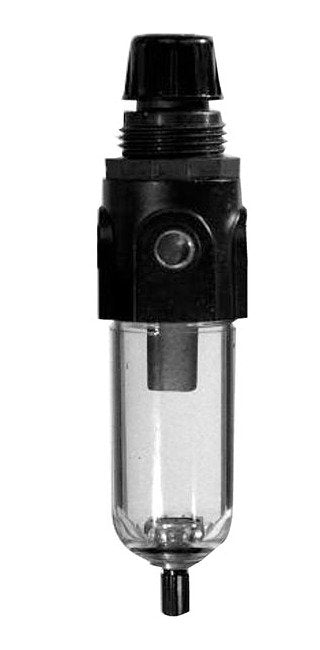

Arrow Pneumatics 1/4" Miniature Integral Pressure Regulator
Arrow Pneumatics 1/4" Miniature Integral Pressure Regulator
SKU:ARR-45f446
Enhance device efficiency with the Arrow Pneumatics 1/4" Miniature Integral Pressure Regulator's precise pressure control and durable construction.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Arrow Pneumatics 1/4" Miniature Integral Pressure Regulator
$99.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 1/4" Miniature Integral Pressure Regulator
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Arrow Pneumatics 1/4" Miniature Integral Pressure Regulator is a precision-engineered device designed to reduce and maintain optimal pressure levels for pneumatic systems. With a maximum flow of 20 ft³/min and a durable construction featuring Zinc-coated body and Glass Filled Nylon bonnet, this regulator ensures efficient operation and longevity. Notable features include a tamper-proof cap, 20 micron sintered bronze elements, and a three-position non-rising adjustment knob for easy customization. Ideal for OEM, low flow, and high-performance applications, this regulator guarantees consistent and reliable pressure control, minimizing air wastage and maximizing equipment lifespan.
Product Specifications

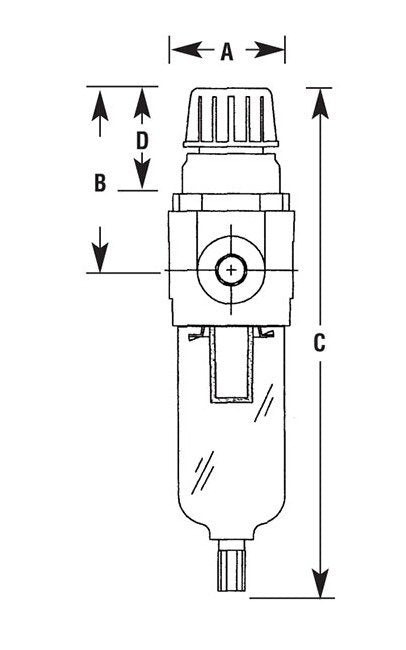

Dimensions Dimension A
1-5/8 in
Dimensions Dimension B
2-3/16 in
Dimensions Dimension C
6-1/4 in
Dimensions Dimension D
1-1/4 in
Dimensions Weight
0.6 lb
Features 0
Micro seat finish to ensure no reduced pressure creepDiaphragm operationRelieving style standardThree position non-rising adjustment knob; push to lock, pull to adjust, detach to make tamper resistantEasily panel mountedTamper-proof cap included20 micron filter
Kits Bowl Kits
Polycarbonate bowl - BKF300Metal bowl - BKF300M
Kits Diaphragm Kit
Relieving diaphragm - RK260
Kits Element Kits
20 micron element 2-pac - EKF300Regulator bonnet repair - RB260
Kits Mounting Kit
Mounting bracket and ring - BR1611Mounting bracket ring only - PK1611
Product Line Information 0
Arrow's quality Regulators include the Miniature Series which are high performance, low cost regulators for the O.E.M. market and low flow applications up to 25 scfm. Arrow's Tri-Star Series are compact, lightweight regulators engineered for superior performance in a wide range of applications where air flow does not exceed 100 scfm. Arrow's Midflow Series regulators are compact and available in 3/8", 1/2", 3/4" and 1" with air flows exceeding 200 SCFM. Arrow's High Flow Series heavy-duty regulators are for rigorous applications requiring constant pressure for flows up to 700 scfm.The General Purpose Precision Series features state-of-the-art engineering for precision control in critical tolerance applications. The Arrow Precision Regulator lineup can be tailored to fit your specific needs. All Arrow regulators are easily panel mounted. All Arrow regulators are designed with a micro seat finish to ensure no reduced pressure creep.
Specifications Baffle Material
Plastic
Specifications Body
Zinc, Black E Coated
Specifications Bonnet
Glass Filled Nylon
Specifications Bowl Capacity
1 oz
Specifications Brand
Arrow Pneumatics
Specifications Elements
20 micron sintered bronze5 micron sintered bronze

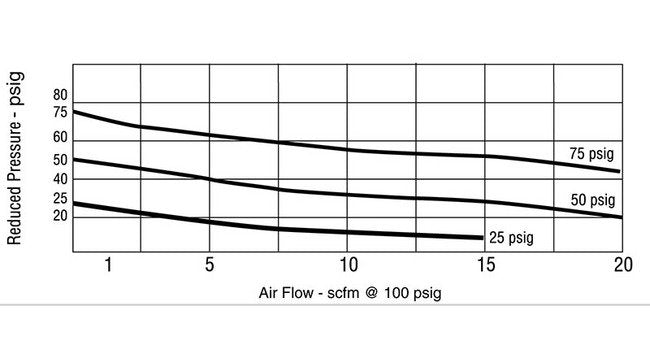

Specifications Maximum Flow
20 ft³/min
Specifications Maximum Pressure For Metal Bowl
150 psig
Specifications Maximum Pressure For Piston Drain
150 psig
Specifications Maximum Pressure For Polycarbonate Bowl
150 psig
Specifications Metal Bowl Material
Aluminum
Specifications Note For Piston Drain
Limits bowl temperature and pressure rating.
Specifications Operating Pressure Range For Metal Bowl
5 to 125 psig
Specifications Operating Pressure Range For Polycarbonate Bowl
5 to 125 psig
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Piston Drain
40 to 160 ºF
Specifications Operating Temperature Range For Polycarbonate Bow
40 to 125 ºF
Specifications Option
Add suffix to part number in alpha orderB - 2-Position mechanical Lock Knob - R162BG - Gauge (5-160 psi) - R162GI - Instrument pressure - R162I 3 to 20 psi adjustmentL - Low pressure - R162L 3 to 60 psi adjustmentN - Non-relieving - R1P - Panel mount - R162PU - No gauge ports - R162U
Specifications Pipe Size
1/4 in
Specifications Seals
Buna N
Specifications Type Of Piston Drain
Metal
