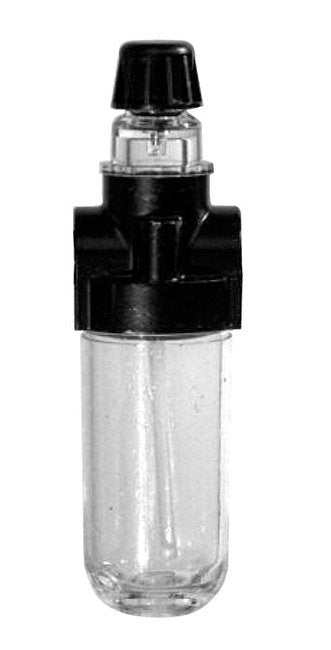

Arrow Pneumatics 1/8 in Pipe Size Lubricator
Arrow Pneumatics 1/8 in Pipe Size Lubricator
SKU:ARR-9458c8
High-performance Arrow Pneumatics 1/8 in Pipe Size Lubricator for precision lubrication of pneumatic equipment, reducing friction and wear.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Arrow Pneumatics 1/8 in Pipe Size Lubricator
$49.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 1/8 in Pipe Size Lubricator
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Arrow Pneumatics 1/8 in Pipe Size Lubricator is a vital component for maintaining and prolonging the life of pneumatic equipment. Designed by Arrow Pneumatics, a trusted brand known for quality and reliability, this lubricator effectively deposits lubricating oil on moving parts, reducing friction and wear. With a maximum flow of 16 scfm and a 1 oz capacity, this lubricator is easy to use and maintain, featuring a visible drip rate and fine adjustment screw. Constructed with high-quality materials like zinc-coated steel and black-coated aluminum, it ensures durability and performance. Ideal for institutional and government buyers seeking efficient lubrication solutions.
Product Specifications
Features 0
1 oz. polycarbonate bowlOptional metal bowlVisible drip rateEasy to refillFine adjustment screwRequires only .1 cfm of air flow to operateAutomatically adjusts oil mist delivery with air flow variationsNo tools necessary for lubrication adjustment.
Kits Bowl Kits
Polycarbonate - BK1811Metal - BK1811MRepair kit - RKL1812Dome Kit - AK35
Kits Mounting Kit
Mounting kit - FBK3
Product Line Information 0
Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.
Specifications Body
Zinc, Black E Coated
Specifications Bowl Capacity
1 oz
Specifications Brand
Arrow Pneumatics

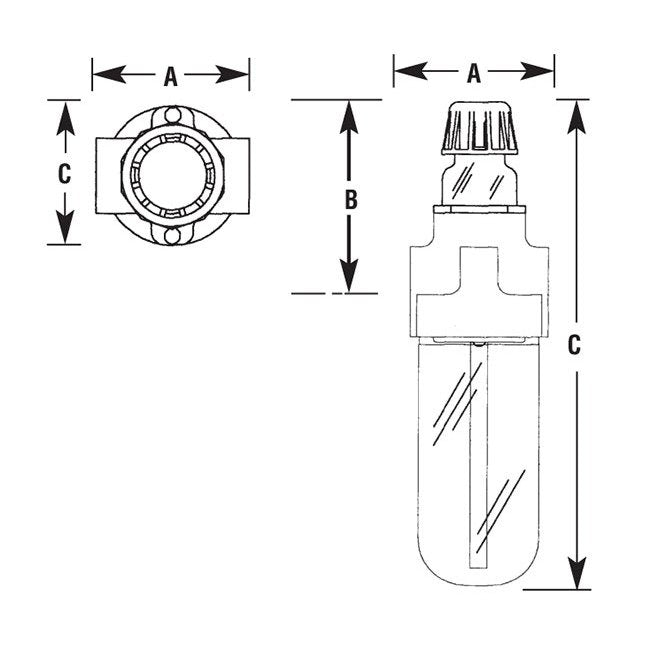

Specifications Dimension A
1-1/2 in
Specifications Dimension B
2 in
Specifications Dimension C
5 in
Specifications Maximum Flow
16 scfm
Specifications Maximum Pressure For Metal Bowl
200 psi
Specifications Maximum Pressure For Polycarbonate Bowl
150 psi
Specifications Maximum Pressure For Polycarbonate Bowl With Bowl
150 psig
Specifications Metal Bowl Material
Black Coated Aluminum
Specifications Note For Maximum Flow

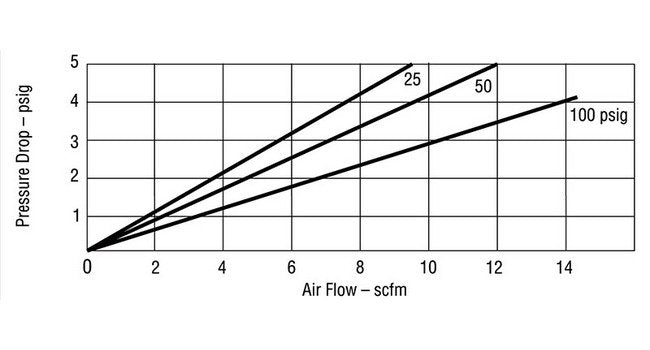

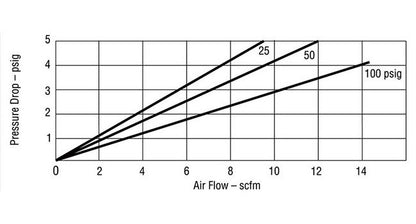

Flow scfm based on 5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Polycarbonate Bow
40 to 125 ºF
Specifications Option
Add suffix to part number in alpha orderM - Metal bowl - L182M
Specifications Pipe Size
1/8 in
Specifications Recommended Oil
SAE 10 oil or lighterAtomized average 2 micron0.1 scfm to establish drip rate
Specifications Warning
Polycarbonate plastic bowls could rupture if exposed to incompatible chemicals whether inside or outside the bowl. If such chemicals are present, use a metal bowl.
Specifications Weight
0.4 lb
