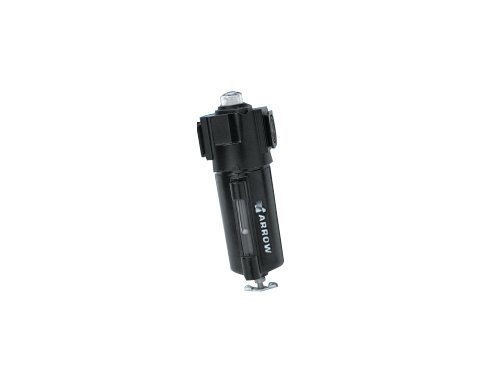

Arrow Pneumatics 1/8" Pipe Size Lubricator for Pneumatic Equipment
Arrow Pneumatics 1/8" Pipe Size Lubricator for Pneumatic Equipment
SKU:ARR-9f4e38
Optimize equipment lifespan with Arrow Pneumatics 1/8" Pipe Size Lubricator for efficient aerosol oil lubrication.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Arrow Pneumatics 1/8" Pipe Size Lubricator for Pneumatic Equipment
$49.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 1/8" Pipe Size Lubricator for Pneumatic Equipment
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance the performance and longevity of your pneumatically operated equipment with the Arrow Pneumatics 1/8" Pipe Size Lubricator. This lubricator efficiently adds aerosol lubricating oil to the compressed air line, reducing friction, wear, and maintenance requirements. With a range of lubrication options including Miniature, Arrowfog, Ultrafog, and Wick Style, this lubricator caters to various air flow applications. It ensures precise lubrication control and consistent air-oil ratio, making it ideal for valves, cylinders, and air tools in industrial settings.
Product Specifications
Note 0

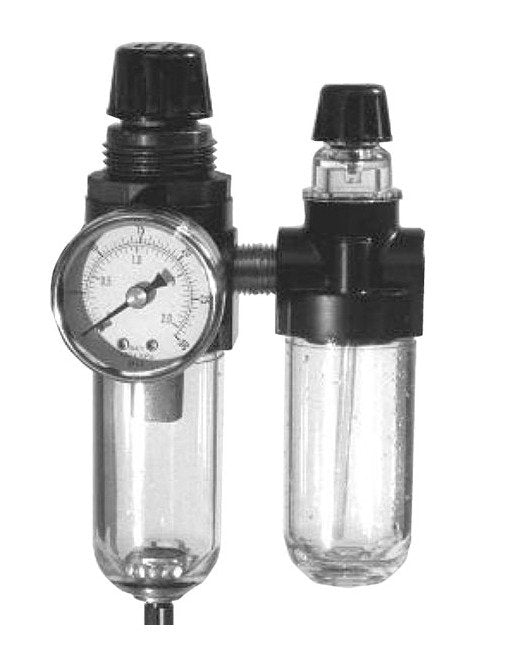

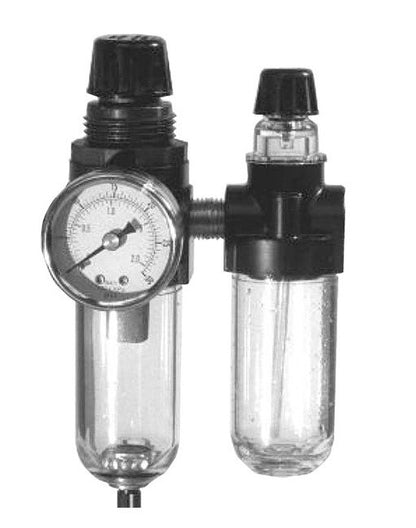

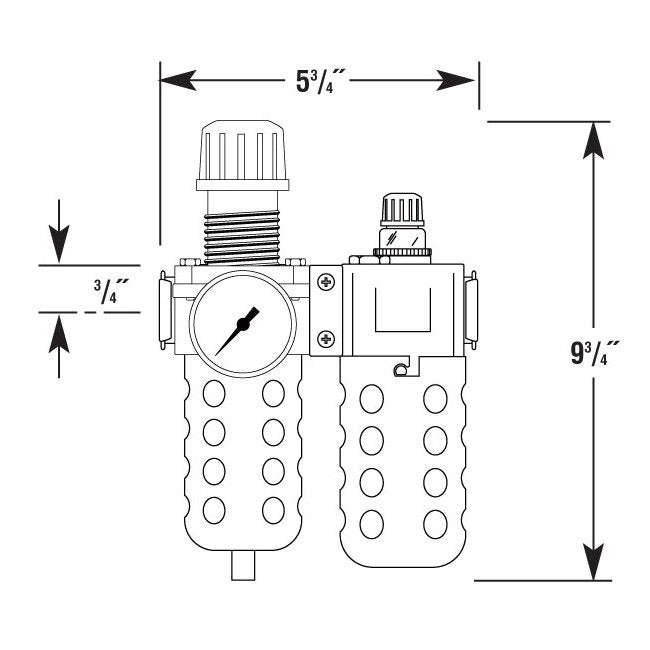

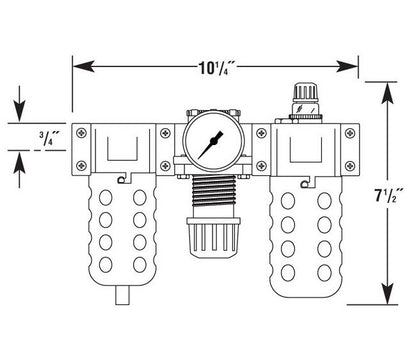

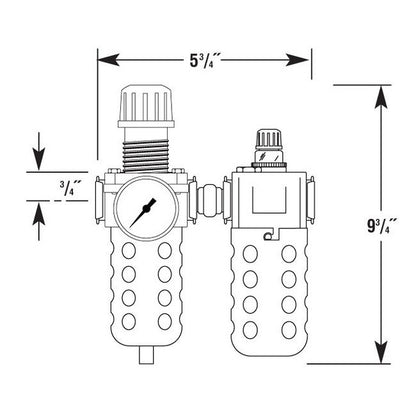

Combinations with Regulators include gauge.Combinations are boxed assembled.
Product Line Information 0

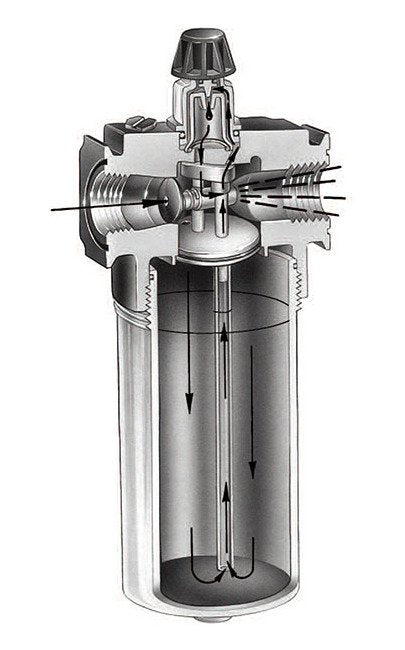

Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.

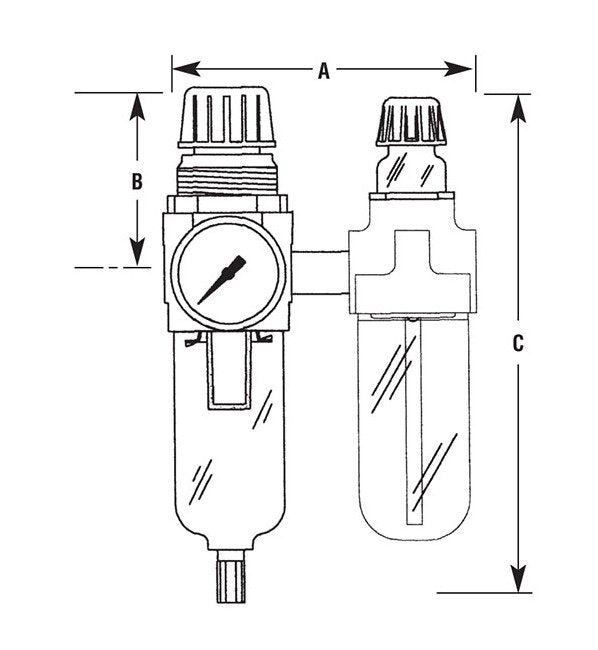

Specifications Approximate Dimension A
3-1/4 in
Specifications Approximate Dimension B
2-3/16 in
Specifications Approximate Dimension C
6-1/4 in
Specifications Approximate Weight
1.1 lb
Specifications Bowl Capacity
1 oz
Specifications Brand
Arrow Pneumatics
Specifications Components For Drop Lube
L181
Specifications Components For Filterregulator
B741G
Specifications Pipe Size
1/8 in
