Arrow Pneumatics 1/8in Pipe Size Lubricator for Air Tools

Name: Arrow Pneumatics 1/8in Pipe Size Lubricator for Air Tools
Brand: Marcuse & Son, Inc.
SKU: ARR-d367ee
Price: 79.99 USD
Availability: OutOfStock

SKU:ARR-d367ee

Enhance equipment lifespan with the 1/8 Inch Arrow Pneumatics Lubricator for smooth and efficient operation.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

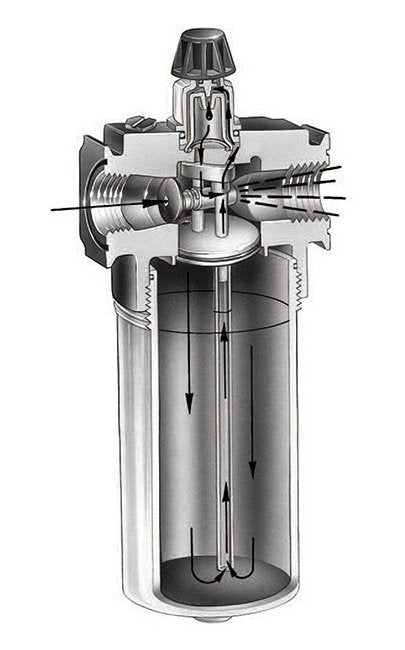

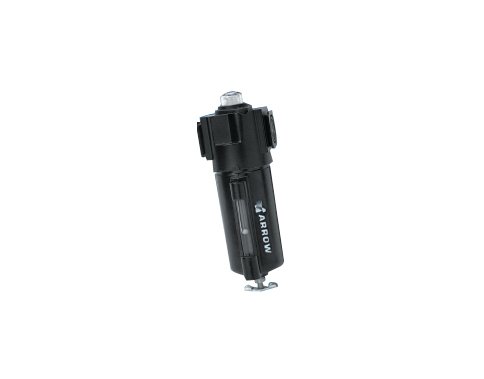

The 1/8 Inch Arrow Pneumatics Lubricator is a vital component for maintaining pneumatically operated equipment such as valves, cylinders, and air tools. Designed by Arrow Pneumatics, this lubricator adds aerosol lubricating oil to the compressed air line, reducing friction and wear on moving parts. With a capacity of 1 oz and precise oil particle sizes ranging from 2.5 to 0.4 microns, this lubricator ensures efficient and reliable lubrication for optimal equipment performance and longevity.

Product Specifications

Note 0

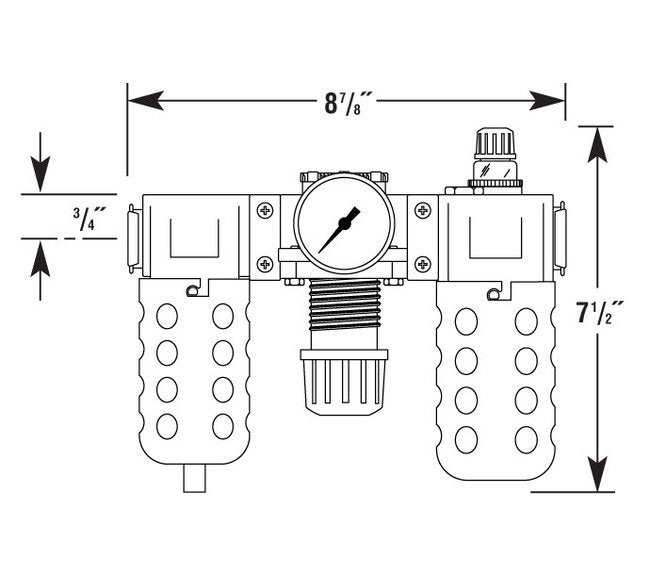

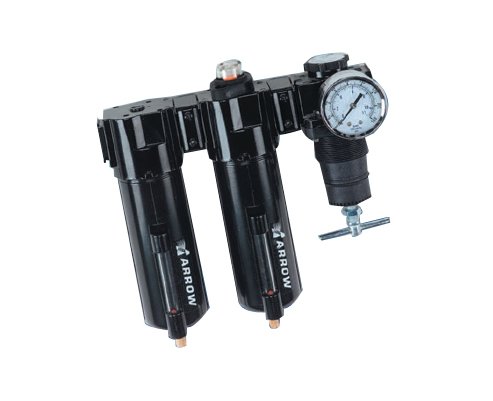

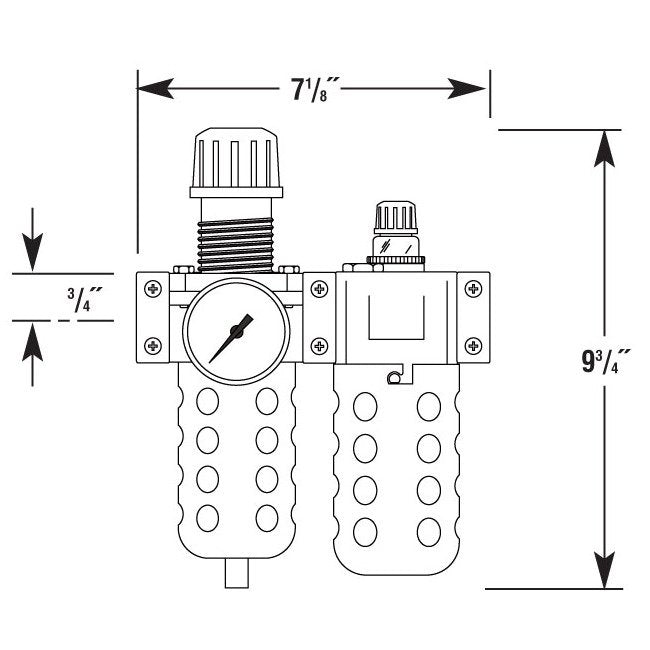

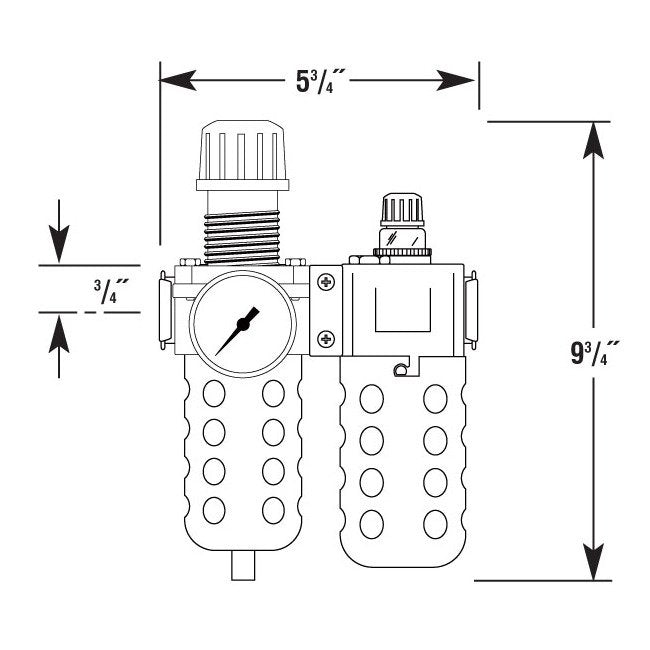

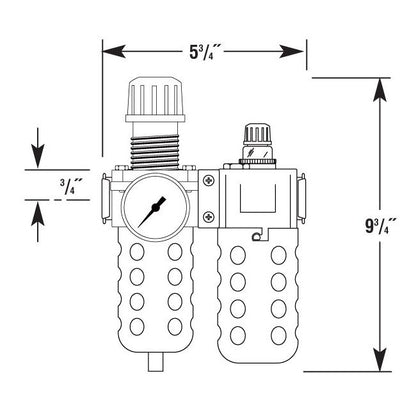

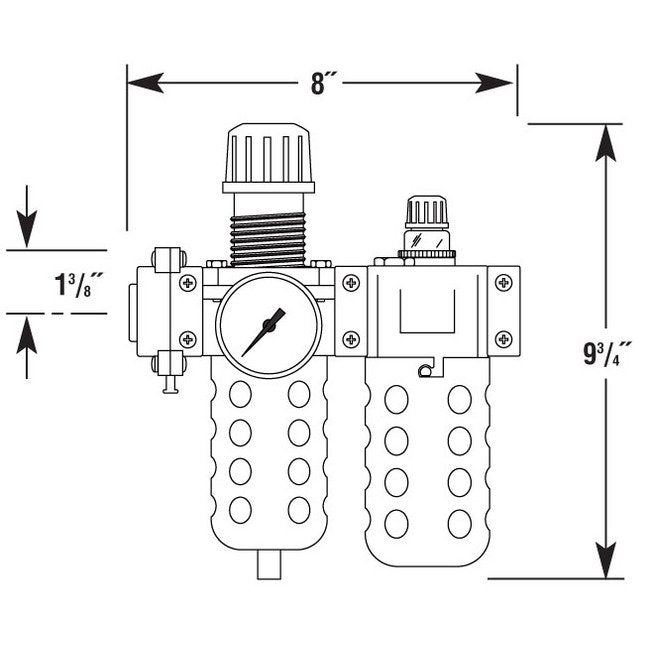

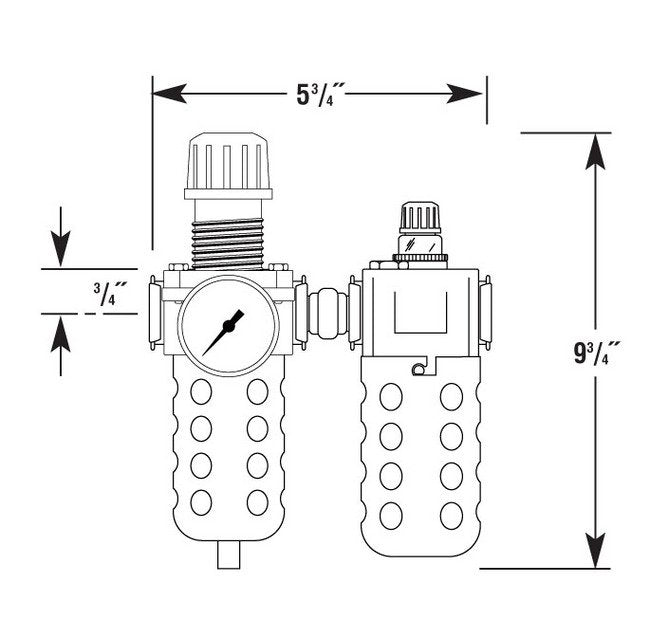

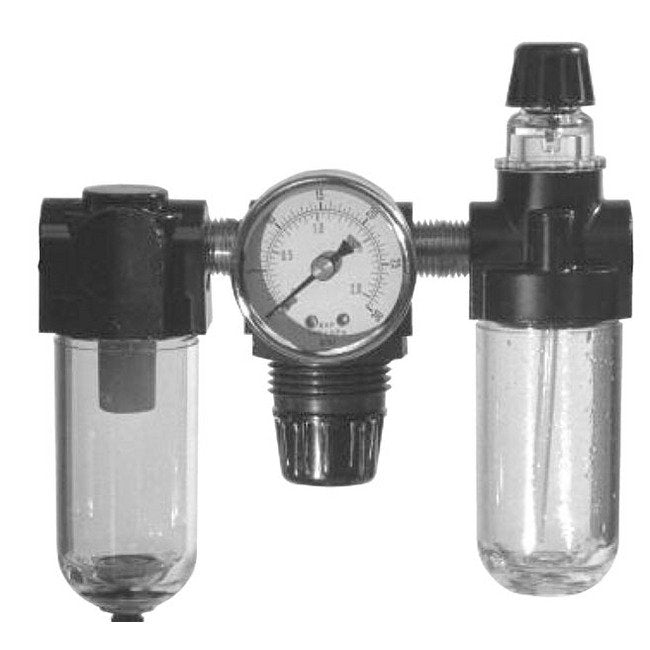

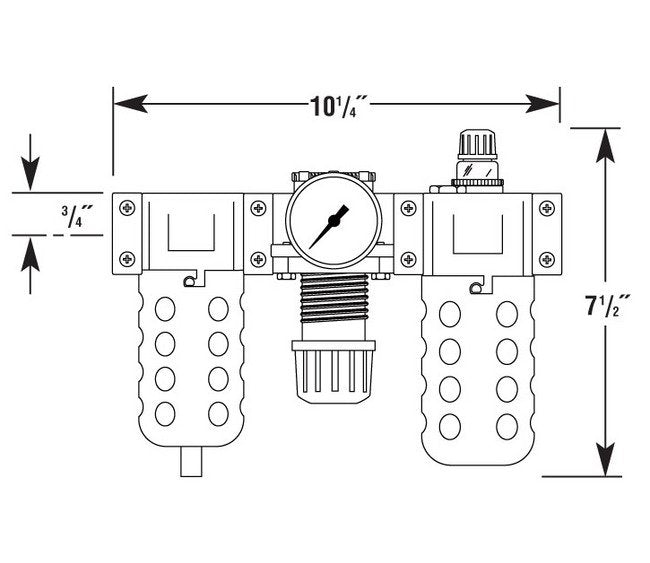

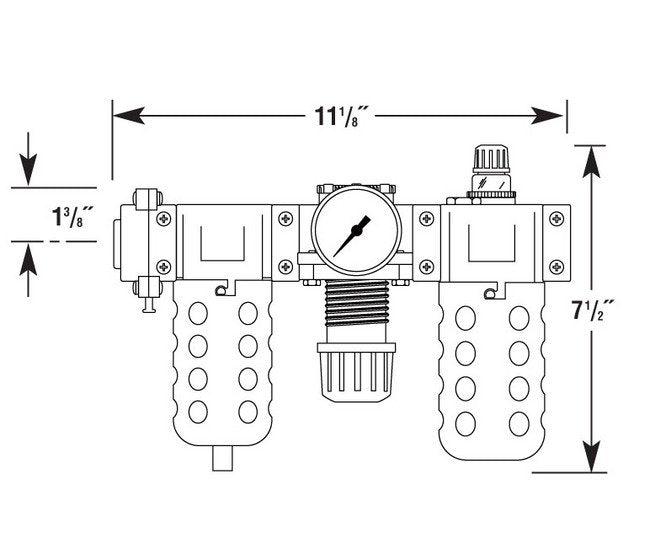

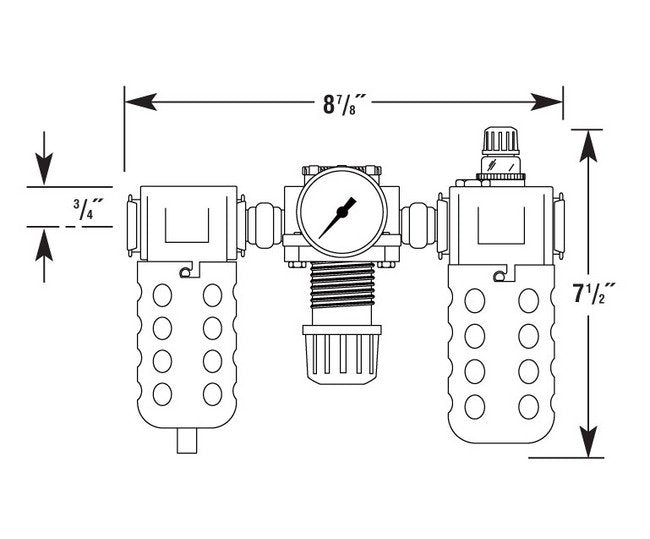

Combinations with Regulators include gauge.Combinations are boxed assembled.

Product Line Information 0

Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.

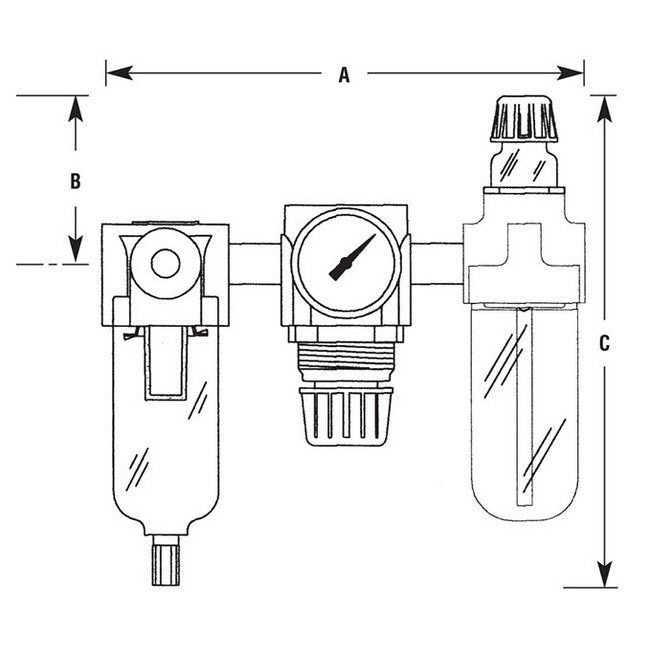

Specifications Approximate Dimension A

5-1/4 in

Specifications Approximate Dimension B

2 in

Specifications Approximate Dimension C

6-1/2 in

Specifications Approximate Weight

1.3 lb

Specifications Bowl Capacity

1 oz

Specifications Brand

Arrow Pneumatics

Specifications Components For Drop Lube

L181

Specifications Components For Filter

F300-01

Specifications Components For Regulator

R161G

Specifications Pipe Size

1/8 in
