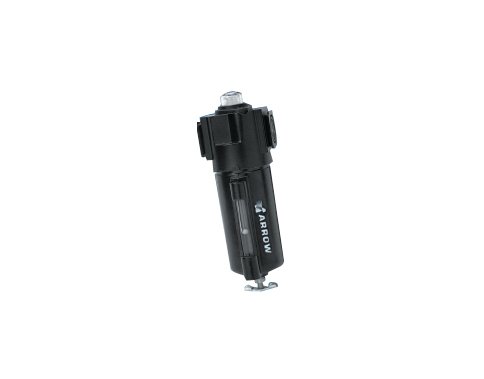

Arrow Pneumatics 1 Inch Pipe Size Lubricator

Name: Arrow Pneumatics 1 Inch Pipe Size Lubricator
Brand: Marcuse & Son, Inc.
SKU: ARR-f6c9de
Price: 79.99 USD
Availability: OutOfStock

SKU:ARR-f6c9de

Enhance equipment lifespan with Arrow Pneumatics 1 Inch Pipe Size Lubricator. Optimal lubrication for valves, cylinders, and air tools. Reliable, precise, and durable.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

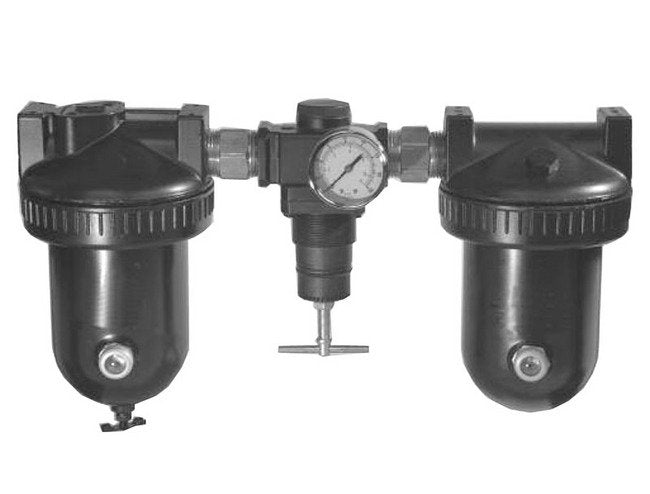

The Arrow Pneumatics 1 Inch Pipe Size Lubricator is a high-performance solution for enhancing the lifespan and efficiency of pneumatically operated equipment. Designed by Arrow Pneumatics, a trusted brand in the industry, this lubricator is equipped with components for filter, regulator, and drop lube, ensuring optimal lubrication for valves, cylinders, and air tools. With approximate dimensions of 15-7/8 in x 1-3/16 in x 7-1/8 in and a bowl capacity of 29 oz, this lubricator is suitable for various applications. Choose Arrow Pneumatics for reliable, precise lubrication that reduces friction and wear on moving parts.

Product Specifications

Product Line Information 0

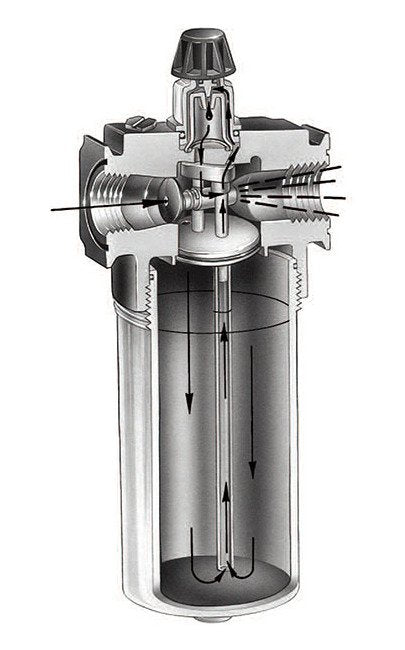

Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.

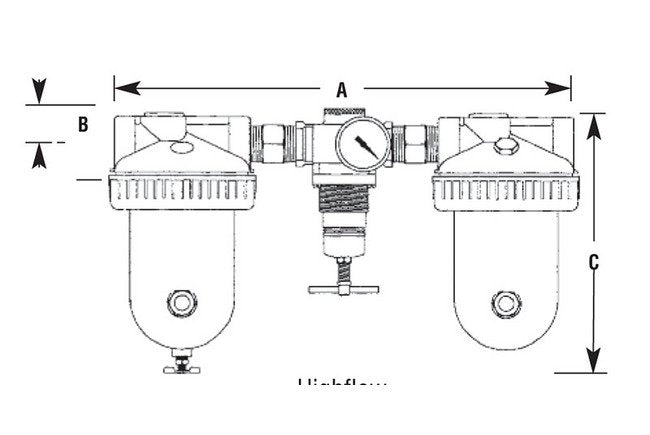

Specifications Approximate Dimension A

15-7/8 in

Specifications Approximate Dimension B

1-3/16 in

Specifications Approximate Dimension C

7-1/8 in

Specifications Approximate Weight

11.8 lb

Specifications Bowl Capacity

29 oz

Specifications Brand

Arrow Pneumatics

Specifications Components For Drop Lube

4108

Specifications Components For Filter

F329

Specifications Components For Regulator

R378T

Specifications Optional Mounting Bracket

ACA-7 (Req. 2)

Specifications Pipe Size

1 in
