Arrow Pneumatics 3/4 in Pipe Size Lubricator
Arrow Pneumatics 3/4 in Pipe Size Lubricator
SKU:ARR-f56b69
Optimize pneumatic equipment performance with Arrow Pneumatics 3/4 in Lubricator, featuring OSHA Lockout Valve and Tri-Star Diverter.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Arrow Pneumatics 3/4 in Pipe Size Lubricator
$129.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 3/4 in Pipe Size Lubricator
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

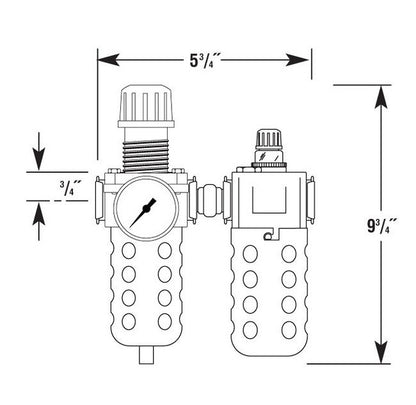

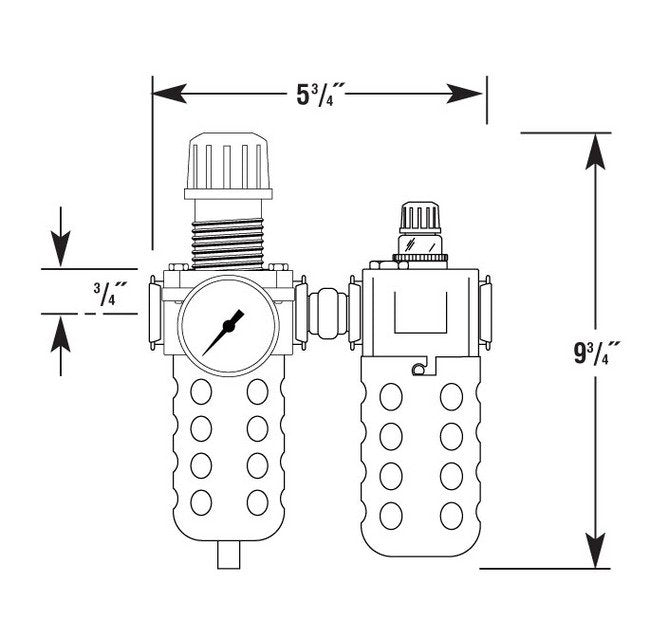

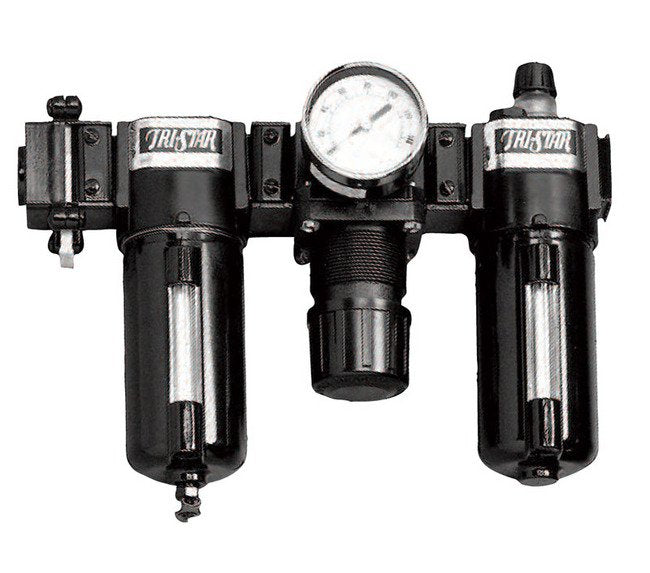

The 3/4 Inch Pipe Size Arrow Pneumatics Lubricator is a high-quality solution for lubricating pneumatic equipment, such as valves, cylinders, and air tools. Manufactured by Arrow Pneumatics, this lubricator features a Tri-Star Outboard Diverter for up to 3-1/4" outlets, OSHA Lockout 3-Way Valve for downstream pressure control, and a mountable IBK5 wall bracket for easy installation. With a 5 oz bowl capacity and precise oil delivery, this lubricator reduces friction, wear, and equipment maintenance, prolonging the operational life of pneumatic devices.
Product Specifications
Modular Components Accessories Description Of Dk52 Model Number
1/4 in. NPT Inboard Diverter Kit
Modular Components Accessories Description Of Dk53 Model Number
3/8 in. NPT Inboard Diverter Kit
Modular Components Accessories Description Of Ik05 Model Number
"O" Rings for Modulars
Modular Components Accessories Description Of Ik50 Model Number
Tri-Star Connector Insert
Modular Components Accessories Description Of Ik52 Model Number
1/4 in. NPT Pipe Port Insert
Modular Components Accessories Description Of Ik53 Model Number
3/8 in. NPT Pipe Port Insert
Modular Components Accessories Description Of Ik54 Model Number
1/2 in. NPT Pipe Port Insert
Modular Components Accessories Description Of Ik56 Model Number
3/4 in. NPT Pipe Port Insert
Modular Components Accessories Model Number For Tri Star Connect
IK50
Modular Components Accessories Model Number For Tri Star Diverte
DK52 | DK53
Modular Components Accessories Model Number For Tri Star Pipe Po
IK05 | IK52 | IK53 | IK54 | IK56

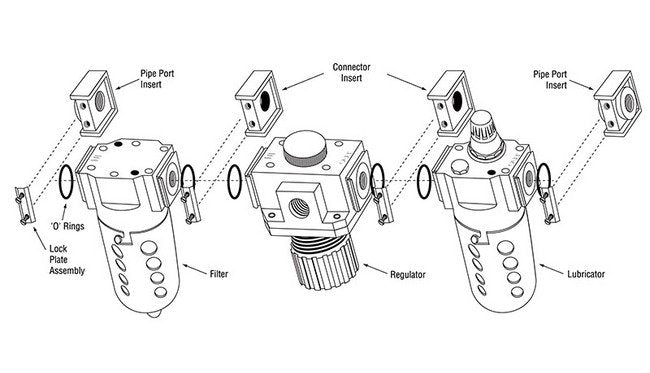

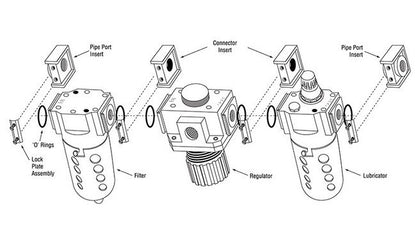

Modular Components Accessories Tri Star Connector Insert
Tri-Star insert slides are designed to guide the insert to an interlocking position on the unit body. The design of the slide also provides a unique safety feature, should the insert plates be removed while the air line is under pressure, the interlocking
Modular Components Accessories Tri Star Diverter
The unique Tri-Star diverter permits a portion of filtered air to be branched before entering the regulator and sends it to another location; or when installed after the regulator, it will divert a portion of regulated air. The diverter is also used when

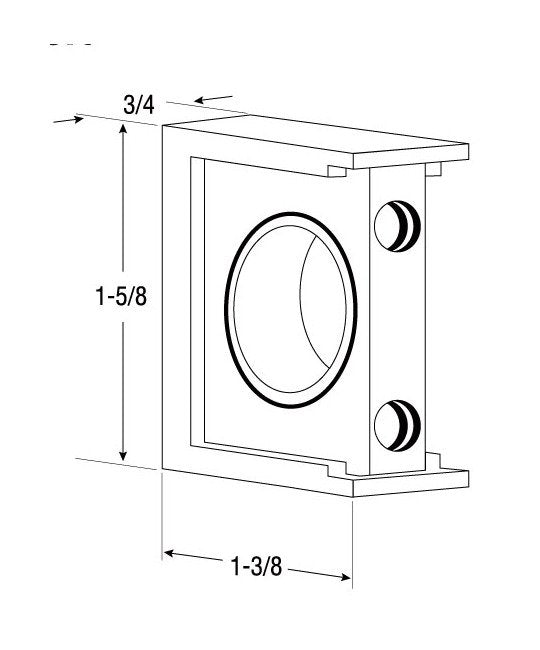

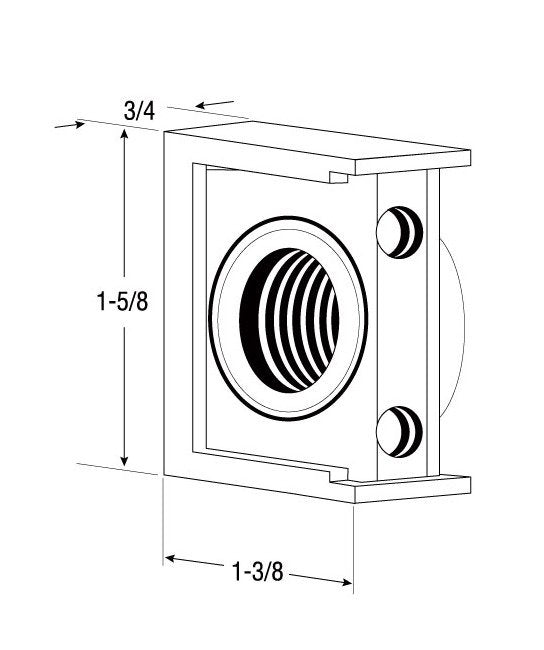

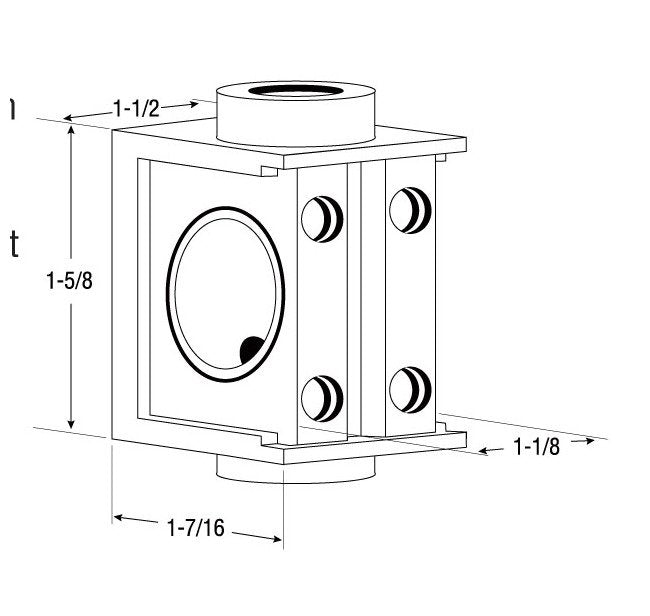

Modular Components Accessories Tri Star Pipe Port Insert
Any of four separate Tri-Star ports permit instant pipe sizing of every Tri-Star filter, regulator and lubricator. Available in 1/4", 3/8", 1/2" , and 3/4" pipe sizes for inlets and outlet ports. Zinc die case metal. A special Tri-Star locking design prev
Note 0
Combinations with Regulators include gauge.Combinations are boxed assembled.Not available with D option
Ordering Information Combination Number For Filter Style

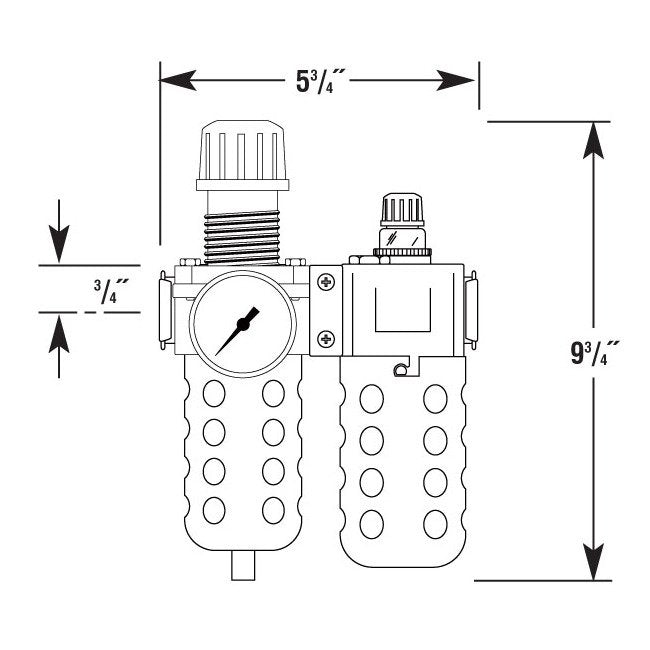

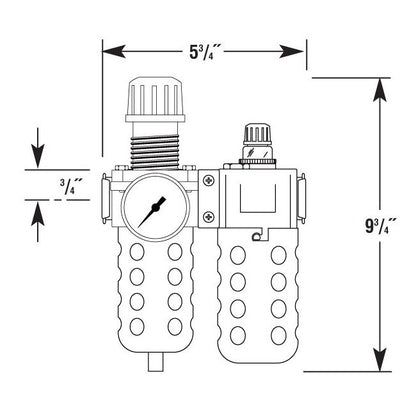

0 - No Filter3 - Particulate4 - 0.09 Micron Oil Removing5 - 0.03 Oilescer6 - Vapor Removal7 - Filter/Regulator7 - Filter/Regulator
Ordering Information Combination Number For Lubricator Style
0 - No Lubricator3 - Arrowfog4 - Ultrafog
Ordering Information Combination Number For Regulator Style
0 - No Regulator3 - Standard Relieving
Ordering Information Combination Number Pipe Size
2-1/4 in | 3-3/8 in | 4-1/2 in | 6-3/4 in
Ordering Information Combination Number Series
5 - 5 oz. Plastic Bowl or 6 oz. Metal Bowl M6 oz. Metal Bowl with sight W
Ordering Information Style

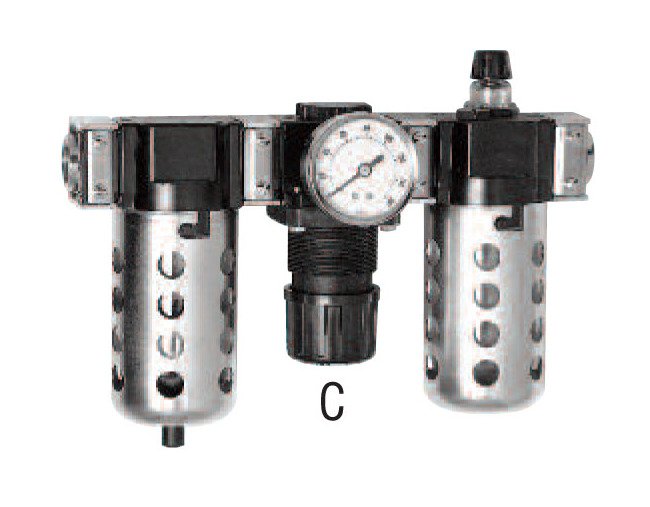

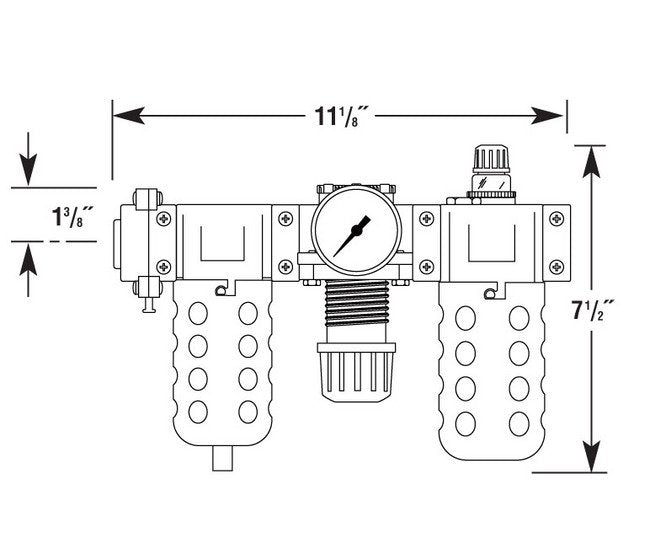

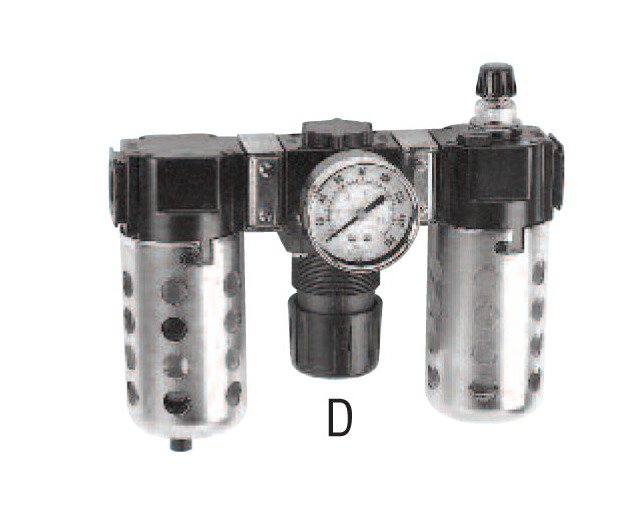

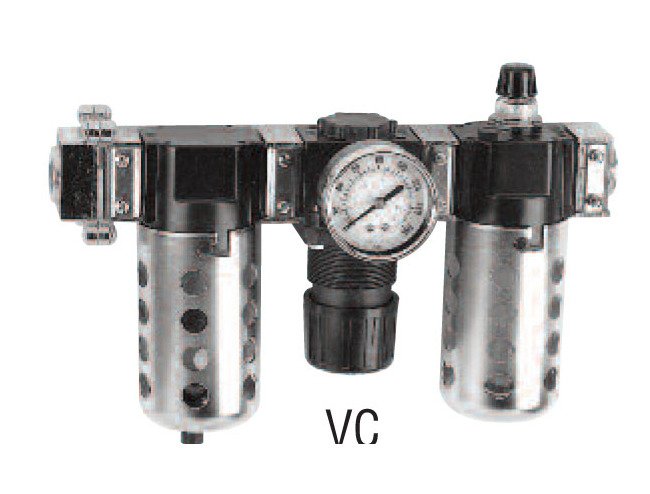

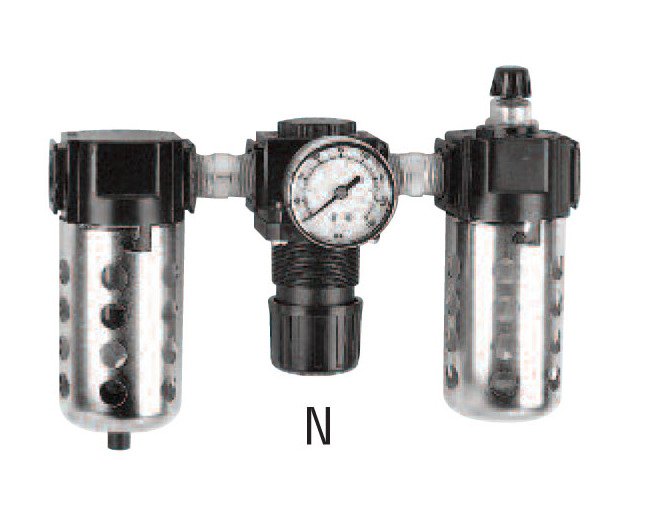

C - With End Port InsertsD - Without End Port InsertsVC - With OSHA LockoutN - Nipple
Product Line Information 0

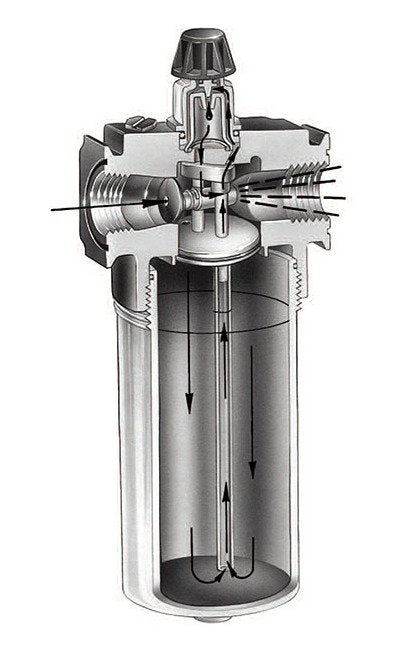

Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.
Specifications Approximate Weight
4.1 lb
Specifications Bowl Capacity
5 oz
Specifications Brand
Arrow Pneumatics
Specifications Components For Drop Lube
L354
Specifications Components For Filter
70356
Specifications Components For Filterregulator
B754G
Specifications Description Of Dk54 Model Number For Tri Star Out
1/4 in. NPT Outboard Diverter Kit
Specifications Description Of V252 Model Number For Osha Lockout
1/4 in. OSHA Lockout Valve
Specifications Description Of V253 Model Number For Osha Lockout
3/8 in. OSHA Lockout Valve
Specifications Description Of V254 Model Number For Osha Lockout
1/2 in. OSHA Lockout Valve
Specifications Model Number For Osha Lockout 3 Way Valve
V252 | V253 | V254
Specifications Model Number For Tri Star Outboard Diverter
DK54

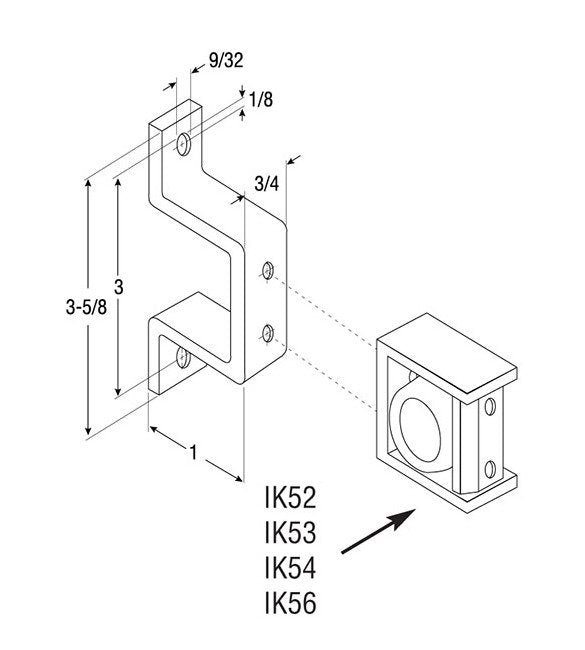

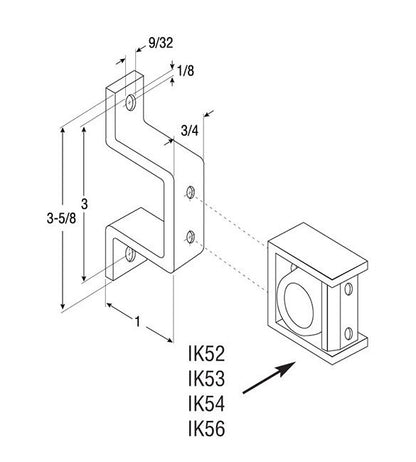

Specifications Mounting Bracket
IBK5 wall mounting bracket for Modular Tri-Star FRL units permit bracket mounting from inlet and outlet ports, slide valve and diverter blocks

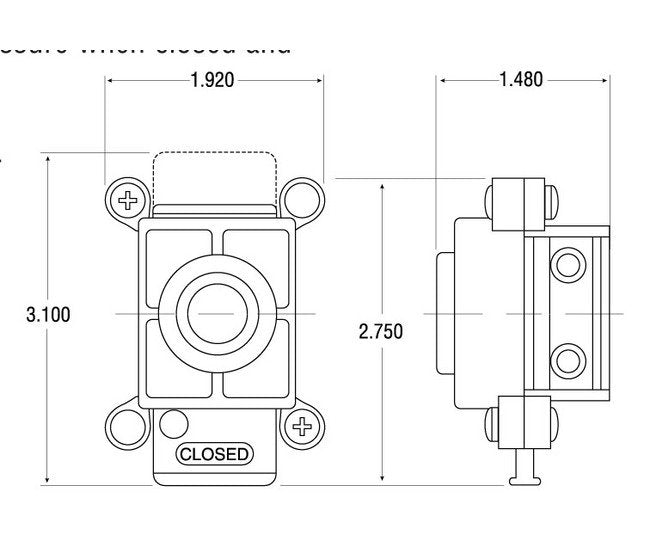

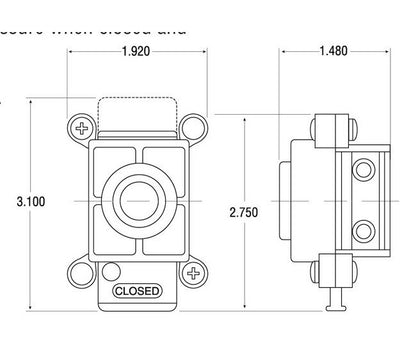

Specifications Osha Lockout 3 Way Valve
Arrow's 3-way OSHA lockout valve exhausts all downstream pressure when closed and can be locked in the closed position with customer supplied pad lock. These valves will handle all Tri-Star system air flows and will exhaust 6 scfm at 100 psi.
Specifications Pipe Size
3/4 in

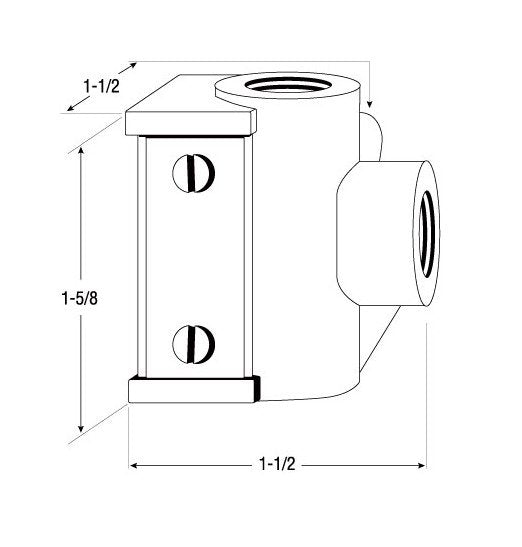

Specifications Tri Star Outboard Diverter
The Tri-Star Outboard Diverter block attaches to the outlet port of any Tri-Star unit and allows air to be diverted to up to 3-1/4" outlets. Includes locking plate and "O" rings, and it will accept the Tri-Star mounting bracket.
