Arrow Pneumatics 3/4 Inch Pipe Size Lubricator
Arrow Pneumatics 3/4 Inch Pipe Size Lubricator
SKU:ARR-79b1a2
Enhance equipment lifespan with Arrow Pneumatics 3/4' Pipe Size Lubricator, offering efficient air-oil ratio maintenance and reliable performance.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Arrow Pneumatics 3/4 Inch Pipe Size Lubricator
$139.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 3/4 Inch Pipe Size Lubricator
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

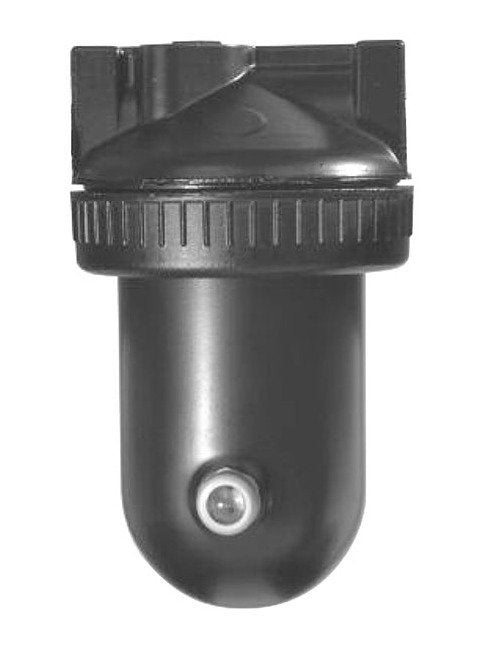

The Arrow Pneumatics 3/4 Inch Pipe Size Lubricator is a high-performance solution designed for seamless lubrication of pneumatically operated equipment. With a maximum flow of 175 scfm and a bowl capacity of 60 oz, this lubricator offers efficient and reliable lubrication to reduce friction and wear on moving parts. Featuring a tamper-proof internal adjustment, porous bronze oil diffuser, and automatic air-oil ratio maintenance, this lubricator ensures trouble-free operation and extends maintenance intervals. Ideal for government and institutional applications requiring precise lubrication standards.
Product Specifications
Features 0
Simple, trouble free design. It cannot be over-filled, and has greater bowl capacity which extends interval between fillingCan be used downstream of 4 way valves because it accommodates reverse flowBowl fills all the way to the topIt can be filled under pressure no need to shut down airTamper-proof internal adjustmentPorous bronze oil metering diffuser introduces smallest possible oil particles to the airNo small orifices to clog and stop oil deliveryAutomatically maintains air-oil ratio regardless of variations in air flow
Kits Bowl Kits
29 oz. metal - BK4106M29 oz. metal with sight - BK4106W60 oz. metal with sight - BK4106LCM
Kits Repair Kit
For 4106, 4106LCM, 4108, and 4108LCM - RK4106For 4112 and 4112LCM - RK4112Sight kit - WK35
Product Line Information 0
Arrow offers four distinct types: Miniature, Arrowfog, Ultrafog, Wick Style.Miniature Fog-Type lubricators are designed for low air flow applications where space is limited.Arrowfog in Tri-Star and Midflow lubricators are the most popular units for applications that do not require extremely fine oil particles or long distance lubrication. They produce oil particles of 2.5 micron. Arrowfog sends all metered oil down line in fog droplets; accommodates a wide range of applications.Arrow Ultrafog in Tri-Star and Midflow lubricators produce extremely fine, .4 micron oil particles. Due to their size, these molecules remain in suspension and are carried further downstream than the particles from an Arrowfog. Arrow Ultrafog allows precise adjustment control. Atomizes oil droplets to a fine mist for reclassification in the bowl before sending lighter particles of oil down line.Arrowick lubricators are economical and reliable for lubricating tools or cylinders that run constantly. The Arrowick automatically maintains the same air-oil ratio regardless of variations in air flow. The average droplet size is 3 microns. Arrowick uses an adjustable saturated wick to send particles or oil down line.
Specifications Applications
Flow Can Be Reversed | Single Point
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
60 oz
Specifications Brand
Arrow Pneumatics

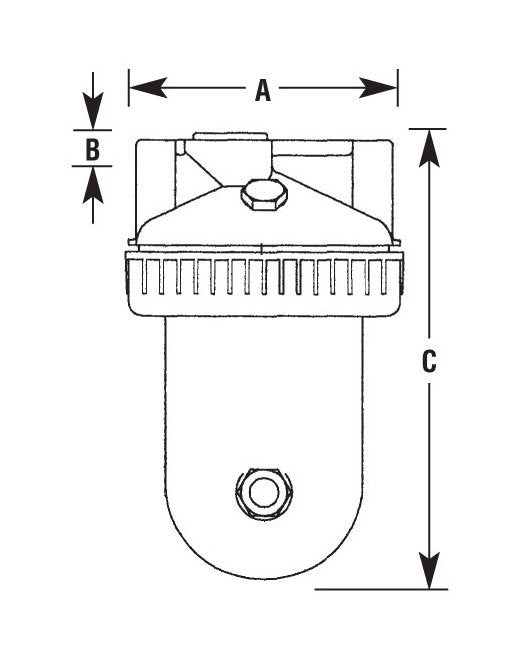

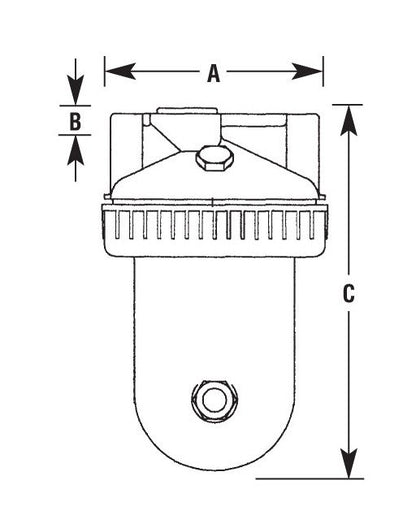

Specifications Dimension A
4-7/8 in
Specifications Dimension B
1-1/8 in
Specifications Dimension C
13-1/2 in
Specifications Droplet Size
3 micron or less
Specifications Maximum Flow
175 scfm
Specifications Maximum Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Steel, Black E Coated
Specifications Minimum Air Flow For Lubrication
30 scfm

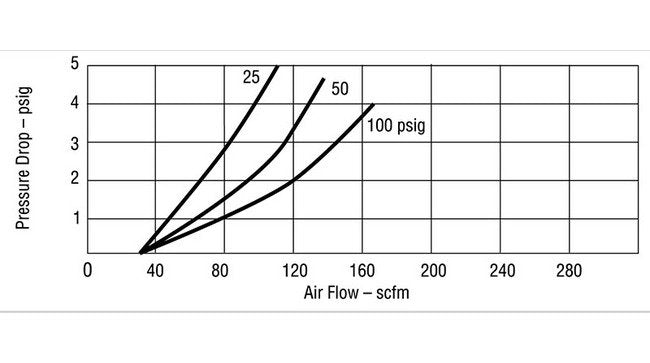

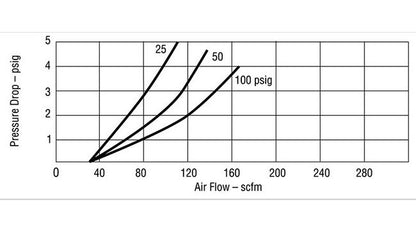

Specifications Note For Maximum Flow
Flow scfm based on 5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Option
Add suffix to part number in alpha orderW - metal bowl w/sight glass - 4108W
Specifications Pipe Size
3/4 in
Specifications Recommended Oil
SAE 10 oil or lighter
Specifications Weight
6 lb
