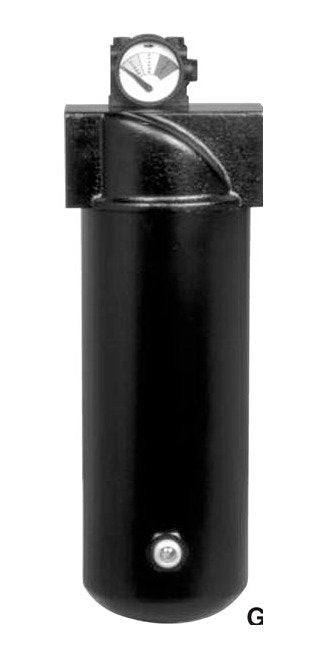

Arrow Pneumatics 3 Inch High Flow Coalescing Air Filter
Arrow Pneumatics 3 Inch High Flow Coalescing Air Filter
SKU:ARR-d3114f
Enhance air quality with the Arrow Pneumatics High Flow Coalescing Air Filter. Ideal for critical applications!
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Arrow Pneumatics 3 Inch High Flow Coalescing Air Filter
$249.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 3 Inch High Flow Coalescing Air Filter
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your air filtration system with the Arrow Pneumatics High Flow Coalescing Air Filter designed to efficiently remove oil contamination, offensive odors, and hydrocarbons. This air filter offers low pressure drop, protecting critical processes in food plants, instrumentation, and pharmaceutical settings. With a maximum flow of 770 scfm and 0.001 oil concentration assurance, this filter ensures top-tier air quality. Compliant with industry standards, the Arrow Pneumatics Coalescing Air Filter is a reliable choice for industrial applications requiring superior air purification.
Product Specifications
Features 0
Protects end processes from gaseous oil contamination and rids compressed air of offensive oily odorsRemoves hydrocarbons for use in analytical instrumentsLow pressure dropManual 1/4" NPT twist drain
Kits Bowl Kits
Metal bowl with sight - BKF510WMetal bowl without sight - BKF510MMetal bowl with sight - BKF518WMetal bowl without sight - BKF518MMetal bowl with sight - BKF528WMetal bowl without sight - BKF528M
Kits Element Kits
Charcoal wrapped - EKF611, EKF619, EKF629
Kits Kits
Float for External Drain - 5200Drain Trap Kit - DKTF2
Kits Repair Kit
Repair kit - RKF511, RKF519, RKF529Replacement sight kit - BSF510
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha orderD - Differential pressure gauge - F611-24DT - External Float Drain - F611-24TW - Metal bowl with sight glass - F611-24W
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Applications
Food Plants | Instrumentation | Pharmaceutical
Specifications Baffle Material
Plastic
Specifications Body
Black Coated Aluminum
Specifications Bowl Capacity
200 oz
Specifications Brand
Arrow Pneumatics

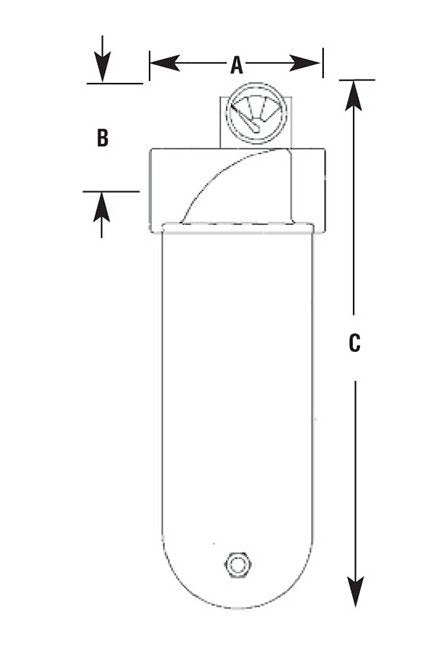

Specifications Dimension A
7-5/8 in
Specifications Dimension B
2-1/4 in
Specifications Dimension C
31-3/16 in
Specifications Elements
Multi-wrapped layers of impregnated activated charcoal particles to increase purification qualities. If the compressed air has been prepared by a suitable refrigerated dryer and F5A Coalescer filter, the F6 Absorber will insure oil concentrations of 0.001
Specifications Maximum Flow
770 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Black Coated Aluminum
Specifications Metal Bowl Material With Sight
Black Coated Aluminum

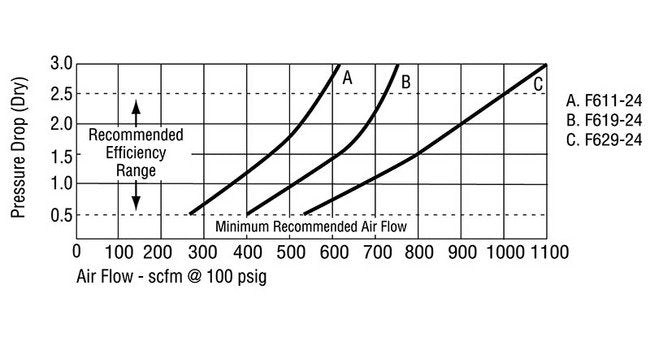

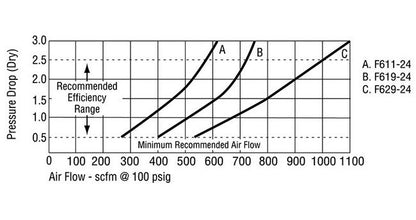

Specifications Note For Maximum Flow
Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
3 in
Specifications Seals
Buna N
Specifications Weight
24 lb
