Arrow Pneumatics 3 Inch High Flow Coalescing Air Filter
Arrow Pneumatics 3 Inch High Flow Coalescing Air Filter
SKU:ARR-064746
Enhance industrial air quality with Arrow Pneumatics' high efficiency 3 Inch Coalescing Air Filter.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Arrow Pneumatics 3 Inch High Flow Coalescing Air Filter
$289.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 3 Inch High Flow Coalescing Air Filter
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

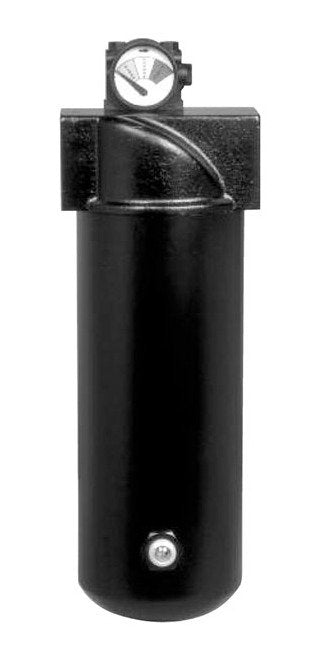

The Arrow Pneumatics 3 Inch High Flow Coalescing Air Filter is engineered for maximum performance and efficiency in industrial settings. Utilizing a 0.03 micron borosilicate glass fiber element, this filter boasts a D.O.P. Efficiency of 99.97% and effectively removes submicron particles and oil aerosols. With a maximum flow rate of 770 scfm and a durable black coated aluminum body, this filter ensures clean, high-quality compressed air output. Ideal for applications requiring stringent filtration such as critical instrumentation, food industry, and clean rooms. Enhance your air system's protection with this reliable coalescing filter.
Product Specifications
Features 0
0.03 micron fiber elementLow pressure dropManual 1/4" NPT twist drain
Kits Bowl Kits
Metal with sight - BKF510WMetal without sight - BKF510Metal with sight - BKF518WMetal without sight - BKF518Metal with sight - BKF529WMetal without sight - BKF529
Kits Element Kits
0.03 micron - EKF511, EKF519, EKF5290.01 micron - EKF511A, EKF519A, EKF529A
Kits Kits
Float for External Drain - 5200Drain Trap Kit - DKTF2
Kits Repair Kit
Repair kit - RKF511, RKF519, RKF529Replacement sight kit - BSF510
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha orderA - 0.01 micron element - F511-24AD - Differential pressure gauge - F511-24DT - External Float Drain - F511-24TW - Metal bowl with sight glass - F511-24W
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Baffle Material
Plastic
Specifications Body
Black Coated Aluminum
Specifications Bowl Capacity
200 oz
Specifications Brand
Arrow Pneumatics

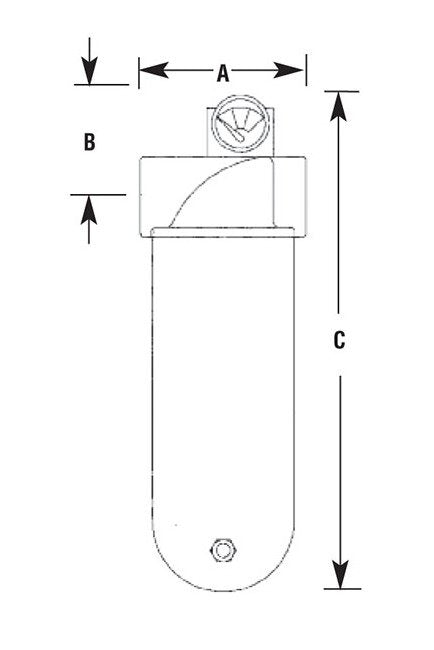

Specifications Dimension A
7-5/8 in
Specifications Dimension B
2-1/4 in
Specifications Dimension C
31-5/16 in
Specifications Elements
0.03 micron borosilicate glass fiber D.O.P. Efficiency: 99.97%, Particle size removal, Remaining oil content by wt.: 0.015 PPM0.01 micron borosilicate glass fiber D.O.P. Efficiency: 99.999%, Particle removal size, Remaining oil content by wt.: 0.0005
Specifications Maximum Flow
770 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Black Coated Aluminum
Specifications Metal Bowl Material With Sight
Black Coated Aluminum
Specifications Note For Dimension C
Add 3/4 in. to height (c) if ordered with gauge.
Specifications Note For Maximum Flow

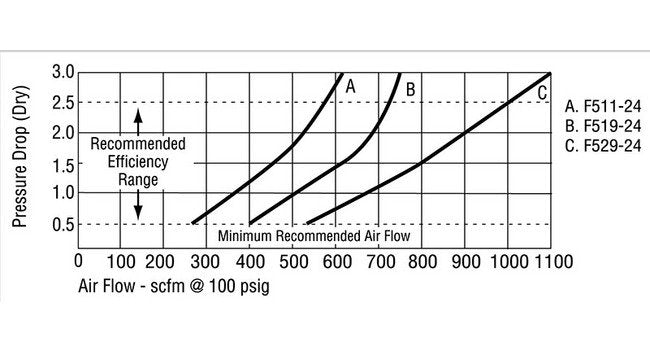

Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
3 in
Specifications Seals
Buna N
Specifications Weight
24 lb
