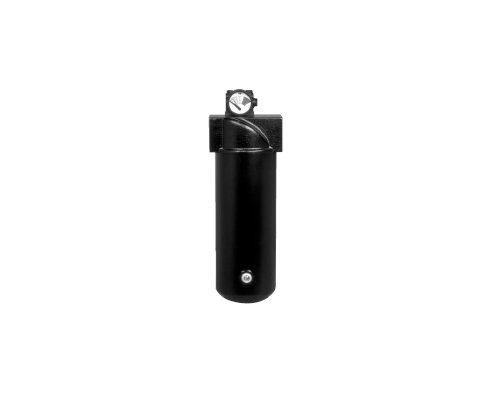

Arrow Pneumatics 3 Inch High Flow Oil Removing Air Filter
Arrow Pneumatics 3 Inch High Flow Oil Removing Air Filter
SKU:ARR-7a7095
Enhance air quality with the Arrow Pneumatics 3 Inch High Flow Oil Removing Air Filter. Designed for industrial applications, this filter ensures efficient removal of oil aerosols and sub-micron particles.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Arrow Pneumatics 3 Inch High Flow Oil Removing Air Filter
$299.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics 3 Inch High Flow Oil Removing Air Filter
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your air filtration system with the Arrow Pneumatics 3 Inch High Flow Oil Removing Air Filter. Designed for industrial use, this coalescing filter efficiently removes oil aerosols and sub-micron particles, ensuring clean air for critical applications. With a 0.9 micron borosilicate glass fiber element and a low pressure drop, this filter delivers high performance and durability. Compliant with Federal/DoD procurement standards and FAR requirements, this filter is a top choice for institutional buyers seeking quality and reliability.
Product Specifications
Features 0
0.9 micron elementLow pressure dropLong element lifeManual 1/4" twist drain

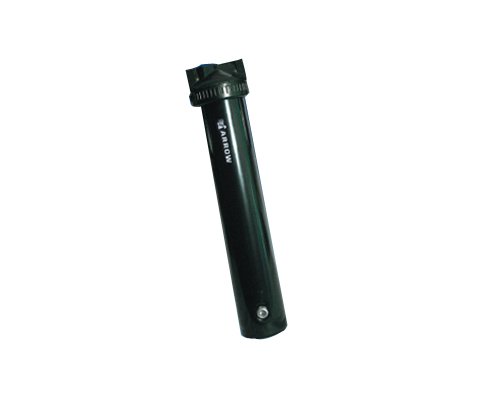

Kits Bowl Kits
Metal without sight F411 - BKF510Metal with sight F411 - BKF510WMetal without sight F419 - BKF518Metal with sight F419 - BKF518WMetal without sight F429 - BKF528Metal with sight F429 - BKF528W
Kits Element Kits
0.9 micron - EKF411, EKF419, EKF429
Kits Kits
Float for External Drain - 5200Drain Trap Kit - DKTF2
Kits Repair Kit
Repair kit - RKF511, RKF519, RKF529 Replacement sight kit - BSF510
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha orderD - Differential pressure gauge - F411-24DT - External Float Drain - F411-24TW - Metal bowl with sight glass - F411-24W
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Baffle Material
Plastic
Specifications Body
Black Coated Aluminum
Specifications Bowl Capacity
300 oz
Specifications Brand
Arrow Pneumatics

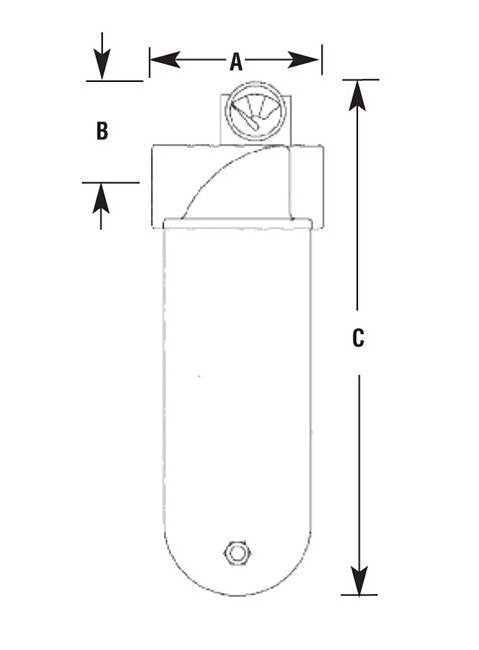

Specifications Dimension A
7-5/8 in
Specifications Dimension B
2-1/4 in
Specifications Dimension C
41-7/16 in

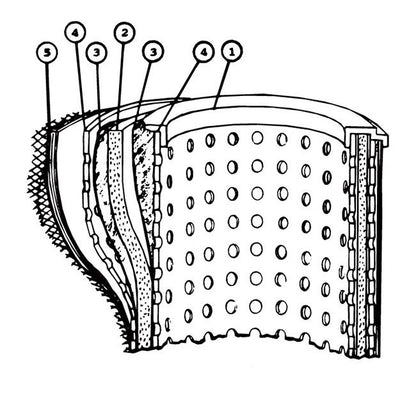

Specifications Elements

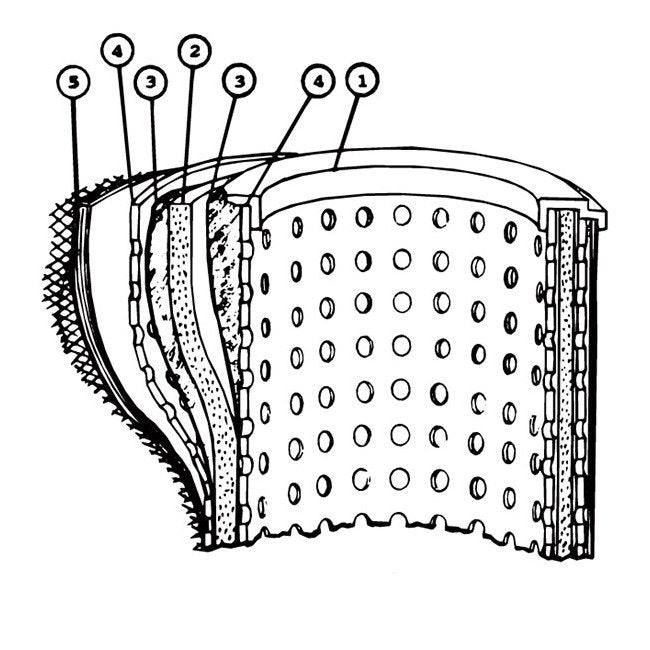

0.9 micron borosilicate glass fiber D.O.P. Efficiency: 95%, Particle size removal, Remaining oil content by wt.: 2.5 PPM

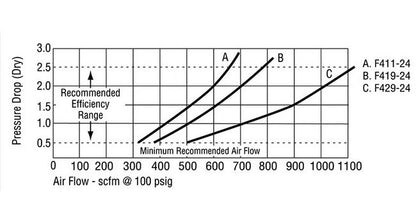

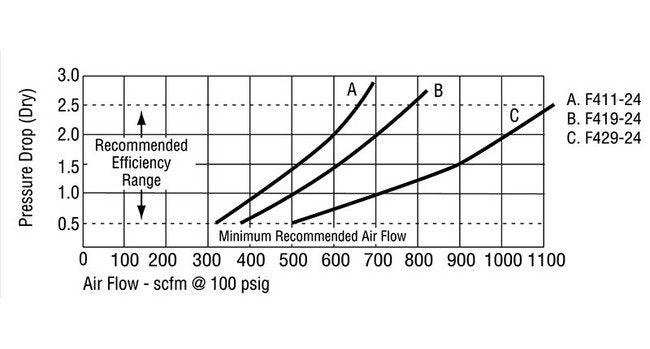

Specifications Maximum Flow
1100 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material With Sight
Black Coated Aluminum
Specifications Note For Maximum Flow
Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
3 in
Specifications Seals
Buna N
Specifications Vane Material
Plastic
Specifications Weight
28 lb
