Arrow Pneumatics F3 1/2in Pipe Size Mid Flow Particulate Air Filter
Arrow Pneumatics F3 1/2in Pipe Size Mid Flow Particulate Air Filter
SKU:ARR-5561c7
Arrow F3 Particulate Air Filter for clean compressed air in paint spraying, instrumentation & pharmaceutical applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Arrow Pneumatics F3 1/2in Pipe Size Mid Flow Particulate Air Filter
$129.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics F3 1/2in Pipe Size Mid Flow Particulate Air Filter
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

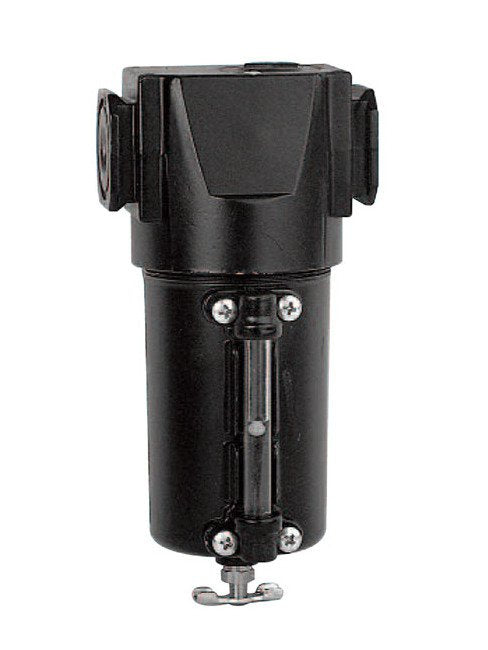

The Arrow Pneumatics F3 Particulate Air Filter is designed to efficiently remove harmful oil/water condensate, pipe scale, dirt, and rust from compressed air systems, safeguarding equipment and finished products. With a 40 micron sintered bronze element for depth filtration, high strength recleanable metal bowl, and manual 1/8” NPT twist drain, this filter ensures high efficiency and long element life. It offers a maximum flow of 160 scfm and operates within a temperature range of 40 to 160 ºF. Ideal for applications like paint spraying, instrumentation, and pharmaceuticals, this filter is a reliable solution for maintaining clean compressed air quality.
Product Specifications
Features 0
40 micron sintered bronze element offers depth filtration. High strength, recleanable10 oz. or 20 oz. black coated metal bowl with liquid level sightManual 1/8” NPT twist drainHigh Flow, low pressure drop
Kits Bowl Kits
Metal with sight - BKF47W, BKF48WMetal without sight - BKF47M, BKF48M
Kits Element Kits
40 micron - EK37, EK385 micron - EK37-5, EK38-53 micron absolute - EK37-3, EK38-3
Kits Kits
Internal Float Drain Kit - 5200
Kits Mounting Kit
Mounting kit - FBK7
Kits Repair Kit
Repair kit - RKF37, RKF38Replacement sight kit - WK57
Note 0
Important: Particulate filters only remove water in its liquid state. Water vapors will pass through a particulate filter and condense into liquid as the temperature in the air line drops. Liquid condensation may have a harmful effect on certain applications. We recommend installing an ARROW dryer for complete removal of liquid condensation from the system.
Option 0
Add suffix to part number in alpha and numeric order
Option Float Drain
An internal float rises as condensate accumulates in a filter bowl to activate the drain.F - Internal float drain - F374FW
Option Overnight Drains
An overnight drain operates when a compressed air system is shut down. It clears accumulated condensate from a filter bowl when pressure falls to 3 psig or less.K - Overnight drain - F374KW Twist to manually drain.M - Metal bowl without sight glass - F374M5 - 5 micron element - F374W53 - 3 micron absolute element - F374W3
Product Line Information 0

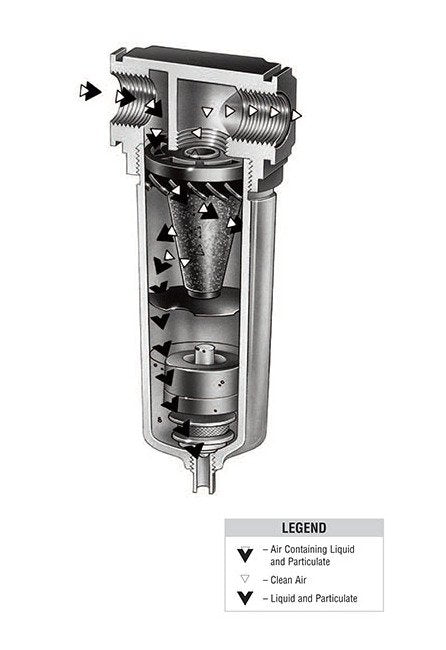

Each filter is equipped with a highly efficient baffling system for maximum bulk liquid and dirt particle removal. The Arrow heavy-duty, cleanable porous bronze element removes fine particles. Particle removal can be tailored to specific needs with either the 40 or 5 micron bronze element. An optional 3 micron absolute pleated fiber element is also offered for extra-fine particle removal.The Arrow 3 micron absolute element is a high efficiency filter element with solid particulate removal in the 90% efficiency range down to 0.28 microns. The Beta efficiency rating is 99.5%. The element is constructed of pleated cloth fibers and rib supports for strength. Both ends have urethane 50 durometer elastomer seals to insure particulate entrapment. The pleated fiber design gives this element 10 times the surface area of similar nominal rated elements. This increased surface area provides a long element life and the same pressure drop characteristics as our current 40 micron element. When used as a pre-filter to a coalescing filter, it will increase the life of the coalescing element by 4 to 6 times.
Specifications Baffle Material
Plastic
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
10 oz

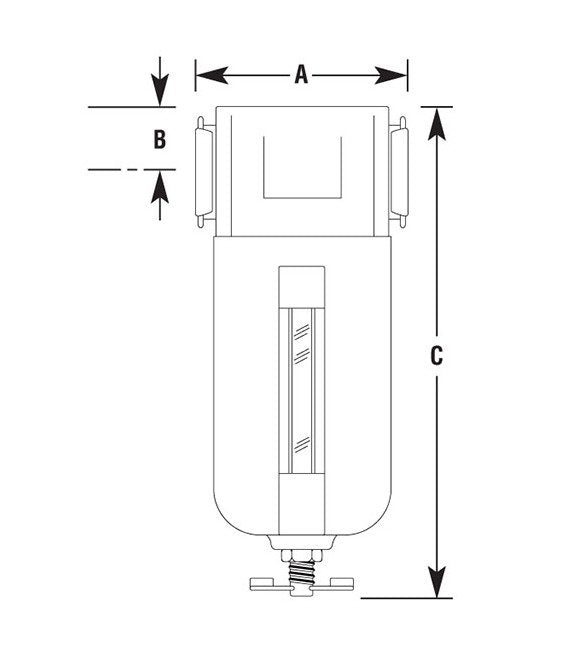

Specifications Dimension A
3-3/4 in
Specifications Dimension B
1-3/32 in
Specifications Dimension C
7-5/8 in
Specifications Elements
40 micron sintered bronze5 micron sintered bronze3 micron absolute pleated fiber
Specifications Internal Float Drain
Buna N Float
Specifications Maximum Flow
160 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Zinc, Black E Coated
Specifications Note For Internal Float Drain
Limits bowl temperature and pressure rating.
Specifications Note For Maximum Flow

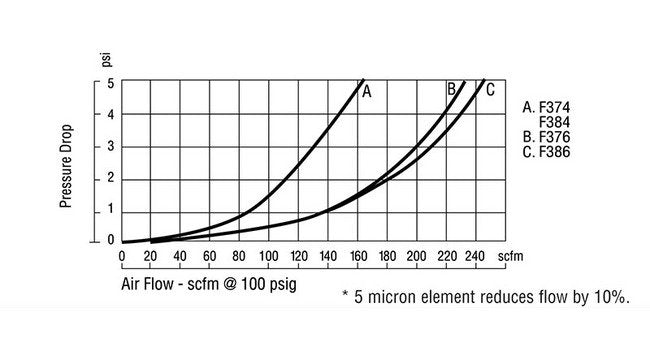

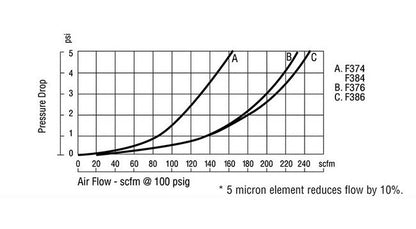

Flow scfm based on 5 psi Δp at 100 psig inlet.
Specifications Operating Pressure Range For Internal Float Drain
30 to 175 psig
Specifications Operating Temperature Range For Internal Float Dr
40 to 120 ºF
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 120 ºF
Specifications Pipe Size
1/2 in
Specifications Seals
Buna N
Specifications Vane Material
Plastic
Specifications Weight
2.7 lb
