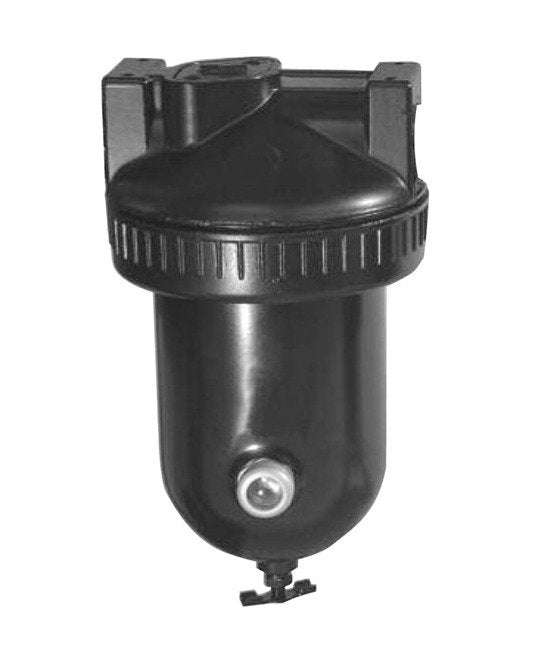

The Arrow Pneumatics F3 series high flow particulate air filter is designed to remove harmful contaminants from compressed air systems, safeguarding equipment and end products from corrosive damage. With a 40 micron sintered bronze element for depth filtration and a metal bowl with liquid level sight, this filter ensures high efficiency and long element life. Optional elements including 5 micron and 3 micron absolute pleated fiber cater to specific filtration needs, providing solid particulate removal at impressive efficiency ratings. Ideal for applications like paint spraying and pharmaceuticals, this filter offers exceptional performance and durability.
Product Specifications
Features 0
40 micron sintered bronze element offers depth filtration. High strength, recleanable.Metal bowl is standard with liquid level sightManual 1/8” NPT twist drain
Kits Bowl Kits
Metal with sight - BKF329WMetal without sight - BKF329M
Kits Element Kits
40 micron - EKF3295 micron - EKF329-53 micron absolute - EKF329-3
Kits Kits
Internal Float Drain - 5200
Kits Repair Kit
Repair kit - RKF329Replacement sight kit - WK35
Note 0
Important: Particulate filters only remove water in its liquid state. Water vapors will pass through a particulate filter and condense into liquid as the temperature in the air line drops. Liquid condensation may have a harmful effect on certain applications. We recommend installing an ARROW dryer for complete removal of liquid condensation from the system.
Option 0
Add suffix to part number in alpha and numeric orderD - Differential pressure gauge - F329-10DW
Option Float Drain
An internal float rises as condensate accumulates in a filter bowl to activate the drain.F - Internal float drain - F329-08FW
Option Overnight Drains
An overnight drain operates when a compressed air system is shut down. It clears accumulated condensate from a filter bowl when pressure falls to 3 psig or less.K - Overnight drain for metal bowl - F329-08KW Twist to manually drain5 - 5 micron element - F329-08W53 - 3 micron absolute element - F329-08W3For Metal Bowl without sight delete W
Product Line Information 0

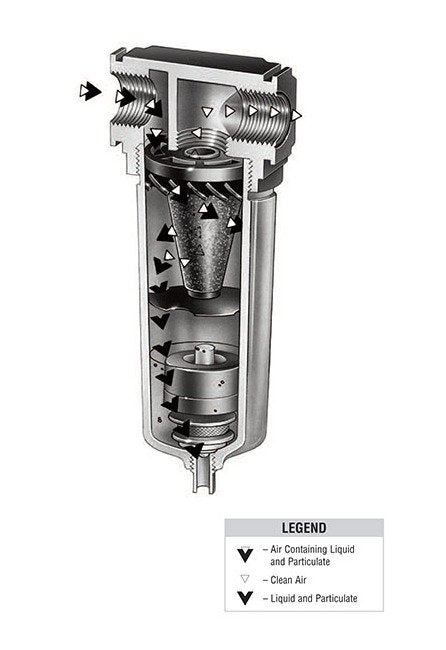

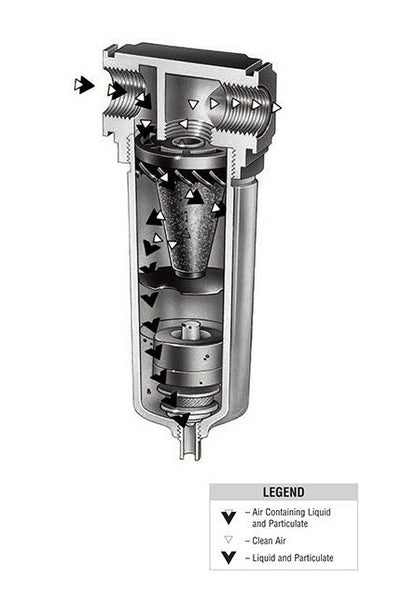

Each filter is equipped with a highly efficient baffling system for maximum bulk liquid and dirt particle removal. The Arrow heavy-duty, cleanable porous bronze element removes fine particles. Particle removal can be tailored to specific needs with either the 40 or 5 micron bronze element. An optional 3 micron absolute pleated fiber element is also offered for extra-fine particle removal.The Arrow 3 micron absolute element is a high efficiency filter element with solid particulate removal in the 90% efficiency range down to 0.28 microns. The Beta efficiency rating is 99.5%. The element is constructed of pleated cloth fibers and rib supports for strength. Both ends have urethane 50 durometer elastomer seals to insure particulate entrapment. The pleated fiber design gives this element 10 times the surface area of similar nominal rated elements. This increased surface area provides a long element life and the same pressure drop characteristics as our current 40 micron element. When used as a pre-filter to a coalescing filter, it will increase the life of the coalescing element by 4 to 6 times.
Specifications Baffle Material
Plastic
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
29 oz

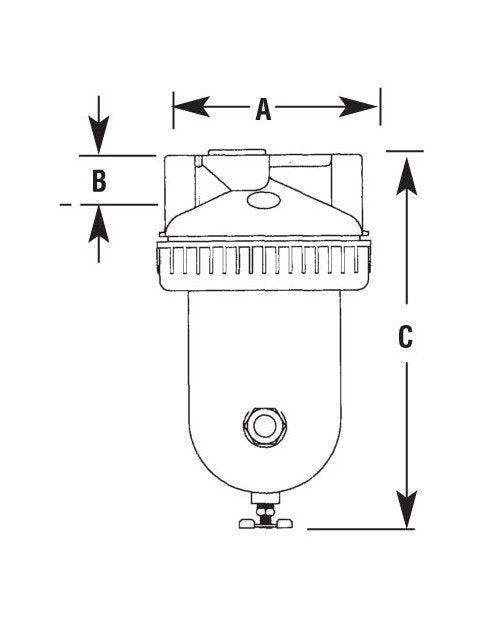

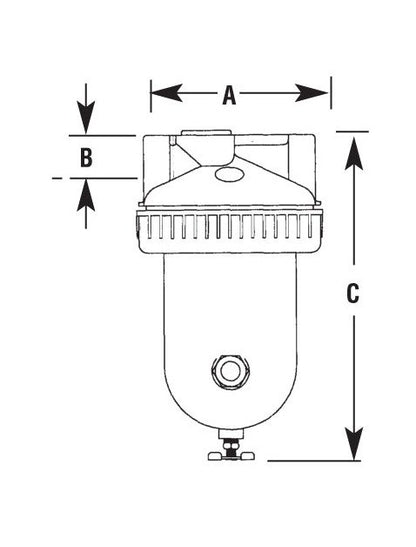

Specifications Dimension A
5-3/32 in
Specifications Dimension B
1-5/16 in
Specifications Dimension C
9-13/32 in
Specifications Elements
40 micron sintered bronze5 micron sintered bronze3 micron absolute pleated fiber
Specifications Internal Float Drain
Buna N Float
Specifications Maximum Flow
300 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Steel, Black E Coated
Specifications Metal Bowl Material With Sight
Steel, Black E Coated
Specifications Note For Maximum Flow

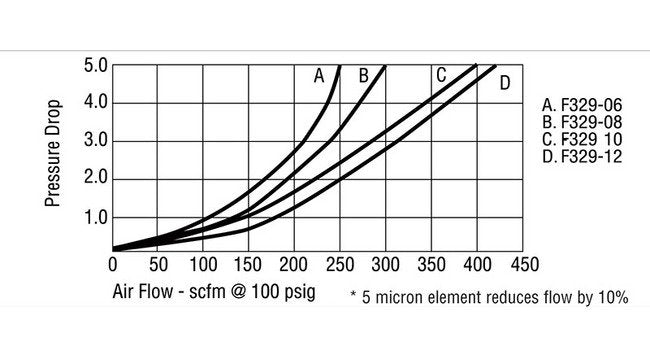

Flow scfm based on 5 psi Δp at 100 psig inlet.
Specifications Operating Pressure Range For Internal Float Drain
30 to 175 psig
Specifications Operating Temperature Range For Internal Float Dr
40 to 120 ºF
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 120 ºF
Specifications Pipe Size
1 in
Specifications Seals
Buna N
Specifications Vane Material
Aluminum
Specifications Weight
3.7 lb
