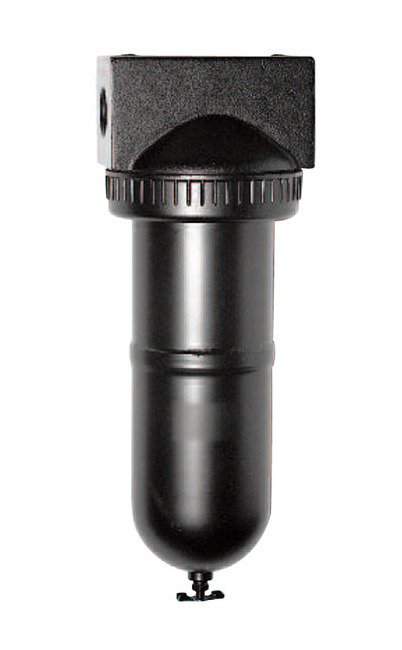

Arrow Pneumatics F3 High Flow Particulate Air Filter, 1-1/4 in
Arrow Pneumatics F3 High Flow Particulate Air Filter, 1-1/4 in
SKU:ARR-e66279
Keep compressed air systems clean and efficient with Arrow Pneumatics F3 High Flow Particulate Air Filter.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Arrow Pneumatics F3 High Flow Particulate Air Filter, 1-1/4 in
$189.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics F3 High Flow Particulate Air Filter, 1-1/4 in
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Arrow Pneumatics F3 High Flow Particulate Air Filter in 1-1/4 inch pipe size is a critical component for maintaining a clean compressed air system. Designed to remove harmful oil/water condensate, pipe scale, dirt, and rust, this filter ensures prolonged equipment life and product integrity. With a maximum flow of 500 scfm, a 40 micron pleated fiber element for depth filtration, and options for additional features like a differential pressure gauge or overnight drain, this filter excels in demanding applications such as paint spraying, instrumentation, and pharmaceuticals. Enhance efficiency, protect your assets, and safeguard your operations with Arrow's advanced filtration technology.
Product Specifications
Features 0
40 micron pleated fiber element offers depth filtration. High strength, recleanable.Metal bowl is standard1/8” NPT twist drain
Kits Bowl Kits
Metal with sight - BKF364WMetal without sight - BKF364
Kits Element Kits
40 micron - EKF3583 micron - EKF358-3
Kits Kits
Internal Float Drain - 5200
Kits Repair Kit
Repair kit - RKF508Replacement sight kit - WK35
Note 0
Important: Particulate filters only remove water in its liquid state. Water vapors will pass through a particulate filter and condense into liquid as the temperature in the air line drops. Liquid condensation may have a harmful effect on certain applications. We recommend installing an ARROW dryer for complete removal of liquid condensation from the system.
Option 0
Add suffix to part number in alpha and numeric orderD - Differential pressure gauge - F358HF-08D
Option Float Drain
An internal float rises as condensate accumulates in a filter bowl to activate the drain.F - Internal float drain - F358HF-08F
Option Overnight Drains
An overnight drain operates when a compressed air system is shut down. It clears accumulated condensate from a filter bowl when pressure falls to 3 psig or less.K - Overnight drain - F358HF-08K Twist to manually drain.W - Metal bowl with sight glass - F358HF-08W-3 - 3 micron absolute element - F358HF-08-3
Product Line Information 0

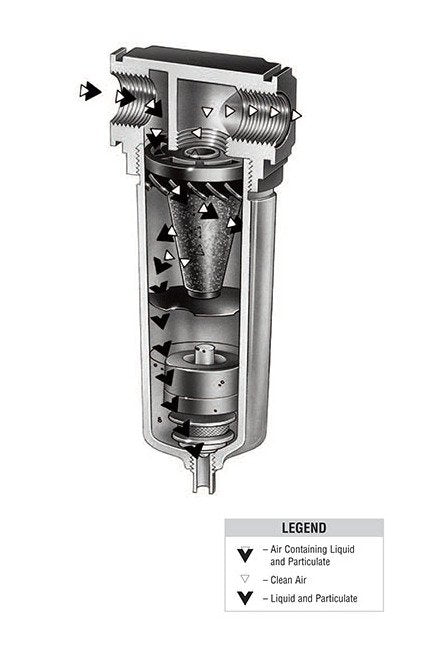

Each filter is equipped with a highly efficient baffling system for maximum bulk liquid and dirt particle removal. The Arrow heavy-duty, cleanable porous bronze element removes fine particles. Particle removal can be tailored to specific needs with either the 40 or 5 micron bronze element. An optional 3 micron absolute pleated fiber element is also offered for extra-fine particle removal.The Arrow 3 micron absolute element is a high efficiency filter element with solid particulate removal in the 90% efficiency range down to 0.28 microns. The Beta efficiency rating is 99.5%. The element is constructed of pleated cloth fibers and rib supports for strength. Both ends have urethane 50 durometer elastomer seals to insure particulate entrapment. The pleated fiber design gives this element 10 times the surface area of similar nominal rated elements. This increased surface area provides a long element life and the same pressure drop characteristics as our current 40 micron element. When used as a pre-filter to a coalescing filter, it will increase the life of the coalescing element by 4 to 6 times.
Specifications Baffle Material
Plastic
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
50 oz

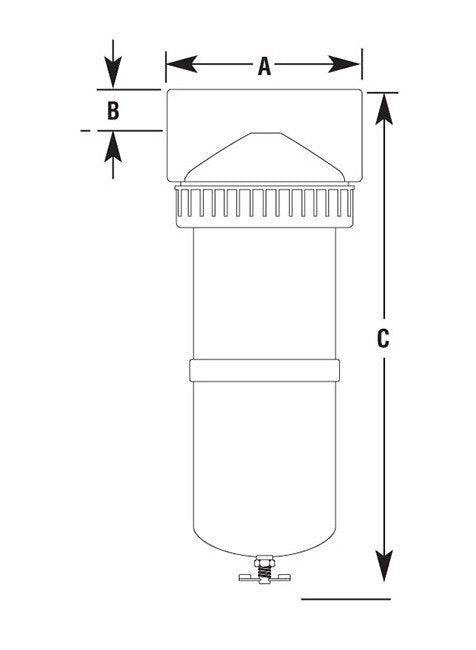

Specifications Dimension A
5-1/4 in
Specifications Dimension B
1-1/2 in
Specifications Dimension C
14-1/2 in
Specifications Elements
40 micron pleated fiber5 micron pleated fiber3 micron absolute pleated fiber
Specifications Internal Float Drain
Buna N Float
Specifications Maximum Flow
500 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Steel, Black E Coated
Specifications Metal Bowl Material With Sight
Steel, Black E Coated

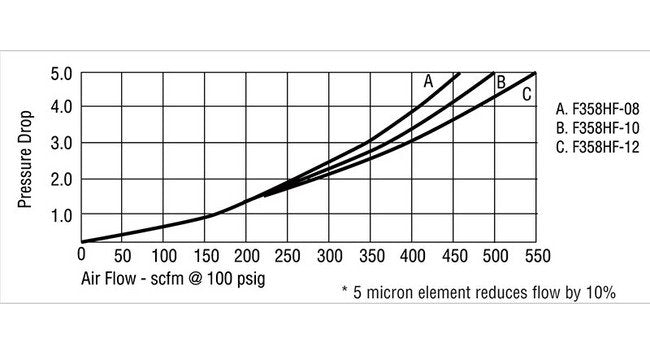

Specifications Note For Maximum Flow
Flow scfm based on 5 psi Δp at 100 psig inlet.
Specifications Operating Pressure Range For Internal Float Drain
30 to 175 psig
Specifications Operating Temperature Range For Internal Float Dr
40 to 120 ºF
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 120 ºF
Specifications Pipe Size
1-1/4 in
Specifications Seals
Buna N
Specifications Vane Material
Aluminum
Specifications Weight
9 lb
