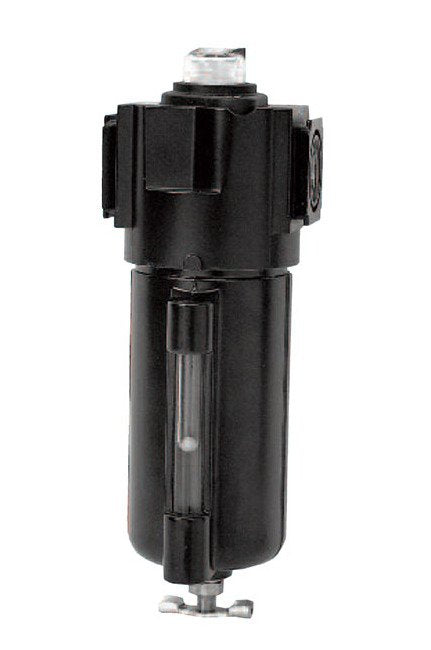

Arrow Pneumatics F4 1/4 in Tri-Star Coalescing Air Filter
Arrow Pneumatics F4 1/4 in Tri-Star Coalescing Air Filter
SKU:ARR-0d620c
Efficient 0.03 micron coalescing filter for industrial use, ensures clean air output with superior filtration.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Arrow Pneumatics F4 1/4 in Tri-Star Coalescing Air Filter
$99.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics F4 1/4 in Tri-Star Coalescing Air Filter
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Arrow Pneumatics F4 1/4 in Tri-Star Coalescing Air Filter offers superior filtration efficiency, with a 0.03 micron borosilicate glass fiber element that ensures 99.97% D.O.P efficiency. Ideal for industrial applications, this filter effectively removes oil aerosols and sub-micron particles, ensuring clean air output. The black-coated aluminum housing, pop-up indicator for maintenance alerts, and internal float drain enhance usability and performance. Compliant with strict industry standards, this coalescing filter provides critical protection for your air systems.
Product Specifications
Features 0
0.03 micron fiber elementPop-up indicator indicates abnormal condition such as plugged element or excessive flow. Critical protection requires changing element at regular intervals.Low pressure drop6 oz. black coated metal bowl with liquid level sightBlack coated aluminum housingManual 1/8" NPT twist drainIn line or modular installation
Kits Bowl Kits
Metal without sight - BKF45MMetal with sight - BKF45W
Kits Element Kits
0.03 micron 2-pack - EK550.01 micron 2-pack - EK55A
Kits Kits
Internal Float Drain Kit - 5200
Kits Mounting Kit
Mounting kit - FBK5
Kits Repair Kit
Repair kit - RKF45Replacement sight kit - WK45Indicator Pop-up kit - DPK-05
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha orderA - 0.01 micron element - F552AW
Option Float Drain
F - Internal float drain - F552FW
Option Overnight Drains
When a compressed air system is shut down, an overnight drain clears accumulated condensate from a filter bowl when the pressure falls to 3 psig or less.K - Overnight drain for metal bowl - F552KW Twist to manually drain.For Metal Bowl without sight delete W
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Baffle Material
Plastic
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
6 oz
Specifications Brand
Arrow Pneumatics

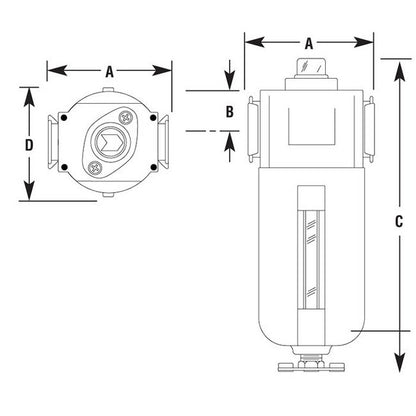

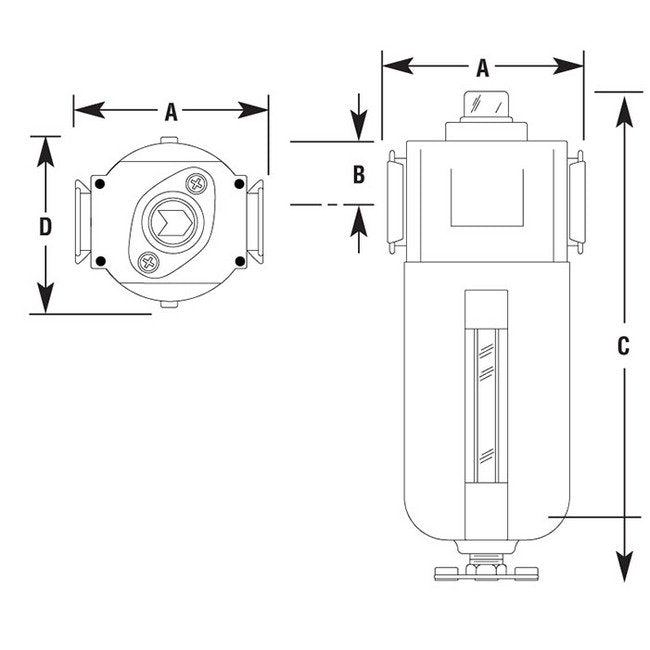

Specifications Dimension A
2-3/4 in
Specifications Dimension B
3/4 in
Specifications Dimension C
7-5/8 in
Specifications Dimension D
2-1/2 in
Specifications Elements
0.03 micron borosilicate glass fiber D.O.P. Efficiency: 99.97%, Particle size removal, Remaining oil content by wt.: 0.015 PPM0.01 micron borosilicate glass fiber D.O.P. Efficiency: 99.999%, Particle removal size, Remaining oil content by wt.: 0.0005
Specifications Internal Float Drain
Brass | Buna N Seal | Metal | Plastic
Specifications Maximum Flow
24 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Zinc, Black E Coated (Nickel Plated Zinc)
Specifications Note For Internal Float Drain
Limits bowl temperature and pressure rating.

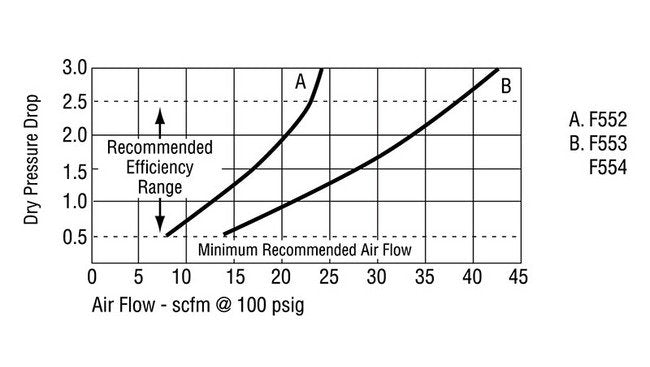

Specifications Note For Maximum Flow
Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Pressure Range For Internal Float Drain
40 to 120 ºF
Specifications Operating Temperature Range For Internal Float Dr
30 to 175 psig
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
1/4 in
Specifications Seals
Buna N
Specifications Weight
1.7 lb
