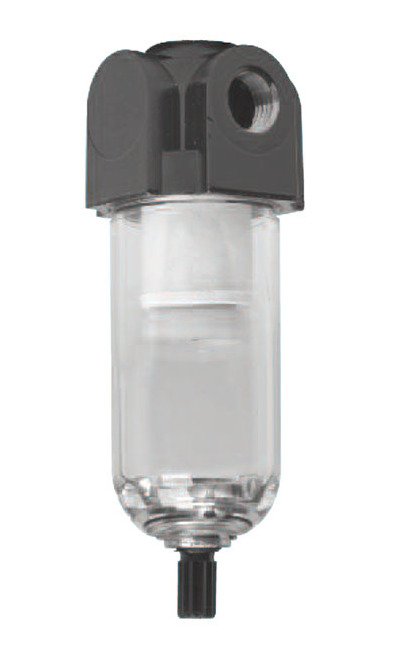

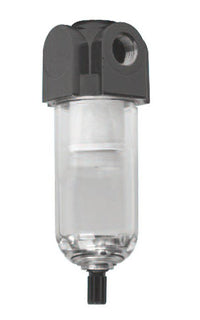

Arrow Pneumatics F4/F5/F6 1/4" Mini Coalescing Air Filter
Arrow Pneumatics F4/F5/F6 1/4" Mini Coalescing Air Filter
SKU:ARR-20c83b
Achieve pristine air quality with Arrow Pneumatics F4/F5/F6 Mini Coalescing Air Filter. Ideal for clean rooms and critical instrumentation.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Arrow Pneumatics F4/F5/F6 1/4" Mini Coalescing Air Filter
$59.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics F4/F5/F6 1/4" Mini Coalescing Air Filter
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Arrow Pneumatics F4/F5/F6 1/4" Miniature Coalescing Air Filter offers unparalleled air purity by efficiently removing oil aerosols and sub micron particles. Featuring a 0.03 micron borosilicate glass fiber element with 99.97% efficiency, this filter ensures exceptional performance. With a maximum flow rate of 15 scfm and a lightweight design of 0.5 lb, this filter is ideal for applications in sensitive environments such as clean rooms, paint spraying equipment, and food industry. Compliant with industry standards, this filter guarantees superior air quality and system protection.
Product Specifications
Features 0
0.03 micron fiber element1 oz. polycarbonate bowlManual 1/8" NPT twist drain
Kits Bowl Kits
1 oz. poly. bowl - BKF3001 oz. poly. Bowl with piston drain - BKF300J1 oz. metal bowl - BKF300M1 oz. metal bowl with overnight drain - BKF300KM
Kits Element Kits
0.03 micron 2-pack - EKF5000.01 micron 2-pack - EKF500A
Kits Kits
Piston Drain - PKF300Overnight Metal (K) - CKFK
Kits Mounting Kit
Mounting kit - FBK3
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha orderA - 0.01 micron element - F500-02A
Option Overnight Drains
When a compressed air system is shut down, an overnight drain clears accumulated condensate from a filter bowl when the pressure falls to 3 psig or less.J - Overnight drain for polycarbonate bowl - F500-02J Push to manually drain.K - Overnight drain for metal bowl - F500-02KM Twist to manually drain.M - Metal bowl - F500-02MZ - Piston drain - F500-02Z
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
1 oz
Specifications Brand
Arrow Pneumatics

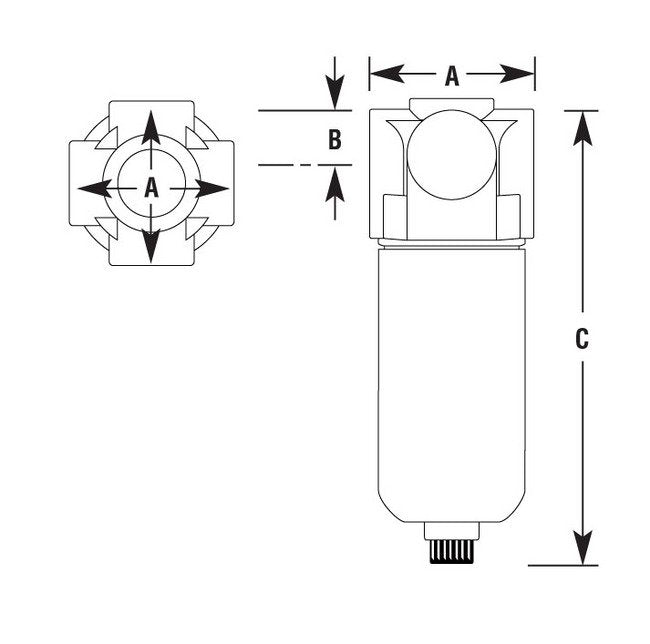

Specifications Dimension A
1-1/2 in
Specifications Dimension B
1/2 in
Specifications Dimension C
4-1/2 in
Specifications Elements

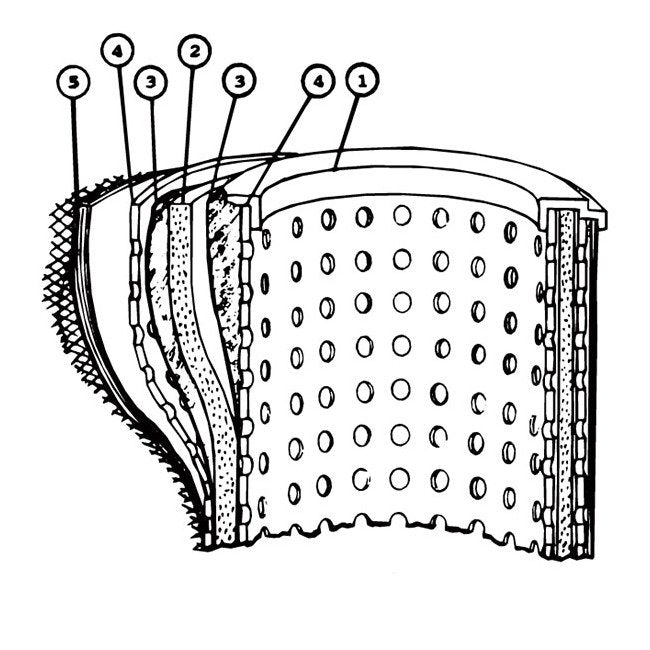

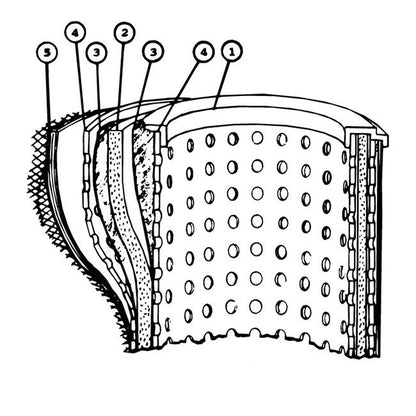

0.03 micron borosilicate glass fiber D.O.P. Efficiency: 99.97%, Particle size removal, Remaining oil content by wt.: 0.015 PPM0.01 micron borosilicate glass fiber D.O.P. Efficiency: 99.999%, Particle removal size, Remaining oil content by wt.: 0.0005
Specifications Maximum Flow
15 scfm
Specifications Maximum Pressure For Polycarbonate Bowl
150 psi
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Metal Bowl Material
Black E Coated Aluminum
Specifications Note For Maximum Flow

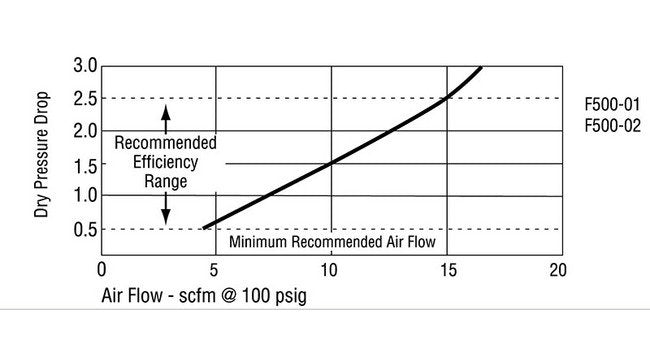

Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Note For Piston Drain
Z option is differential drain which opens and ejects water only when a differential pressure is created at the start of air flow. The piston drain lifts up (approx. 1 second) and closes, it will not operate again until the flow stops, then starts back up
Specifications Operating Pressure Range For Piston Drain
30 to 175 psig
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Piston Drain
40 to 120 ºF
Specifications Operating Temperature Range For Polycarbonate Bow
40 to 125 ºF
Specifications Pipe Size
1/4 in
Specifications Polycarbonate Bowl
Maximum pressure 150 psig | Operating temperature range 40 to 125 ºF
Specifications Weight
0.5 lb
