Arrow Pneumatics F4/F5/F6 Coalescing Air Filter - 1/2 in Pipe Size, Tri-Star Oil Removing
Arrow Pneumatics F4/F5/F6 Coalescing Air Filter - 1/2 in Pipe Size, Tri-Star Oil Removing
SKU:ARR-d615b0
Efficiently remove oil aerosols and sub-micron particles with Arrow Pneumatics F4/F5/F6 Coalescing Air Filter - Ideal for critical applications
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Arrow Pneumatics F4/F5/F6 Coalescing Air Filter - 1/2 in Pipe Size, Tri-Star Oil Removing
$159.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics F4/F5/F6 Coalescing Air Filter - 1/2 in Pipe Size, Tri-Star Oil Removing
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance air quality and prevent oil contamination with the Arrow Pneumatics F4/F5/F6 Coalescing Air Filter. Designed with a 0.9 micron borosilicate glass fiber element, this filter efficiently removes oil aerosols and sub-micron particles, ensuring clean air for critical applications. The filter features a pop-up indicator for maintenance alerts, a 6 oz. black coated metal bowl with a liquid level sight, and manual 1/8" NPT twist drain for easy maintenance. Compliant with industry standards, this filter provides long-term filtration performance and protection for air systems.
Product Specifications
Features 0
0.9 micron elementLow pressure dropLong element lifePop-up indicator indicates abnormal condition such as plugged element or excessive flow. Critical protection requires changing element at regular intervals.6 oz. black coated metal bowl with liquid level sightManual 1/8" NPT twist drainIn-line or modular installation
Kits Bowl Kits
Metal bowl without sight - BKF45MMetal bowl with sight - BKF45W
Kits Element Kits
0.9 micron 2-pack - EK45
Kits Kits
Internal Float Drain - 5200
Kits Mounting Kit
Mounting kit - FBK5
Kits Repair Kit
Repair kit - RKF45Replacement sight kit - WK45Indicator Pop-up kit - DPK-05
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha order
Option Float Drain
F - Internal float drain - F452FW
Option Overnight Drains
Overnight drain Twist to manually drain - F474KWMetal bowl without sight glass - F474M
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Baffle Material
Plastic
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
6 oz
Specifications Brand
Arrow Pneumatics

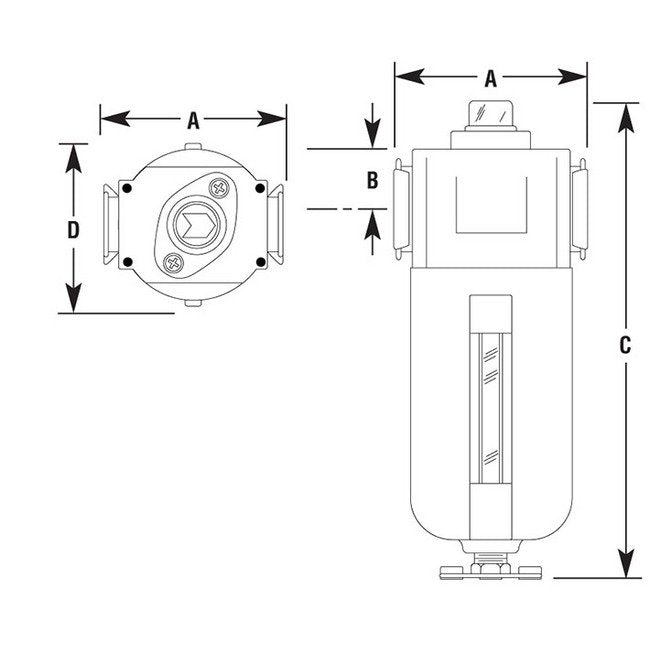

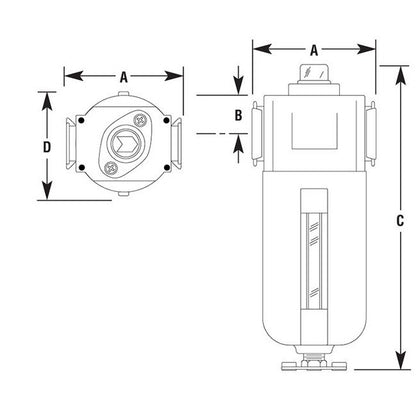

Specifications Dimension A
2-3/4 in
Specifications Dimension B
3/4 in
Specifications Dimension C
7-5/8 in
Specifications Dimension D
2-1/2 in
Specifications Elements
0.9 micron borosilicate glass fiber D.O.P. Efficiency: 95%, Particle size removal, Remaining oil content by wt.: 2.5 PPM
Specifications Maximum Flow
53 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Zinc, Black E Coated
Specifications Note For Internal Float Drain
Limits bowl temperature and pressure rating.

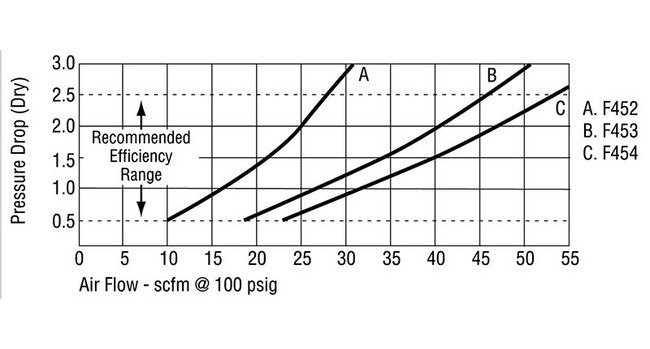

Specifications Note For Maximum Flow
Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Pressure Range For Internal Float Drain
40 to 120 ºF
Specifications Operating Temperature Range For Internal Float Dr
30 to 175 psig
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
1/2 in
Specifications Seals
Buna N
Specifications Weight
1.7 lb
