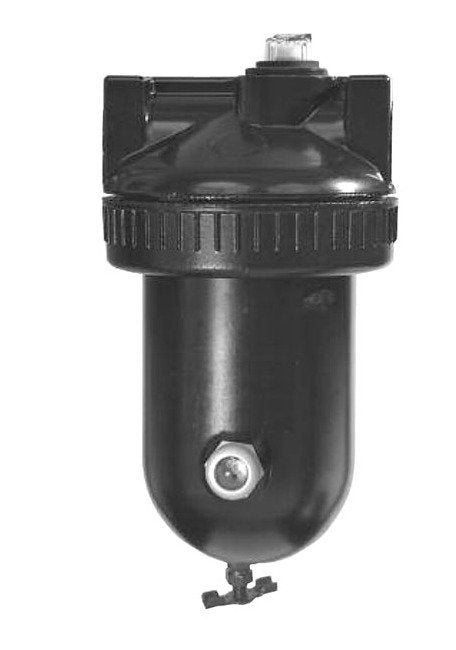

The Arrow Pneumatics F5 High Flow Coalescing Air Filter is designed for precise filtration of oil aerosols and sub-micron particles, making it ideal for critical instrumentation, paint spraying equipment, sophisticated air systems, and more. With a maximum flow of 200 scfm and suitable for use in a wide temperature range from 40 to 160 ºF, this filter guarantees maximum efficiency and performance. Its 0.01 micron borosilicate glass fiber elements ensure exceptional filtration, maintaining oil content as low as 0.0005 PPM. Compliant with industry standards, the F5 filter ensures clean, high-quality compressed air for various applications.
Product Specifications
Features 0
0.03 micron fiber elementManual 1/8" NPT twist drainLow pressure drop
Kits Bowl Kits
Metal with sight F505 - BKF329WMetal without sight F505 - BKF329MMetal with sight F508 - BKF364W Metal without sight F508 - BKF364M
Kits Element Kits
0.03 micron 505 - EKF5050.01 micron 505 - EKF505A0.03 micron 508 - EKF5080.01 micron 508 - EKF508A
Kits Kits
Internal Float Drain Kit - 5200Overnight Drain Kit (K) - CKFKPop-Up Indicator Kit - DPK-05
Kits Repair Kit
Repair kit 505 - RKF505Repair kit 508 - RKF508Replacement sight kit - WK35
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha and numeric orderA - 0.01 micron element - F505-06AD - Differential pressure gauge - F508-10D
Option Float Drain
F - Internal float drain - F505-06FW
Option Overnight Drains
When a compressed air system is shut down, an overnight drain clears accumulated condensate from a filter bowl when the pressure falls to 3 psig or less.K - Overnight drain for metal bowl - F508-08KW Twist to manually drain.For Metal Bowl without sight delete W
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Baffle Material
Aluminum
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
60 oz
Specifications Brand
Arrow Pneumatics

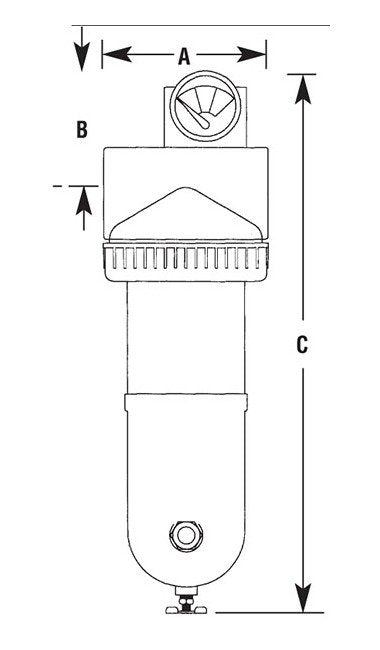

Specifications Dimension A
5-5/32 in
Specifications Dimension B
3-3/4 in
Specifications Dimension C
16-3/4 in
Specifications Elements

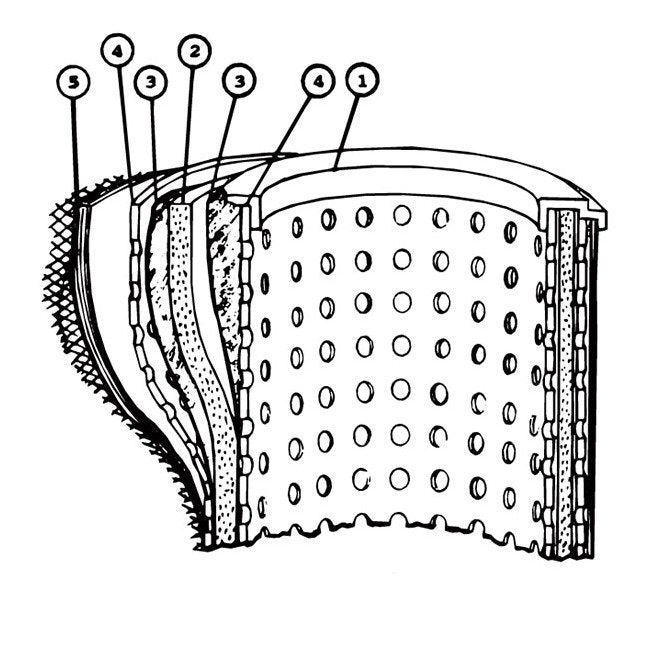

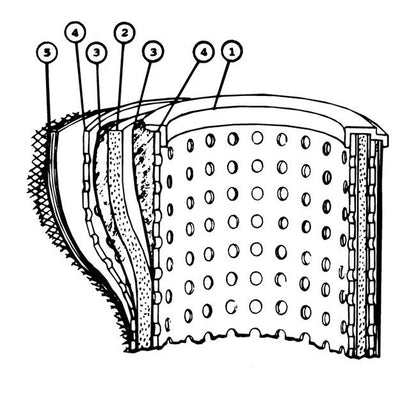

0.03 micron borosilicate glass fiber D.O.P. Efficiency: 99.97%, Particle size removal, Remaining oil content by wt.: 0.015 PPM0.01 micron borosilicate glass fiber D.O.P. Efficiency: 99.999%, Particle removal size, Remaining oil content by wt.: 0.0005
Specifications Internal Float Drain
Buna N Float
Specifications Maximum Flow
200 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Zinc, Black E Coated
Specifications Note For Internal Float Drain
Limits bowl temperature and pressure rating.
Specifications Note For Maximum Flow

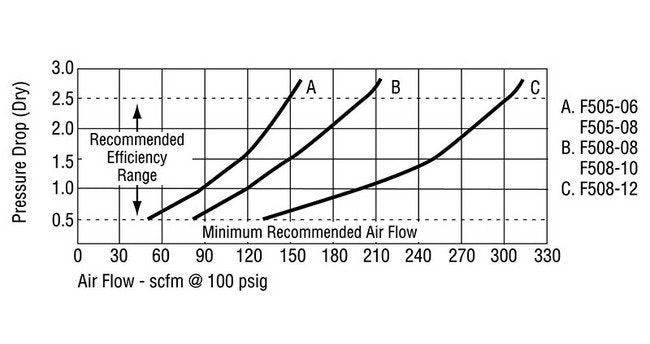

Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Pressure Range For Internal Float Drain
40 to 120 ºF
Specifications Operating Temperature Range For Internal Float Dr
30 to 175 psig
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
1-1/4 in
Specifications Seals
Buna N
Specifications Weight
6.3 lb
