Arrow Pneumatics F5 Coalescing Air Filter 3/4" (in) Oil Removing Filter
Arrow Pneumatics F5 Coalescing Air Filter 3/4" (in) Oil Removing Filter
SKU:ARR-3e9db1
Experience top-tier oil aerosol and particle filtration with Arrow Pneumatics F5 Coalescing Air Filter.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Arrow Pneumatics F5 Coalescing Air Filter 3/4" (in) Oil Removing Filter
$129.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics F5 Coalescing Air Filter 3/4" (in) Oil Removing Filter
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

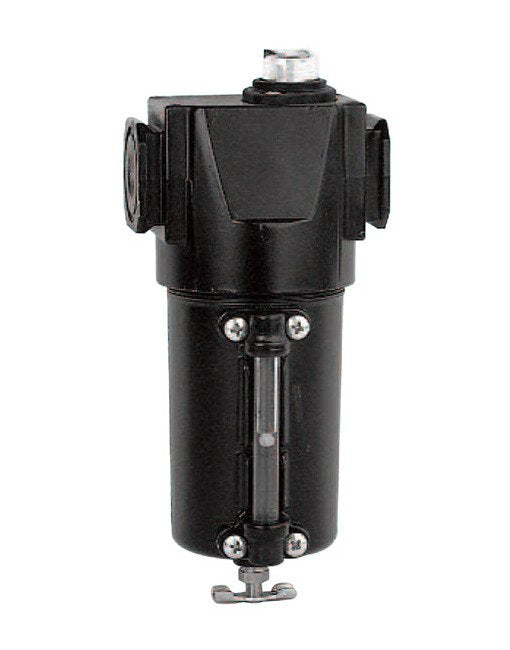

The Arrow Pneumatics F5 Coalescing Air Filter is a high-performance solution for removing oil aerosols and sub-micron particles. With its 0.01 micron grade 'A' element, this filter ensures exceptional filtration suitable for critical instrumentation, paint spraying equipment, and more. Compliant with industrial standards, the F5 filter offers reliable and efficient oil removal, making it perfect for applications where air quality is crucial.
Product Specifications
Features 0
0.9 micron elementLow pressure dropLong element lifePop-up indicator indicates abnormal condition such as plugged element or excessive flow. Critical protection requires changing element at regular intervals.10 oz. or 20 oz black coated metal bowl with liquid level sightManual 1/8" NPT twist drain
Kits Bowl Kits
10 oz. with sight - BKF47W10 oz. without sight - BKF47M20 oz. with sight - BKF48W20 oz. without sight - BKF48M
Kits Element Kits
0.9 micron - EK47, EK48
Kits Kits
Internal Float Drain - 5200
Kits Mounting Kit
Mounting kit - FBK7
Kits Repair Kit
Repair kit - RKF47, RKF48Replacement sight kit - WK57Indicator Pop-up kit - DPK-05
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha order
Option Float Drain
F - Internal float drain - F474FW
Option Overnight Drains
An overnight drain operates when a compressed air system is shut down. It clears accumulated condensate from a filter bowl when pressure falls to 3 psig or less.K - Overnight drain - F474KW Twist to manually drain.M - Metal bowl without sight glass - F474M
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Baffle Material
Plastic
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
10 oz
Specifications Brand
Arrow Pneumatics

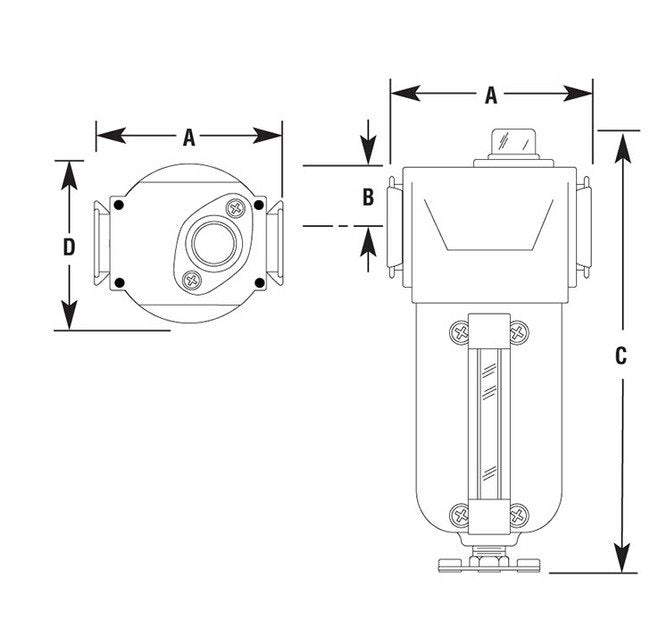

Specifications Dimension A
3-3/4 in
Specifications Dimension B
1-1/8 in
Specifications Dimension C
8-1/4 in
Specifications Dimension D
3 in
Specifications Elements
0.9 micron borosilicate glass fiber D.O.P. Efficiency: 95%, Particle size removal, Remaining oil content by wt.: 2.5 PPM
Specifications Maximum Flow
98 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Zinc, Black E Coated
Specifications Note For Internal Float Drain
Limits bowl temperature and pressure rating.
Specifications Note For Maximum Flow

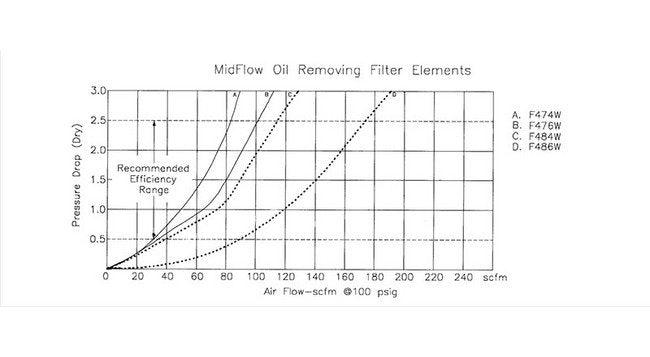

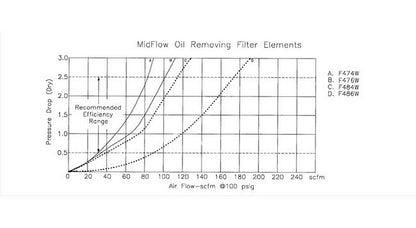

Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Pressure Range For Internal Float Drain
40 to 120 ºF
Specifications Operating Temperature Range For Internal Float Dr
30 to 175 psig
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
3/4 in
Specifications Seals
Buna N
Specifications Weight
2.7 lb
