Arrow Pneumatics F6 Adsorber Air Filter - 1/2 Inch

Arrow Pneumatics F6 Adsorber Air Filter - 1/2 Inch

SKU:ARR-c0a2e8

Ensure oil-free, pure air with Arrow Pneumatics F6 Adsorber Air Filter - ideal for critical industrial applications.

Regular price $149.99
Regular price Sale price $149.99
Sale

Initiate Order

Arrow Pneumatics F6 Adsorber Air Filter - 1/2 Inch

Arrow Pneumatics F6 Adsorber Air Filter - 1/2 Inch

$149.99

Quantity: 1

Claim Your Seller Account

Arrow Pneumatics F6 Adsorber Air Filter - 1/2 Inch

Arrow Pneumatics F6 Adsorber Air Filter - 1/2 Inch

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

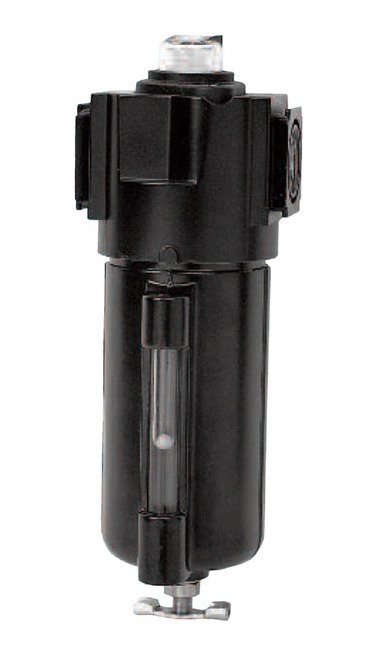

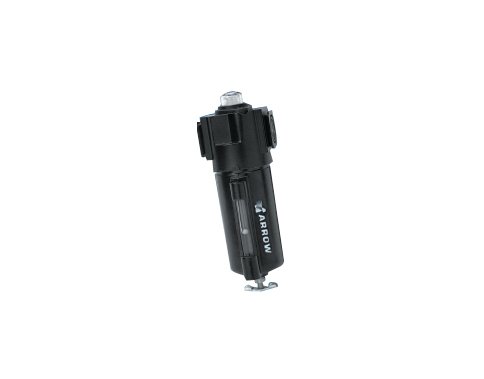

The Arrow Pneumatics F6 Adsorber Air Filter is a critical component designed for applications intolerant of oil vapors. With a maximum flow of 37 scfm and a 6 oz black coated metal bowl, this filter protects end processes from gaseous oil contamination, removes offensive odors, and ensures oil concentrations as low as 0.01 PPM. Its coalescing properties unite aerosols to form droplets that are efficiently drained away, guaranteeing exceptional air purification for food plants, instrumentation, and pharmaceutical settings. Trust in this filter for high-filtration needs and compliance with industry standards.

Product Specifications

Features 0
Protects end processes from gaseous oil contamination and rids compressed air of offensive oily odorsRemoves hydrocarbons for use in analytical instrumentsLow pressure dropPop-up indicator indicates abnormal condition such as plugged element or excessive flow. Critical protection requires changing element at regular intervals.6 oz. black coated metal bowl with liquid level sightBlack coated aluminum housingManual 1/8" NPT twist drainIn-line or modular installation
Kits Bowl Kits
Metal bowl without sight - BKF45MMetal bowl with sight - BKF45W
Kits Element Kits
Charcoal wrapped 2-pack - EK65 Clear net no color
Kits Mounting Kit
Mounting kit - FBK5
Kits Repair Kit
Repair kit - RKF45Replacement sight kit - WK45Indicator Pop-up kit - DPK-05
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
For Metal Bowl without sight delete W
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Applications
Food Plants | Instrumentation | Pharmaceutical
Specifications Baffle Material
Plastic
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
6 oz
Specifications Brand
Arrow Pneumatics

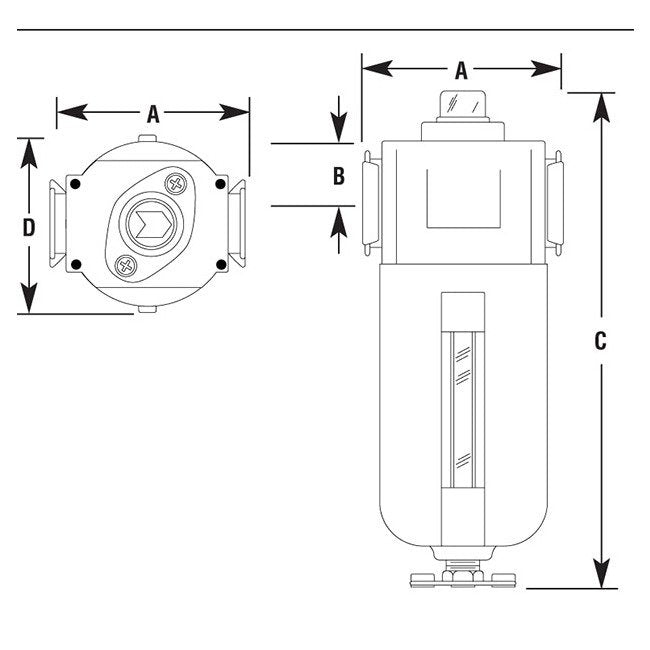

Specifications Dimension A
2-3/4 in
Specifications Dimension B
3/4 in
Specifications Dimension C
7-5/8 in
Specifications Dimension D
2-1/2 in
Specifications Elements

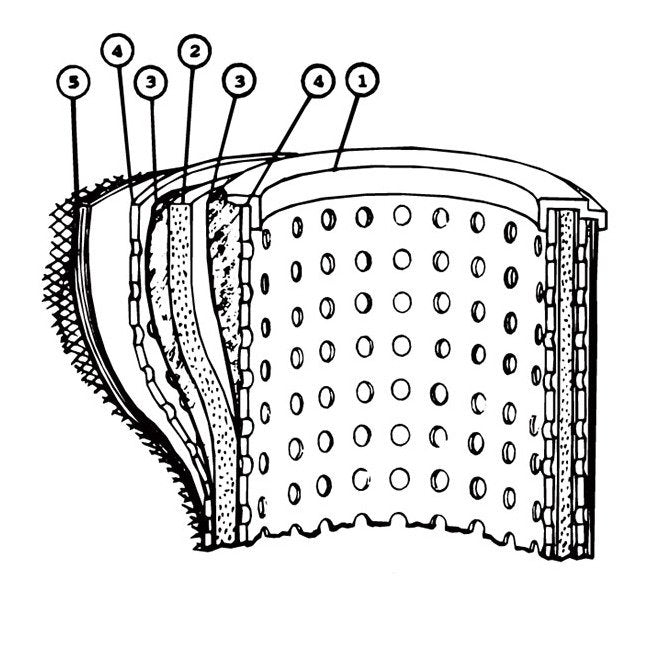

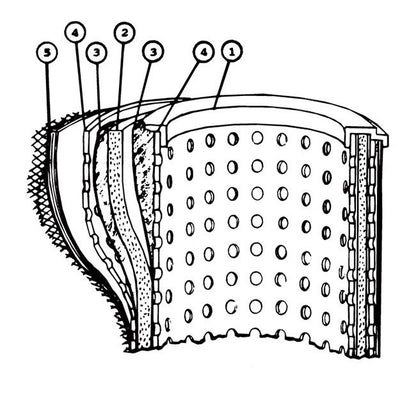

Multi-wrapped layers of impregnated activated charcoal particles to increase purification qualities. If the compressed air has been prepared by a suitable refrigerated dryer and F5A Coalescer filter, the F6 Absorber will insure oil concentrations of 0.001
Specifications Maximum Flow
37 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Zinc, Black E Coated

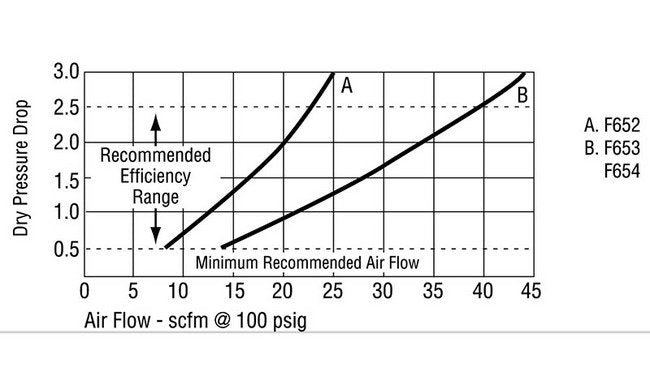

Specifications Note For Maximum Flow
Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
1/2 in
Specifications Seals
Buna N
Specifications Weight
1.7 lb
